Pepperl+Fuchs
AS-i

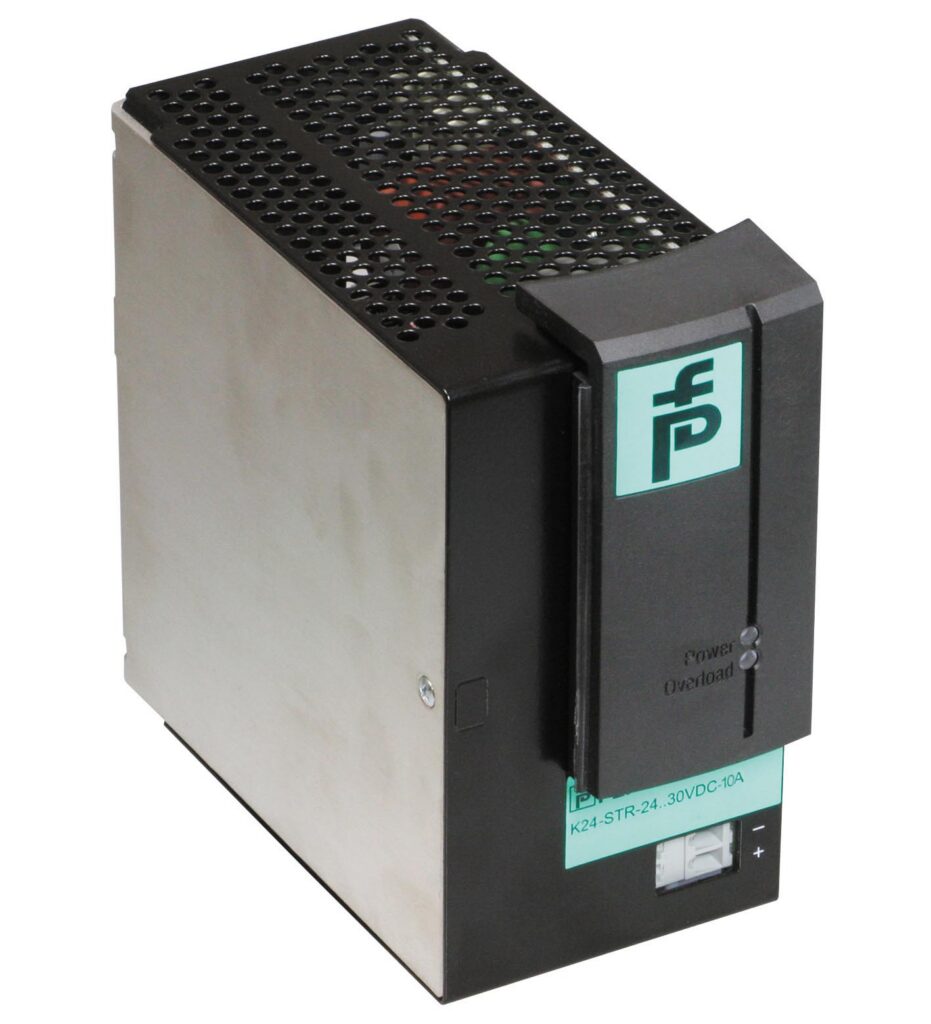

K24-STR-24..30VDC-10A
| UL File Number | E223176 |
|---|---|
| LED Overload | kırmızı LED · lights up for overload, flashes for hiccup mode |
| LED PWR | LED yeşil |
| Potentiometer | Top: Output current limitation (covered by a dummy plug) · Bottom: Output voltage adjustment |
| Fusing | 6.3 AT |
Power supply
- 8 … 10 A output load
- 230/115 V AC supply voltage
- Sustained short-circuit proof, overload-proof and open-circuit proof
- 24 … 30 V DC output voltage, can be regulated
- LED operating display
- LED output overload indicator
- SELV
- Suitable for AS-Interface power supply in gateway-integrated data decoupling
Power supply, 24 to 30 V DC, 10 A
K24-STR-24..30VDC-10A
| UL File Number | E223176 |
|---|---|
| LED Overload | kırmızı LED · lights up for overload, flashes for hiccup mode |
| LED PWR | LED yeşil |
| Potentiometer | Top: Output current limitation (covered by a dummy plug) · Bottom: Output voltage adjustment |
| Fusing | 6.3 AT |
| Capacity factor | yak. 0.6 (Depending on input voltage) |
| Rated Çalışma gerilimi | 115/230 V AC (for 115 V range, jumper) · Range: 93 to 132 V AC/187 to 265 V AC |
| Rated Çalışma akımı | 4.0 A (115 V) · 1.9 A (230 V) |
| Supply frequency | 47 ... 63 Hz |
| Efficiency | yak. 89 % |
| Current limit | yak. 12 A |
| Voltage | 30 V ± 1 % · Adjustment range 22.5 ... 29.5 V DC |
| Current | 0 ... 10 A |
| Directive 2014/30/EU | EN 55011, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2 class A, EN 61000-3-3, EN 61010-1 |
| Directive 2014/35/EU | EN 61010-1:2010 |
| Koruma sınıfı | IEC 60529:2001 |
| Electromagnetic compatibility | EN 55011, EN 61000-6-1, EN 61000-6-2 |
| Standartlar | Harmonic waves: EN 61000-3-2 Class A · Interference suppression: EN 55022, EN 55011 Class B · Electrostatic discharge (ESD): IEC 61000-4-2 (8 k V contact discharge, 15 k V air discharge) · Electromagnetic fields: IEC 61000-4-3 (10 V/m) · Burst: IEC 61000-4-4 (4 k V input, 2 k V output/capacitively coupled) · Surge: IEC 61000-4-5 (4 k V asymmetrical, 4 k V symmetrical) · Conducted interference: IEC 61000-4-6 (10 V, 150 k Hz to 80 MHz) |
| Ortam sıcaklığı | -10 ... 70 °C (14 ... 158 °F) with free convection |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Protection class | I, Protective conductor Bağlantı necessary |
| Bağlantı | Bağlantı terminals, max. İletken kesiti · 0.5 to 2.5 mm2 · Stripping Uzunluk 5 to 6 mm |
| Ağırlık | yak. 1200 g |
| Yükseklik | 132.5 mm |
| Genişlik | 70 mm |
| Uzunluk | 140 mm |
| Mounting | DIN mounting rail |
