Pepperl+Fuchs
AS-i

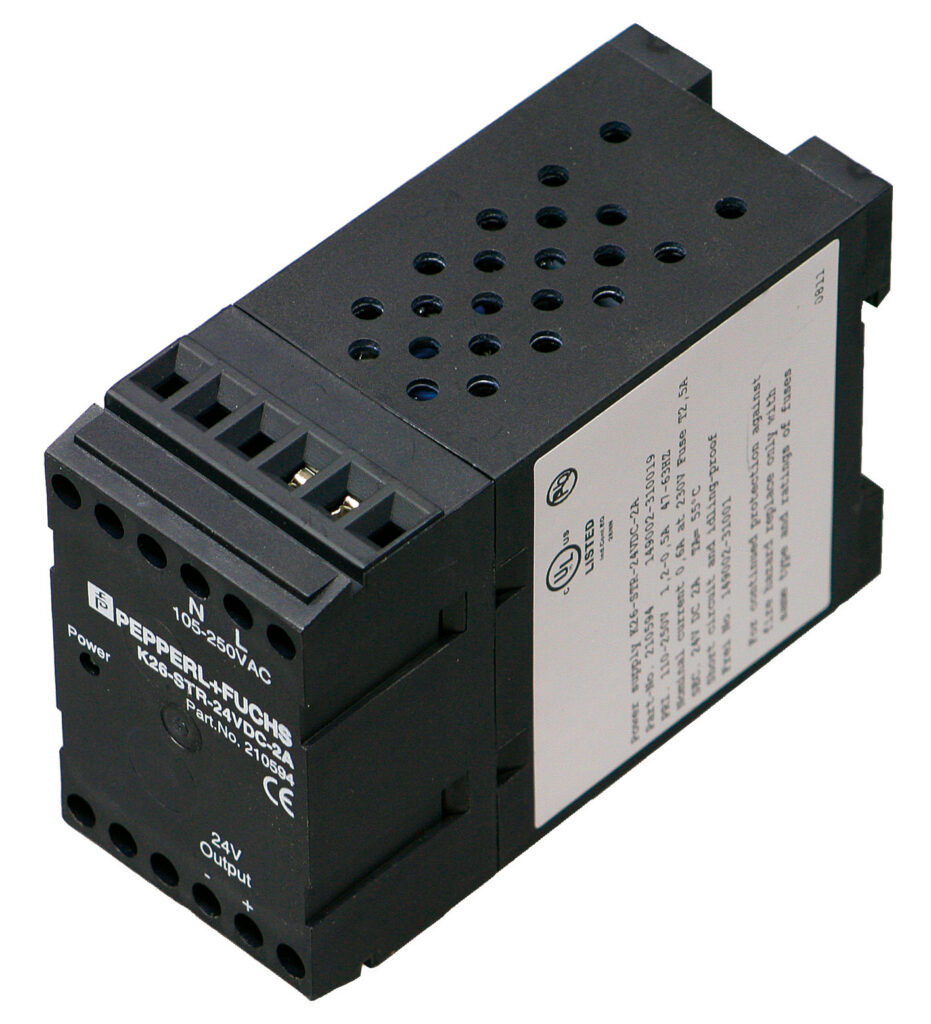

K26-STR-24VDC-2A
| UL File Number | E223176 |
|---|---|
| LED POWER | LED yeşil |
| Fusing | 2.5 AT |
| Capacity factor | 0.45 capacitive at 230 VAC · 0.5 capacitive at 120 VAC |
| Rated Çalışma gerilimi | 94 ... 265 V AC |
Power supply
- 2 A output load
- 110 – 250 VAC supply voltage
- 24 V DC output voltage
- Continuous short-circuit and continuous open-circuit proof
- LED operating display
- SELV-Output
- Compact design
- 89 % efficiency level
- Suitable for AS-Interface power supply in gateway-integrated data decoupling
Power supply, 24 V DC, 2 A
K26-STR-24VDC-2A
| UL File Number | E223176 |
|---|---|
| LED POWER | LED yeşil |
| Fusing | 2.5 AT |
| Capacity factor | 0.45 capacitive at 230 VAC · 0.5 capacitive at 120 VAC |
| Rated Çalışma gerilimi | 94 ... 265 V AC |
| Rated Çalışma akımı | 1.1 A (120 VAC) · 0.6 A (230 VAC) |
| Supply frequency | 47 ... 63 Hz |
| Efficiency | 89 % |
| Nominal voltage | 110 ... 250 V AC |
| Peak inrush current | < 1.5 A2s |
| Current limit | 2.5 A |
| Voltage | 24 V DC ± 3 % |
| Current | 0 ... 2 A |
| Residual ripple | max. 50 m V |
| Holdup time | > 70 ms/230 VAC · > 10 ms/120 VAC |
| Directive 2014/30/EU | EN 55011:2009, EN 61000-6-2:2001, EN 61000-6-3:2001 EN 61000-6-1:2002, EN 61000-6-4:2002; DIN 61000-3-3:2006 |
| Directive 2014/35/EU | EN 61010-1:2010 |
| Koruma sınıfı | IEC 60529:2001 |
| Electromagnetic compatibility | EN 55011:2009, EN 61000-6-2:2001, EN 61000-6-3:2001, EN 61000-3-2:2006, EN 61000-6-1:2002, EN 61000-6-4:2002; DIN 61000-3-3:2006 |
| Electrical safety | According to VDE 0805:2006/EN 61010-1:2010/IEC 950:2006 |
| Ortam sıcaklığı | -10 ... 70 °C (14 ... 158 °F) with free convection |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Protection class | II |
| Bağlantı | Bağlantı terminals, max. İletken kesiti · 0.5 ... 2.5 mm2 · stripped Uzunluk 10 mm |
| Ağırlık | 207 g |
| Mounting | Snap onto 35 mm standard rail compliant with DIN EN 60715:2001 |
