Pepperl+Fuchs
AS-i
VAA-2E-PM-S
| Node type | Safety-Slave |
|---|---|
| AS-Interface specification | V2.1 |
| Required master specification | ≥ V2.0 |
| UL File Number | E198304 |
| MTTFd | 200 a |

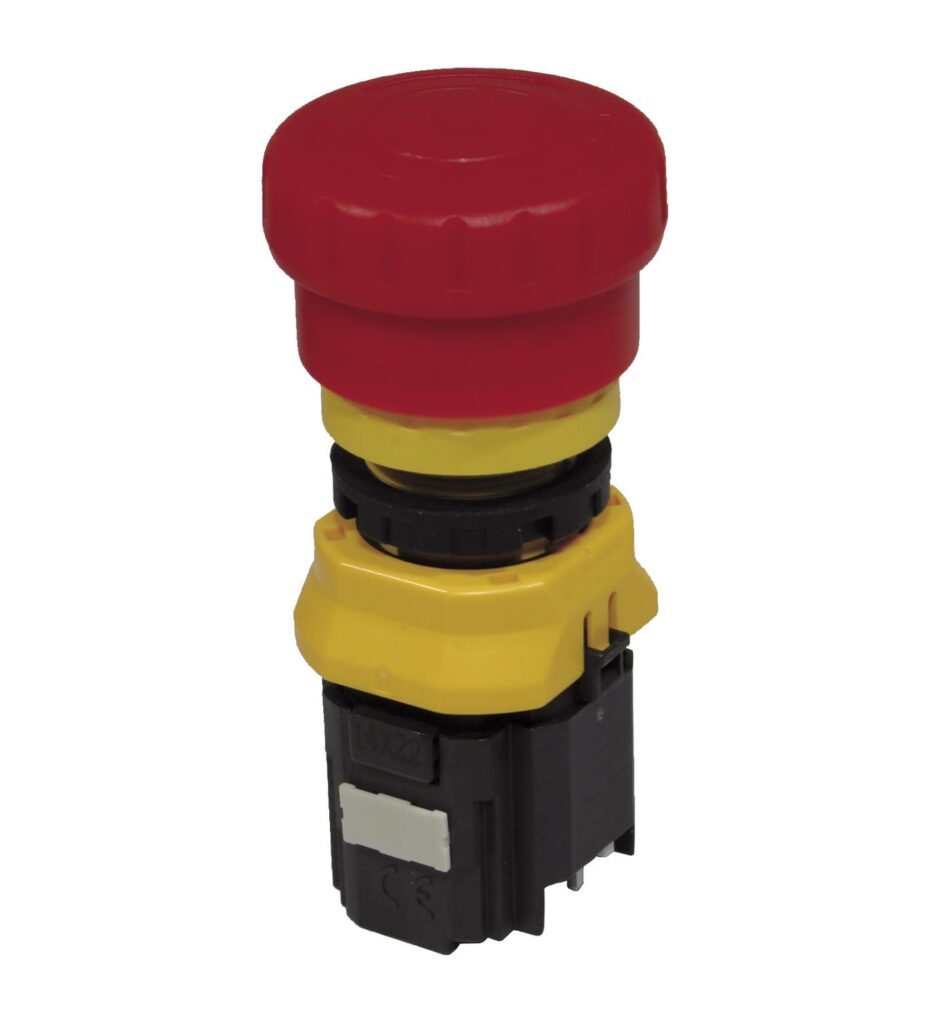

AS-Interface EMERGENCY STOP button
- 2-channel, compelled connected
- Overload-protected in accordance with IEC 60947-5-5
- TÜV-approval for system components is available
- Biased actuator for self-monitoring
- EMERGENCY STOP unlocking by turning or pulling
VAA-2E-PM-S
| Node type | Safety-Slave |
|---|---|
| AS-Interface specification | V2.1 |
| Required master specification | ≥ V2.0 |
| UL File Number | E198304 |
| MTTFd | 200 a |
| B10d | 1 E+5 |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 25 m A |
| Protection class | III |
| Insulation resistance | min. 100 MΩ |
| Number/Type | 2 NC · Safety function by positive opening · in accordance with IEC/EN 60947-5-1 · Reset by pulling |
| Supply | from AS-Interface |
| Directive 2014/30/EU | EN 62026-2:2013 |
| Electromagnetic compatibility | EN 62026-2:2013 |
| Koruma sınıfı | EN 60529:2000 |
| Electrical safety | EN 60947-5-5:1997+A1:2005 |
| AS-Interface | EN 62026-2:2013 |
| Functional safety | EN 62061:2005 · EN 61508 Parts 1-7:2010 · NFPA 79:2007 · EN 60204-1:2006 |
| Profile | S-0.B.E |
| IO code | 0 |
| ID code | B |
| ID1 code | F |
| ID2 code | E |
| Data bits (function via AS-Interface) | input output |
| D0 | dyn. safety code 1 - |
| D1 | dyn. safety code 1 - |
| D2 | dyn. safety code 2 - |
| D3 | dyn. safety code 2 - |
| Parameter bits (programmable via AS-i) | function |
| P0 | not used |
| P1 | not used |
| P2 | not used |
| P3 | not used |
| Ortam sıcaklığı | -25 ... 55 °C (-13 ... 131 °F) (no freezing) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | 40 ... 85 % , non-condensing |
| Operating force | Push: 32 N · Pull: 21 N · Turn: 0.27 Nm · Minimum for positive opening operation: 60 Nm |
| Operating distance | for positive opening operation: min. 4 mm · maximal: 4.5 mm |
| Bağlantı | Crimp terminal sockets (JST) · 1.5 m Connecting Kablo with crimp on 2 flexible leads supplied with delivery |
| Montaj | Montaj in 22 mm hole |
| Ağırlık | 105 g |
| Life span | > 250,000 switching operations |
