VAA-4E-G2-ZA
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| UL File Number | E223772 |
| LED FAULT | error display; LED kırmızı · kırmızı: communication error or address is 0 · kırmızı flashing: overload of sensor supply |
AS-Interface sensor module
- AS-Interface certificate
- Koruma sınıfı IP67
- Addressing jack
- Flat Kablo Bağlantı with Kablo piercing technique, variable flat Kablo guide
- Inputs for 2- and 3 telli sensors
- Power supply of inputs from the module
- Function display for bus and inputs
- Monitoring of sensor overloads

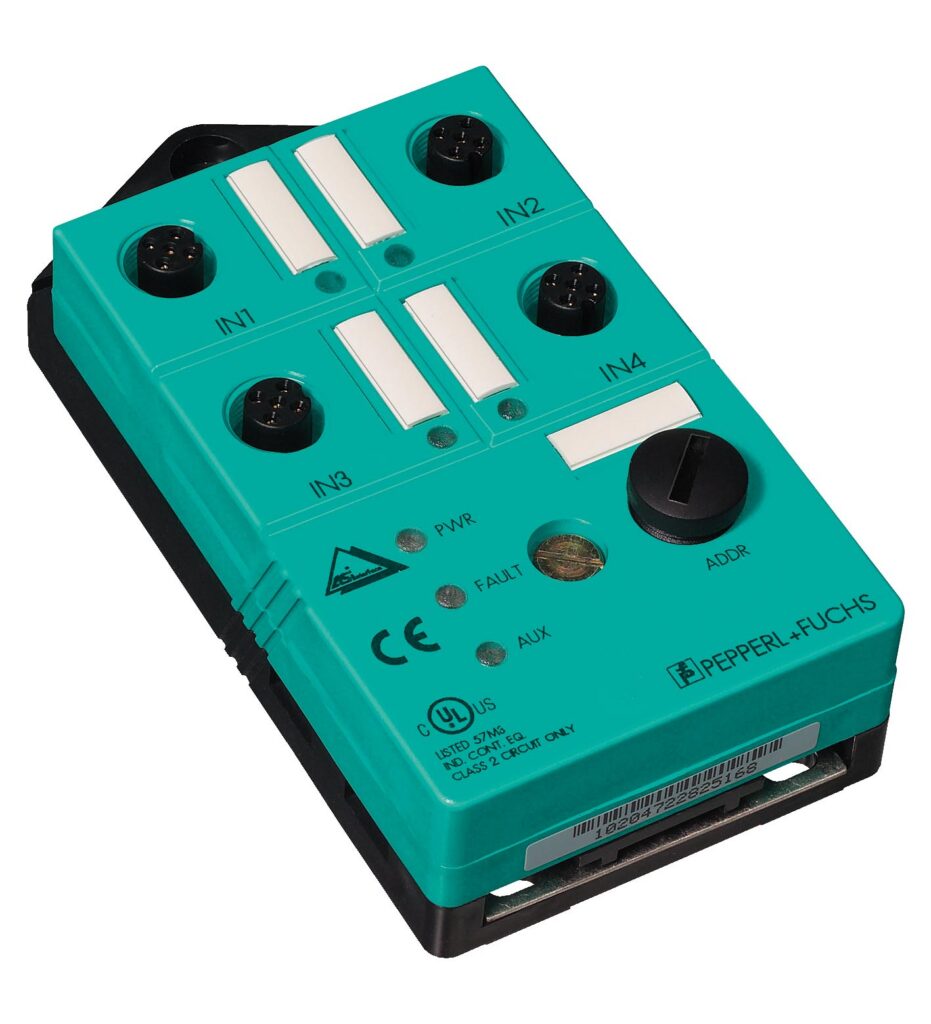

G2 flat module, 4 inputs (PNP)
VAA-4E-G2-ZA
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| UL File Number | E223772 |
| LED FAULT | error display; LED kırmızı · kırmızı: communication error or address is 0 · kırmızı flashing: overload of sensor supply |
| LED PWR | AS-Interface voltage; LED yeşil |
| LED IN | switching state (input); 4 LED sarı |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 40 m A (without sensors) / max. 240 m A |
| Protection class | III |
| Surge protection | Ue: Over voltage category III, safe isolated power supplies (PELV) |
| Number/Type | 4 inputs for 2- or 3 telli sensors (PNP), DC |
| Supply | from AS-Interface |
| Voltage | 21 ... 31 V |
| Current loading capacity | ≤ 200 m A (TB ≤ 40 °C), · ≤ 150 m A (TB ≤ 60 °C), kısa devre korumalı |
| Input current | ≤ 8 m A (limited internally) |
| 0 (unattenuated) | ≤ 1.5 m A |
| 1 (attenuated) | ≥ 4.5 m A |
| Signal delay | < 2 ms (input/AS-Interface) |
| Signal frequency | ≤ 250 Hz |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2001 EN 61000-6-4:2001 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2:2007 |
| Emitted interference | EN 61000-6-4:2001 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61000-6-2:2001 |
| Profile | S-0.1 |
| IO code | 0 |
| ID code | 1 |
| ID1 code | F |
| ID2 code | F |
| Data bits (function via AS-Interface) | Input Output |
| D0 | IN1 - |
| D1 | IN2 - |
| D2 | IN3 - |
| D3 | IN4 - |
| Parameter bits (programmable via AS-i) | function |
| P0 | Communication monitoring · P0 = 0 monitoring = off, the outputs maintain the status if communication fails · P0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings) |
| P1 | Input filter · P1 = 0 input filter on, pulse suppression ≤ 2 ms · P1 = 1 input filter off (default settings) |
| P2 | Synchronous mode · P2 = 0 synchronous mode on · P2 = 1 synchronous mode off (default settings) |
| P3 | not used |
| Ortam sıcaklığı | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Pollution degree | 3 |
| Bağlantı | Kablo piercing method · flat Kablo sarı · inputs: M12 round connector |
| Gövde | PBT |
| Ağırlık | 100 g |
| Sıkma torku, Kablo gland | 0.4 Nm |
| Mounting | Mounting plate |
