Pepperl+Fuchs
AS-i
VAA-4E4A-G2-ZA/EA2
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.F |
| IO code | 7 |
AS-Interface sensor/actuator module
- AS-Interface certificate
- Koruma sınıfı IP67
- Addressing jack
- Flat Kablo Bağlantı with Kablo piercing technique, variable flat Kablo guide
- Communication monitoring
- Inputs for 2-, 3-, and 4 telli sensors
- Power supply of outputs from the external auxiliary voltage
- Supply for inputs from AS-Interface
- Ground Bağlantı (FE) possible
- Function display for bus, ext. auxiliary voltage, inputs and outputs
- Detection of overload on sensor supply
- Detection of output overload

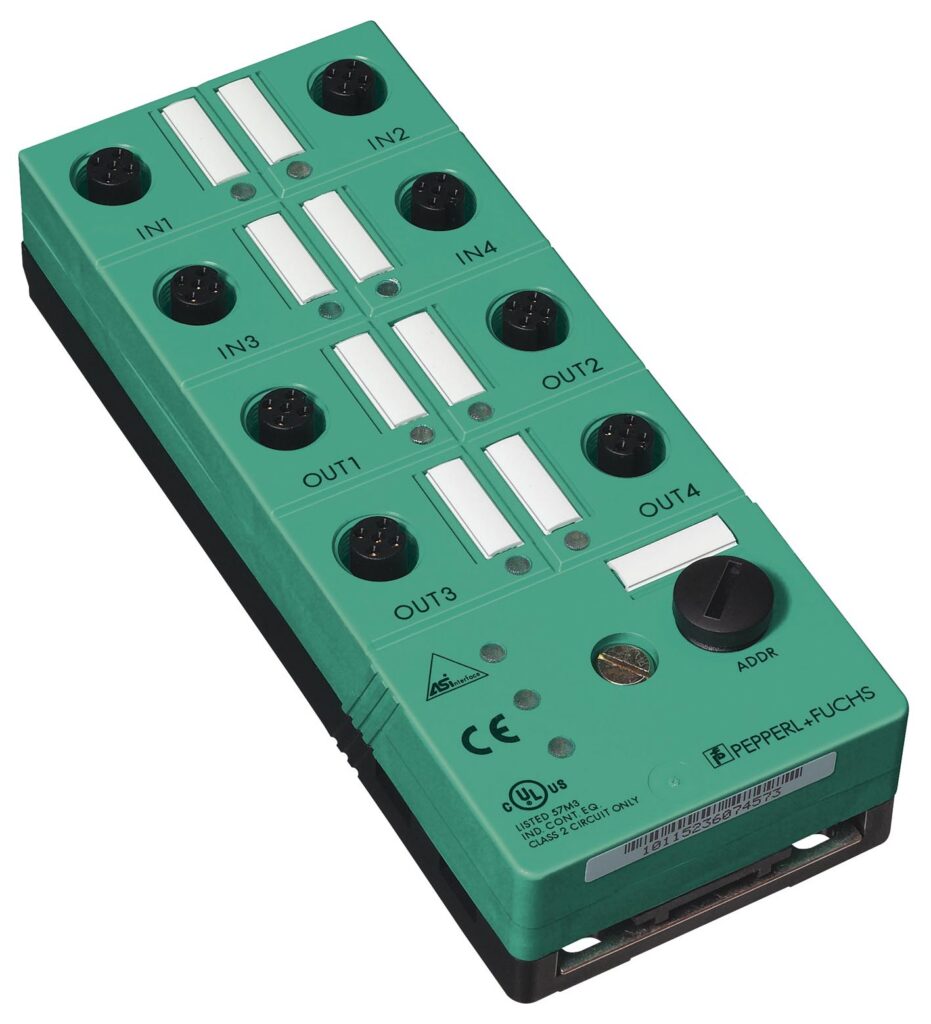

G2 flat module, 4 inputs (PNP) and 4 electronic outputs
VAA-4E4A-G2-ZA/EA2
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.F |
| IO code | 7 |
| ID code | F |
| ID1 code | F |
| ID2 code | E |
| UL File Number | E223772 |
| LED FAULT | error display; LED kırmızı · kırmızı: communication error or address is 0 · kırmızı flashing: overload of sensor power supply or outputs |
| LED PWR | AS-Interface voltage; LED yeşil |
| LED AUX | ext. auxiliary voltage UAUX ; LED yeşil |
| LED IN | switching state (input); 4 LED sarı |
| LED OUT | Switching state (output); 4 LED sarı |
| Auxiliary voltage (output) | 20 ... 30 V DC PELV |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 40 m A (without sensors) / max. 220 m A |
| Protection class | III |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) |
| Number/Type | 4 inputs for 2- or 3 telli sensors (PNP), DC · option 2 inputs for 4 telli sensors (PNP), DC |
| Supply | from AS-Interface |
| Voltage | 21 ... 31 V |
| Current loading capacity | ≤ 180 m A (TB ≤ 40 °C), · ≤ 140 m A (TB ≤ 60 °C), , overload and kısa devre korumalı |
| Input current | ≤ 9 m A (limited internally) |
| Switching point | according to DIN EN 61131-2 (Type 2) |
| 0 (unattenuated) | ≤ 3 m A |
| 1 (attenuated) | ≥ 5 m A |
| Signal delay | < 2 ms (input/AS-Interface) |
| Signal frequency | ≤ 250 Hz |
| Current | 2 A per output · Sum 4 A (TB ≤ 40 °C) · Sum 3 A (TB ≤ 60 °C) |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2001 EN 61000-6-4:2001 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2:2007 |
| Emitted interference | EN 61000-6-4:2001 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61000-6-2:2001 |
| Ortam sıcaklığı | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Pollution degree | 3 |
| Bağlantı | Kablo piercing method · flat Kablo sarı/flat Kablo siyah · inputs/outputs: M12 round connector |
| Gövde | PBT |
| Ağırlık | 150 g |
| Sıkma torku, Kablo gland | 0.4 Nm |
| Mounting | Mounting plate |
