Pepperl+Fuchs
AS-i
VAA-4E4A-G4-ZE/E2
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.0 |
| IO code | 7 |
AS-Interface sensor/actuator module
- Koruma sınıfı IP65
- Flat or round Kablo Bağlantı (via standardized EEMS base, not included with delivery)
- Kablo piercing method for flat Kablo
- Communication monitoring, turn-off
- Inputs for 2- and 3 telli sensors
- Power supply of outputs from the external auxiliary voltage
- Power supply of inputs from the module
- Function display for bus, ext. auxiliary voltage, inputs and outputs
- Monitoring of sensor overloads

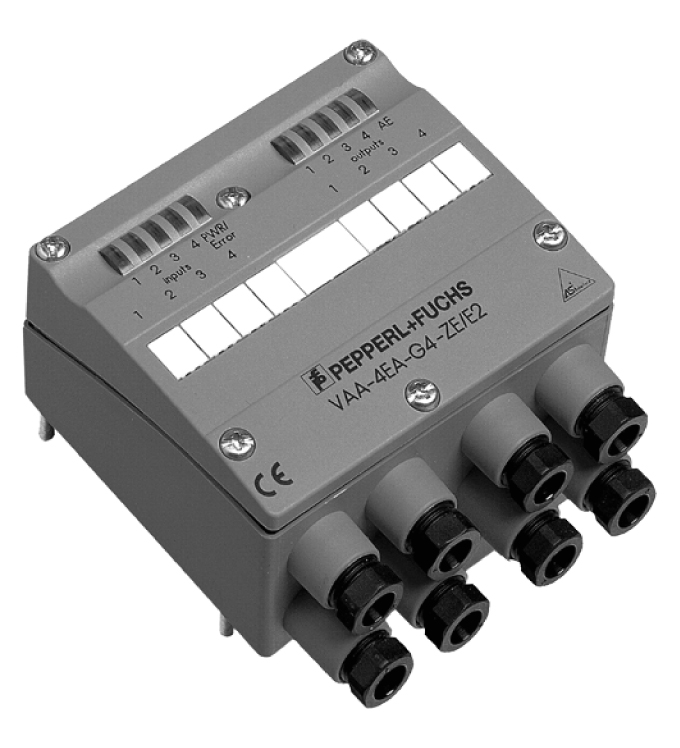

G4 module IP65, 4 inputs (PNP) and 4 electronic outputs
VAA-4E4A-G4-ZE/E2
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.0 |
| IO code | 7 |
| ID code | 0 |
| ID1 code | F |
| ID2 code | E |
| UL File Number | E223772 |
| LED PWR/FAULT | dual LED yeşil/kırmızı · yeşil: AS-Interface voltage · kırmızı: communication error or address 0 · yeşil/kırmızı flashing: overload sensor supply or outputs |
| LED AUX | ext. auxiliary voltage UAUX ; LED yeşil |
| LED IN | switching state (input); 4 LED sarı |
| LED OUT | Switching state (output); 4 LED sarı |
| Auxiliary voltage (output) | 24 V DC ± 15 % PELV |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 30 m A (without sensors) / max. 230 m A |
| Protection class | III |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) |
| Number/Type | 4 inputs for 2- or 3 telli sensors (PNP), DC |
| Supply | from AS-Interface |
| Voltage | 21 ... 31 V |
| Current loading capacity | ≤ 200 m A (TB ≤ 40 °C), · ≤ 160 m A (TB ≤ 60 °C), kısa devre korumalı |
| Input current | ≤ 9 m A (limited internally) |
| Switching point | according to DIN EN 61131-2 (Type 2) |
| 0 (unattenuated) | ≤ 3 m A |
| 1 (attenuated) | ≥ 5 m A |
| Current | 1 A per output, 4 A total |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2:2007 |
| Emitted interference | EN 61000-6-4:2007 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61000-6-2:2005 EN 62026-2:2013 |
| Ortam sıcaklığı | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Pollution degree | 3 |
| Bağlantı | Kablo piercing method or terminal compartment · sarı flat Kablo/siyah flat Kablo or standard round Kablo · inputs/outputs:M12 x 1.5 Kablo glands and cage tension spring terminals |
| Gövde | PA 6 GF30 |
| Ağırlık | 350 g |
| Sıkma torku, Gövde screws | 0.8 Nm |
| Yükseklik | 71 mm |
| Genişlik | 90 mm |
| Uzunluk | 102 mm |
| Mounting | DIN rail or screw mounting |
