VAA-4E4A-KE-ZE/R
| Node type | Standard node |
|---|---|
| AS-Interface specification | V2.1 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.0 |
| IO code | 7 |

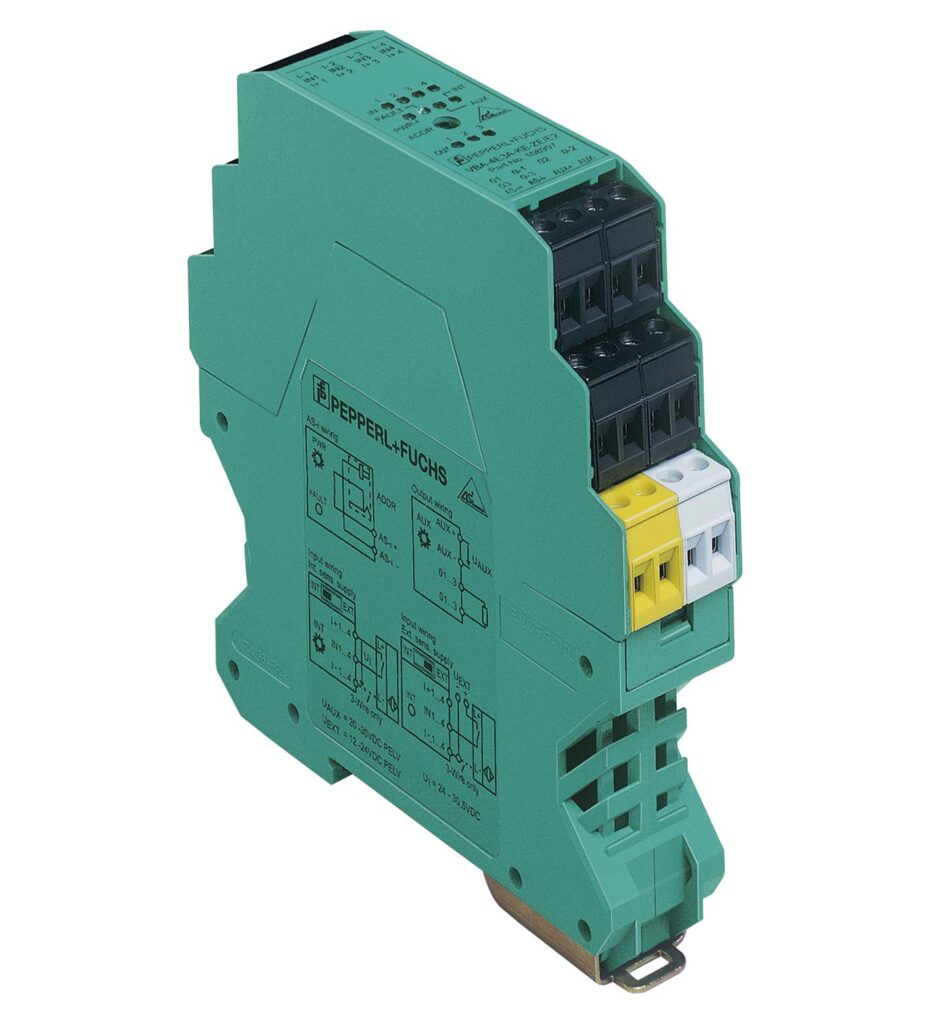

AS-Interface sensor/actuator module
- Gövde with removable, mechanical and Renk coded terminals
- Communication monitoring
- Inputs for 2- and 3 telli sensors
- Isolated relay output
- Addressing jack
- Selectable supply to the sensors: External or from the module
- Function display for bus, internal sensor supply, inputs, and outputs
KE switch cabinet module, 4 inputs (PNP) and 4 relay outputs
VAA-4E4A-KE-ZE/R
| Node type | Standard node |
|---|---|
| AS-Interface specification | V2.1 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.0 |
| IO code | 7 |
| ID code | 0 |
| ID1 code | F |
| ID2 code | E |
| UL File Number | E106378 |
| LED FAULT | Fault display; kırmızı LED · kırmızı: Communication fault or address is 0 · kırmızı, flashing: Overload, internal input supply |
| LED INT | Internal input supply active; LED yeşil |
| LED PWR | AS-Interface voltage; LED yeşil |
| LED IN | switching state (input); 4 LED sarı |
| LED OUT | Switching state (output); 4 LED sarı |
| Auxiliary voltage (input) | 12 ... 30 V DC PELV |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 35 m A (no sensors)/max. 210 m A |
| Surge protection | O1 ... O4: Over voltage category II · UEXT, Ue: Over voltage category III, safe isolated power supplies (PELV) |
| Number/Type | 4 inputs for 2- or 3 telli sensors (PNP), DC |
| Supply | from AS-Interface (switch position INT, default settings) or external UEXT (switch position EXT) |
| Voltage | 21 ... 31 V DC (INT) |
| Current loading capacity | ≤ 150 m A, overload- and kısa devre korumalı (INT) |
| Input current | ≤ 8 m A (limited internally) |
| Switching point | according to DIN EN 61131-2 (Type 2) |
| 0 (unattenuated) | ≤ 2 m A |
| 1 (attenuated) | ≥ 4 m A |
| Signal delay | < 2 ms (input/AS-Interface) |
| Per contact | 2 A / 30 V DC (acc. UL max. 24 V DC); 2 A / 253 V AC |
| Per module | 8 A |
| Control circuit | ≤ 8 m A per relay (from AS-Interface) |
| Switching delay | < 10 ms (AS-Interface/contact) |
| Usage category | DC-13 and AC-14 |
| Overload protection | fuse unit 2 A required in the load current circuit |
| Input/Output | safe isolation, rated insulation voltage 300 V AC |
| Input/AS-Interface | Switch position INT: None Switch position EXT: reinforced insulation, rated insulation voltage 66 V DC |
| Output/Output | basic insulation, rated insulation voltage 300 V AC |
| Output/AS-Interface | safe isolation, rated insulation voltage 300 V AC |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61326:2003 |
| Directive 73/23/EEC | EN 60947-1:2007 |
| Galvanic isolation | EN 60664-1:2007 |
| Electromagnetic compatibility | NAMUR NE 21: 1998-08 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| AS-Interface | EN 62026-2:2013 |
| Ortam sıcaklığı | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Pollution degree | 2 |
| Bağlantı | removable terminals · rated Bağlantı capacity: · rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2 · for multiple-wire Bağlantı with two wires of equal cross-section: · flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2 |
| Gövde | PA 66-FR |
| Ağırlık | 170 g |
| Yükseklik | 99 mm |
| Genişlik | 22.5 mm |
| Uzunluk | 102 mm |
| Mounting | DIN mounting rail |
| Sıkma torku of clamping screws | 0.5 Nm ... 0.6 Nm |
