AS-i

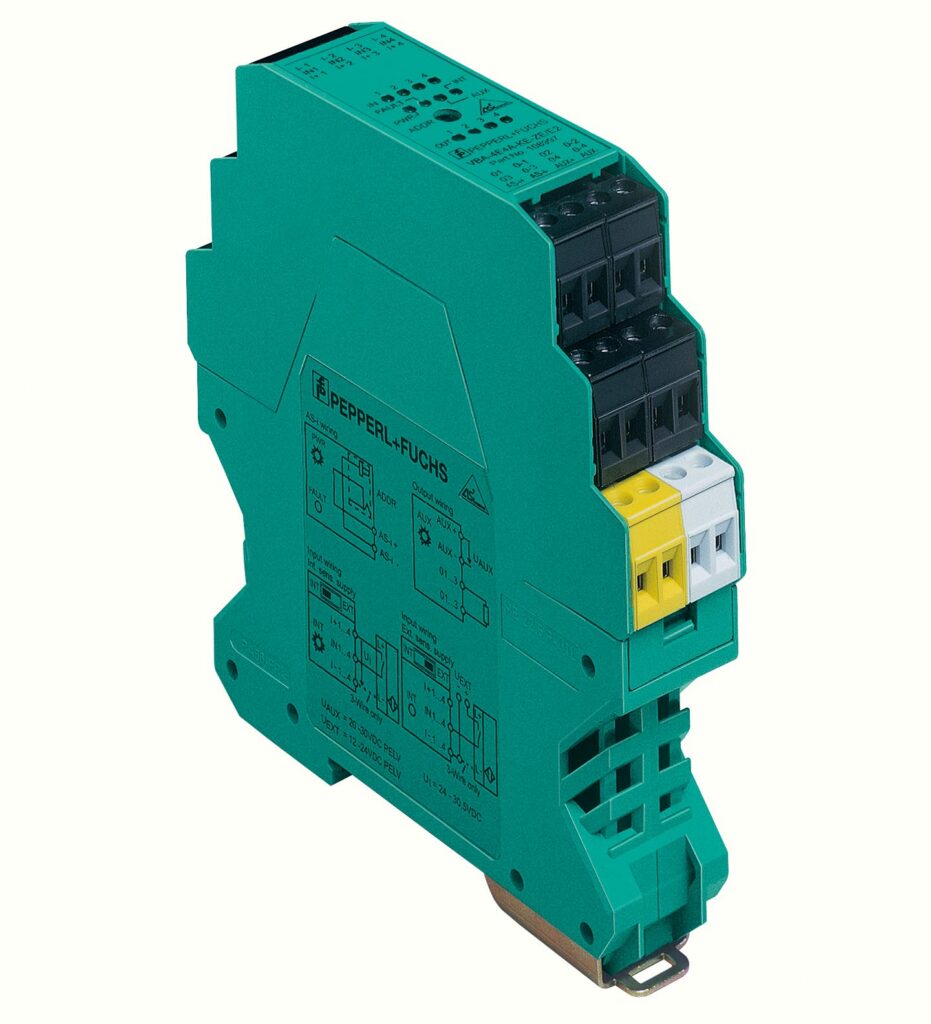

VAA-4E4A-KE-ZEJQ/E2L
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.0 |
| IO code | 7 |
AS-Interface sensor/actuator module
- Gövde with removable, mechanical and Renk coded terminals
- Communication monitoring
- Inputs for 2- and 3 telli sensors
- Addressing jack
- Power supply of outputs from the external auxiliary voltage
- Selectable supply to the sensors: External or from the module
- Function display for bus, external auxiliary voltage, internal sensor supply, inputs, and outputs
- kırmızı LED per channel, lights up in the event of output overload
- Switchable lead breakage detection (outputs)
KE switch cabinet module, 4 inputs and 4 outputs
VAA-4E4A-KE-ZEJQ/E2L
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.0 |
| IO code | 7 |
| ID code | 0 |
| ID1 code | F |
| ID2 code | E |
| UL File Number | E223772 |
| LED FAULT | Error display; kırmızı LED · kırmızı: communication error, i.e. address is 0 · kırmızı flashing: overload internal input supply, i.e. overload or lead interruption outputs |
| LED INT | Internal input supply active; LED yeşil |
| LED PWR | AS-Interface voltage; yeşil LED · yeşil: voltage OK · flashing yeşil: address 0 |
| LED AUX | ext. auxiliary voltage UAUX; dual LED yeşil/kırmızı · yeşil: voltage OK · kırmızı: reverse voltage |
| LED IN | switching state (input); 4 LED sarı |
| LED OUT | switching state (output); 4 LED sarı/kırmızı · sarı: output active · kırmızı: output overload or lead interruption |
| Auxiliary voltage (input) | 12 ... 30 V DC PELV |
| Auxiliary voltage (output) | 20 ... 30 V DC PELV |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 35 m A (without sensors) / max. 190 m A |
| Protection class | III |
| Surge protection | UEXT, UAUX, Ue: Over voltage category III, safe isolated power supplies (PELV) |
| Number/Type | 4 inputs for 2- or 3 telli sensors (PNP), DC |
| Supply | from AS-Interface (switch position INT, default settings) or external UEXT (switch position EXT) |
| Voltage | 21 ... 31 V DC (INT) |
| Current loading capacity | ≤ 150 m A, overload- and kısa devre korumalı (INT) |
| Input current | ≤ 9 m A (limited internally) |
| Switching point | according to DIN EN 61131-2 (Type 2) |
| 0 (unattenuated) | ≤ 3 m A |
| 1 (attenuated) | ≥ 5 m A |
| Signal delay | < 1 ms (input/AS-Interface) |
| Current | 2 A per output, sum 4A (TB ≤ 40 °C) · 0.5 A per output, total 2A (TB ≤ 60 °C, arranged in series without gaps) · 2 A per output, total 4A (TB ≤ 60 °C, arranged in series with 5 mm gap) |
| Usage category | DC-13 |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2:2004 |
| Emitted interference | EN 61000-6-4:2007 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 |
| Ortam sıcaklığı | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Pollution degree | 2 |
| Bağlantı | removable terminals · rated Bağlantı capacity: · rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2 · for multiple-wire Bağlantı with two wires of equal cross-section: · flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2 |
| Gövde | PA 66-FR |
| Ağırlık | 150 g |
| Yükseklik | 99 mm |
| Genişlik | 22.5 mm |
| Uzunluk | 102 mm |
| Mounting | DIN mounting rail |
| Sıkma torku of clamping screws | 0.5 Nm ... 0.6 Nm |
