Pepperl+Fuchs
AS-i

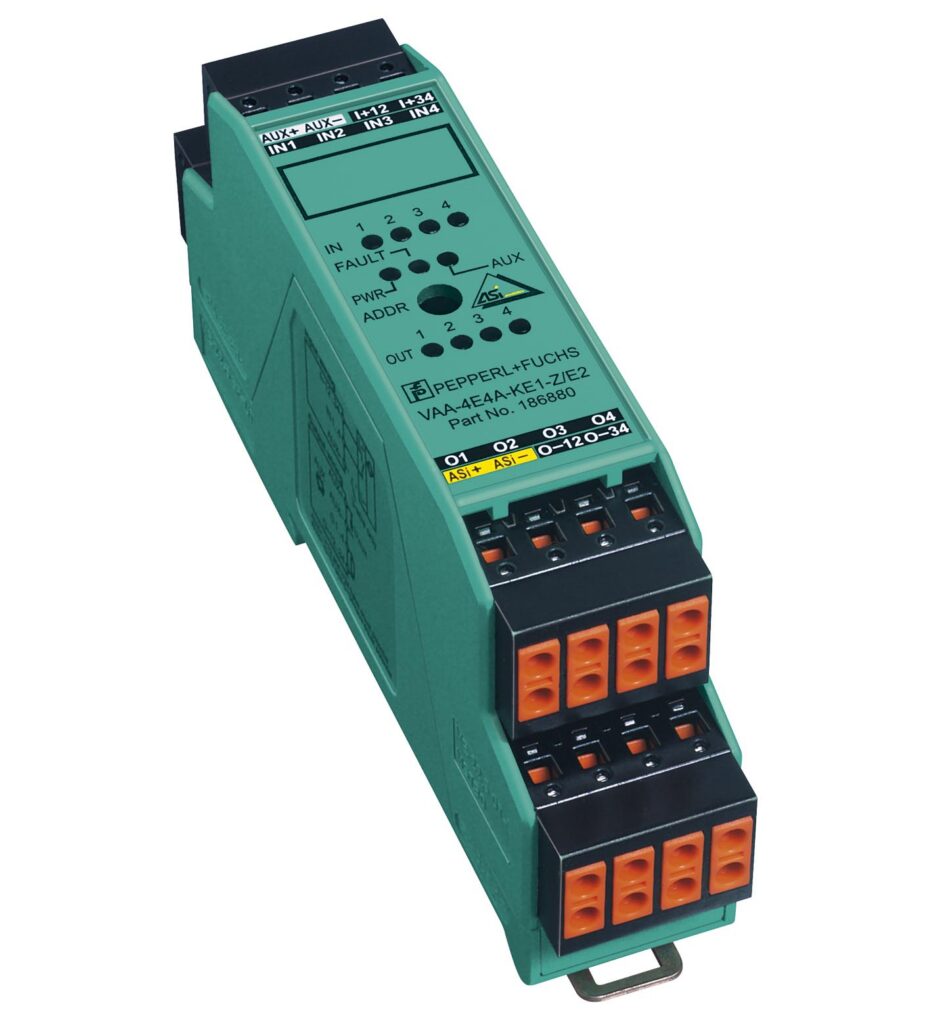

VAA-4E4A-KE1-Z/E2
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.0 |
| IO code | 7 |
AS-Interface sensor/actuator module
- Gövde with removable terminals
- Communication monitoring
- Inputs for 2 telli sensors and mechanical contacts
- Addressing jack
- Power supply of the inputs and outputs from the external auxiliary voltage
- Function display for bus, ext. auxiliary voltage, inputs and outputs
KE1 switch cabinet module, 4 inputs and 4 outputs
VAA-4E4A-KE1-Z/E2
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.0 |
| IO code | 7 |
| ID code | 0 |
| ID1 code | F |
| ID2 code | E |
| UL File Number | E87056 |
| LED FAULT | error display; LED kırmızı · kırmızı: communication error or address is 0 · kırmızı flashing: overload of outputs |
| LED PWR | AS-Interface voltage; LED yeşil |
| LED AUX | ext. auxiliary voltage UAUX; dual LED yeşil/kırmızı · yeşil: voltage OK · kırmızı: reverse voltage |
| LED IN | switching state (input); 4 LED sarı |
| LED OUT | Switching state (output); 4 LED sarı |
| Auxiliary voltage (output) | 20 ... 30 V DC PELV |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 40 m A |
| Protection class | III |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) |
| Number/Type | 4 inputs for 2 telli sensors (PNP), DC or for mechanical contacts |
| Supply | from external auxiliary voltage UAUX |
| Input current | ≤ 8 m A (limited internally) |
| Switching point | according to DIN EN 61131-2 (Type 2) |
| 0 (unattenuated) | ≤ 2 m A |
| 1 (attenuated) | ≥ 4 m A |
| Signal delay | < 2 ms (input/AS-Interface) |
| Signal frequency | ≤ 250 Hz |
| Voltage | ≥ (UAUX - 0.5 V) |
| Current | 0.5 A per output , 2 A per module |
| Usage category | DC-13 |
| Directive 2014/30/EU | IEC 62026-2:2015 · EN 61326-1:2006 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2:2015 |
| Emitted interference | EN 55011:2009 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61326-1:2006 |
| Ortam sıcaklığı | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 90 % , non-condensing |
| Pollution degree | 2 |
| Bağlantı | removable spring double terminals · rated Bağlantı capacity: · rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 1.5 mm2 · recommended tools for 1.5 mm2: Px C CRIMPFOX ZA3 or Weidmüller PZ 6 roto |
| Gövde | PA 66-FR |
| Ağırlık | 80 g |
| Yükseklik | 48.5 mm |
| Genişlik | 22.5 mm |
| Uzunluk | 99.6 mm |
| Mounting | DIN mounting rail |
