Pepperl+Fuchs
AS-i
VAN-115/230AC-K16
| UL File Number | E223176 |
|---|---|
| MTBF | 100 a |
| Reset push-button switch | FUSE mode reset |
| Power selection switch | changeover switch for 115 V AC/230 V AC |
| LED Overload | kırmızı LED, flashes in the FUSE mode |
AS-Interface power supply
- AS-Interface certificate
- PELV/SELV
- LED operating display
- 8 A output load
- 115 V AC / 230 V AC switchable
- AS-Interface data decoupling
- Overload protection using FUSE mode
AS-Interface power supply, data decoupling, 8 A

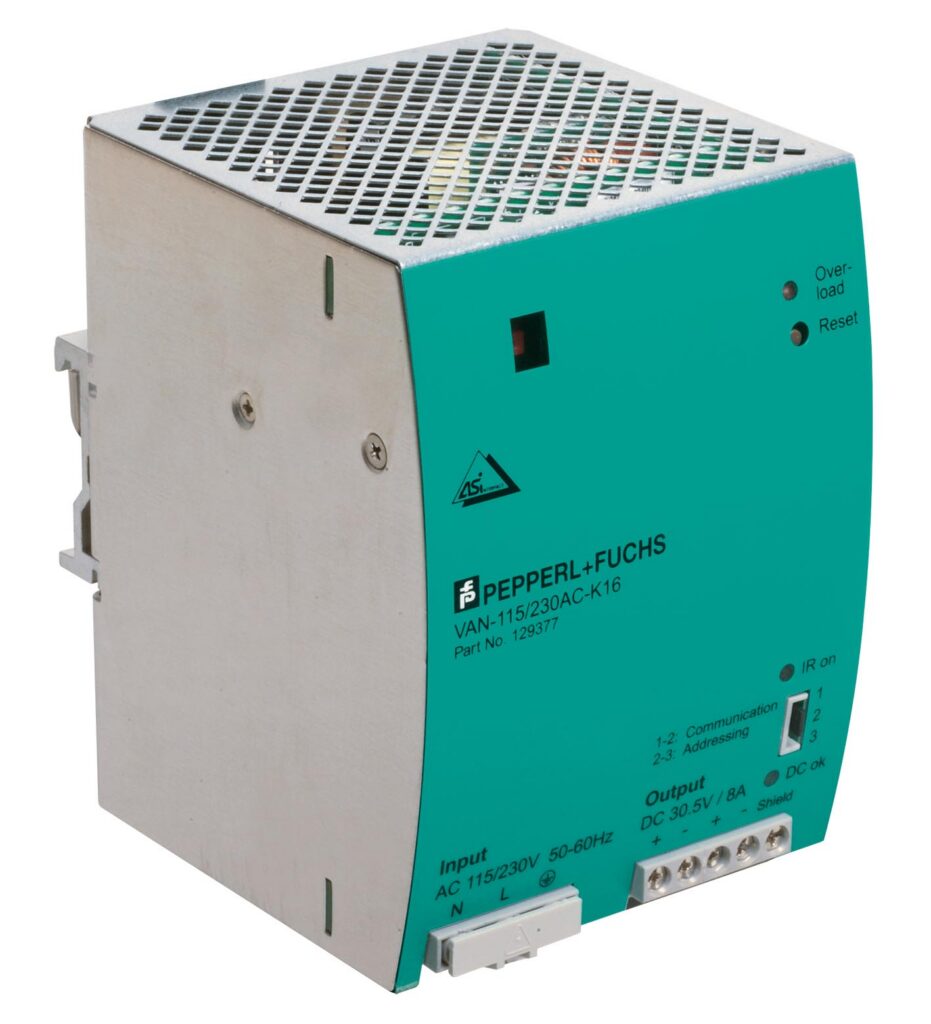

VAN-115/230AC-K16
| UL File Number | E223176 |
|---|---|
| MTBF | 100 a |
| Reset push-button switch | FUSE mode reset |
| Power selection switch | changeover switch for 115 V AC/230 V AC |
| LED Overload | kırmızı LED, flashes in the FUSE mode |
| LED IR on | kırmızı LED: · ON: Plug-in jumper position 2-3 · OFF: Plug-in jumper position 1-2 |
| Plug-in jumper | Position 1-2: Communication Mode · Position 2-3: IR addressing |
| LED AS-i ok | operating display; LED yeşil |
| Fusing | T8A/250 V AC HBC (not accessible) |
| Capacity factor | > 0.5 |
| Rated Çalışma gerilimi | nominal: 100 ... 120 V AC/220 ... 240 V AC (front end selectable) · permissible: 85 ... 132 V AC/184 ... 264 V AC/230 ... 375 V DC |
| Rated Çalışma akımı | 6,0 A (Switch position 115 V) · 2.8 A (Switch position 230 V) |
| Supply frequency | 47 ... 63 Hz or DC |
| Efficiency | typ. 92 % (at 230 V AC/8 A) |
| Surge protection | limited to max. 55 V |
| Kısa devre koruması/overload | FUSE Mode (2 ... 5 s current, then trips) |
| Current limit | > 8.4 A |
| Voltage | 30.55 V DC ± 3 % |
| Current | 8 A |
| Galvanic isolation | overvoltage category III |
| Residual ripple | ≤ 50 m Vss (500 k Hz bandwidth, 50-Ω-measurement with ohmic load) |
| Short-circuit current | 12 ... 25 A (max. 5 s) |
| Electromagnetic compatibility | emitted interference in accordance with EN 50081-2 class B (EN 55011, EN 55022) · noise immunity in accordance with EN 61000-6-2, EN 61000-4-2 to EN 61000-4-6, EN 61000-4-11 |
| Ortam sıcaklığı | -10 ... 70 °C (14 ... 158 °F) (Measured 25 mm below the device) · from 60° C 6W/°C power recovery necessary |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Pollution degree | 2 |
| Koruma sınıfı | IP20 according to EN 60529 |
| Protection class | 1 (IEC 60536); Protective conductor Bağlantı necessary |
| Bağlantı | Bağlantı terminals, max. İletken kesiti · flexible: 0.5 ... 4 mm2 · sabit: 0.5 ... 6 mm2 · stripped Uzunluk 7 mm, connector sleeves are permissible |
| Gövde | metal |
| Ağırlık | yak. 890 g |
| Yükseklik | 124 mm |
| Genişlik | 91 mm |
| Uzunluk | 102 mm |
