Pepperl+Fuchs
AS-i

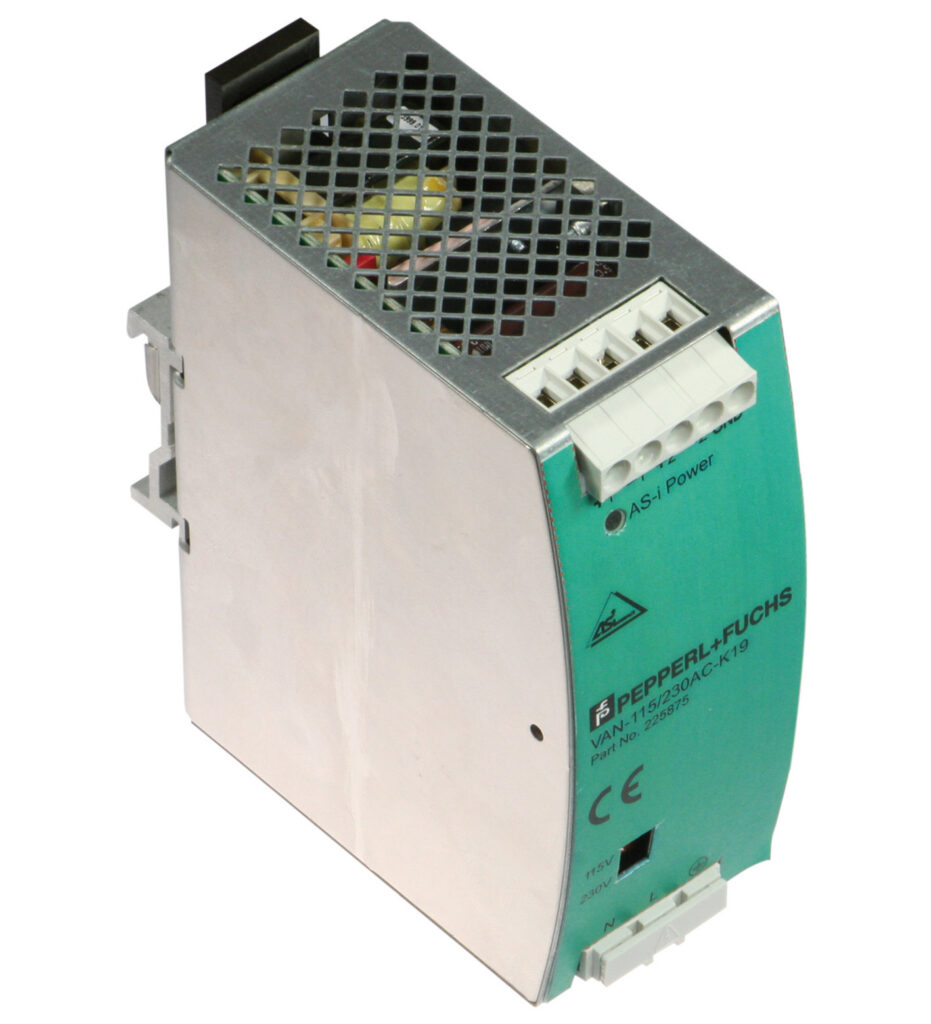

VAN-115/230AC-K19
| UL File Number | E223176 |
|---|---|
| MTBF | 221 a |
| LED AS-i ok | LED yeşil: · ON: AS-Interface voltage OK · OFF: overload or no supply voltage |
| Fusing | 2.5 AT (not replacable) |
| Capacity factor | > 0.5 |
AS-Interface power supply
- en fazla 2.8 A output load
- Power factor correction
- Electronic overload protection and display
- LED operating display
- AS-Interface data decoupling
- PELV/SELV
- NEC Class 2 Power Supply
AS-Interface power supply, data decoupling, 2.8 A
VAN-115/230AC-K19
| UL File Number | E223176 |
|---|---|
| MTBF | 221 a |
| LED AS-i ok | LED yeşil: · ON: AS-Interface voltage OK · OFF: overload or no supply voltage |
| Fusing | 2.5 AT (not replacable) |
| Capacity factor | > 0.5 |
| Rated Çalışma gerilimi | nominal: 100 ... 120 VAC/220 ... 240 VAC · permissible: 85 ... 132 VAC/184 ... 264 VAC |
| Rated Çalışma akımı | 2.0 A at 115 VAC · 0.9 A at 230 VAC |
| Supply frequency | 47 ... 63 Hz |
| Efficiency | 90.5 % (230 VAC, 2.8 A) |
| Current limit | > 3.2 A |
| Voltage | 30.55 VDC ± 3 % sabit setting |
| Current | 2.8 A |
| Residual ripple | ≤ 50 m Vss (500 k Hz bandwidth, 50-Ω-measurement with ohmic load) |
| Short-circuit current | min. 3.2 A, max. 4.6 A |
| Low Voltage Directive 2006/95/EC | EN 60950-1:2006, EN 61204-3:2001 |
| EMC Directive 2004/108/EC | EN 61000-6-2:2005, EN 61000-6-3:2007, EN 50295:1999 |
| Electromagnetic compatibility | EN 61000-6-2:2005; EN 61000-6-3:2007 |
| AS-Interface | EN 50295:1999, IEC 62026-2:2006 |
| Mech. capacity | EN 60068-2-6:2008 |
| Shock and impact resistance | EN 60068-2-27:1995 |
| Ortam sıcaklığı | -10 ... 70 °C (14 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Vibration resistance | 2 ... 17,8 Hz / 1.6 mm · 17.8 ... 500 Hz / 2.0 g |
| Pollution degree | 2 (EN 60950) |
| Koruma sınıfı | IP20 |
| Protection class | I, Protective conductor Bağlantı necessary |
| Bağlantı | Bağlantı terminals, max. İletken kesiti 0.5 ... 6 mm2 (20-10 AWG), Stripping Uzunluk 7 mm |
| Ağırlık | yak. 500 g |
| Yükseklik | 124 mm |
| Genişlik | 49 mm |
| Uzunluk | 102 mm |
| Mounting | DIN mounting rail |
