Pepperl+Fuchs
AS-i

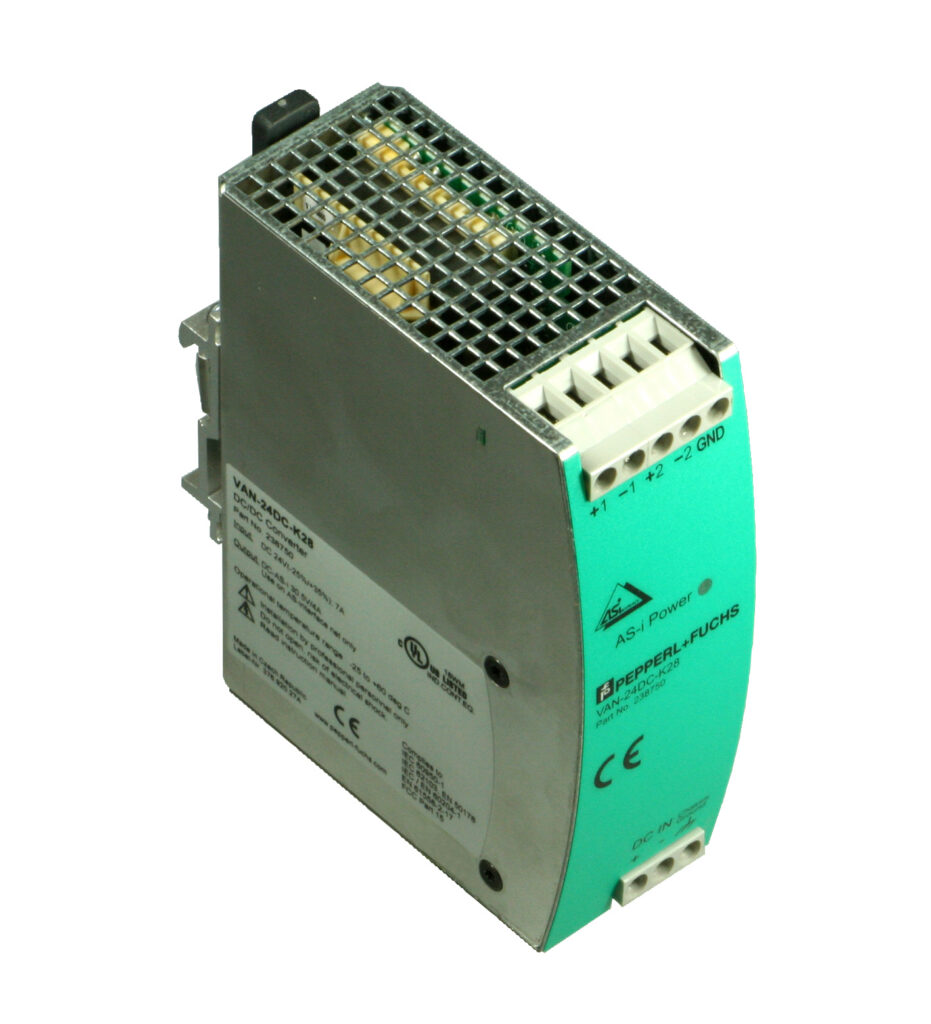

VAN-24DC-K28
| UL File Number | E223176 |
|---|---|
| MTBF | 100 a |
| LED AS-i ok | LED yeşil: · ON: AS-Interface voltage OK · OFF: overload or no supply voltage |
| Fusing | T10A HBC (not accessible) |
| Rated Çalışma gerilimi | 24 VDC · 18 ... 32,4 VDC (continuous operation) · 14 ... 18 VDC (max. 60 s or with derating) · max. 36 VDC (max. continuous input voltage with no damage to the DC/DC converter) |
AS-Interface power supply
- Output current max. 4 A
- PELV
- Input voltage 24 V DC
- LED operating display
- 90.5 % efficiency level
AS-Interface power supply, data decoupling, 4 A, 24 V DC input voltage
VAN-24DC-K28
| UL File Number | E223176 |
|---|---|
| MTBF | 100 a |
| LED AS-i ok | LED yeşil: · ON: AS-Interface voltage OK · OFF: overload or no supply voltage |
| Fusing | T10A HBC (not accessible) |
| Rated Çalışma gerilimi | 24 VDC · 18 ... 32,4 VDC (continuous operation) · 14 ... 18 VDC (max. 60 s or with derating) · max. 36 VDC (max. continuous input voltage with no damage to the DC/DC converter) |
| Rated Çalışma akımı | 5.6 A at 24 VDC |
| Efficiency | typ. 90.5 % (24 VDC, 4 A) |
| Kısa devre koruması/overload | > 5 A · < 9 A |
| Current limit | > 4.4 A |
| Voltage | 30.55 VDC ±3 % sabit setting |
| Current | 4 A |
| Residual ripple | < 50 m VSS (500 k Hz bandwidth, 50 Ω measurement, with ohmik yük) |
| Voltage limitation | max. 36 V |
| EMC Directive 2004/108/EC | EN 55022:2006, EN 55011:2009 Class B · EN 61000-6-3:2001 , EN 61204-3:2001 |
| Noise immunity | EN 61000-6-2:2005 |
| Emitted interference | EN 61000-6-3:2007 · EN 61000-3-2:2010 · EN 61000-3-3:2009 |
| Galvanic isolation | IEC 60364-4-41:2005 (PELV) · IEC 60950:1999 (SELV) |
| Koruma sınıfı | IEC 60529:2001 |
| Pollution degree | EN 60950-1:2006 |
| Shock and impact resistance | EN 60068-2-27:1995 |
| Vibration resistance | EN 60068-2-6:2008 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) · note derating |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Protection class | 1 (IEC 60536); Protective conductor Bağlantı necessary |
| Bağlantı | Bağlantı terminals, max. İletken kesiti · Flexible Kablo: 0.5 … 4 mm2 · Rigid Kablo: 0.5 … 6 mm2 · Stripping Uzunluk 7 mm |
| Ağırlık | yak. 500 g |
| Yükseklik | 124 mm |
| Genişlik | 40 mm |
| Uzunluk | 102 mm |
| Mounting | DIN mounting rail |
