Pepperl+Fuchs
AS-i

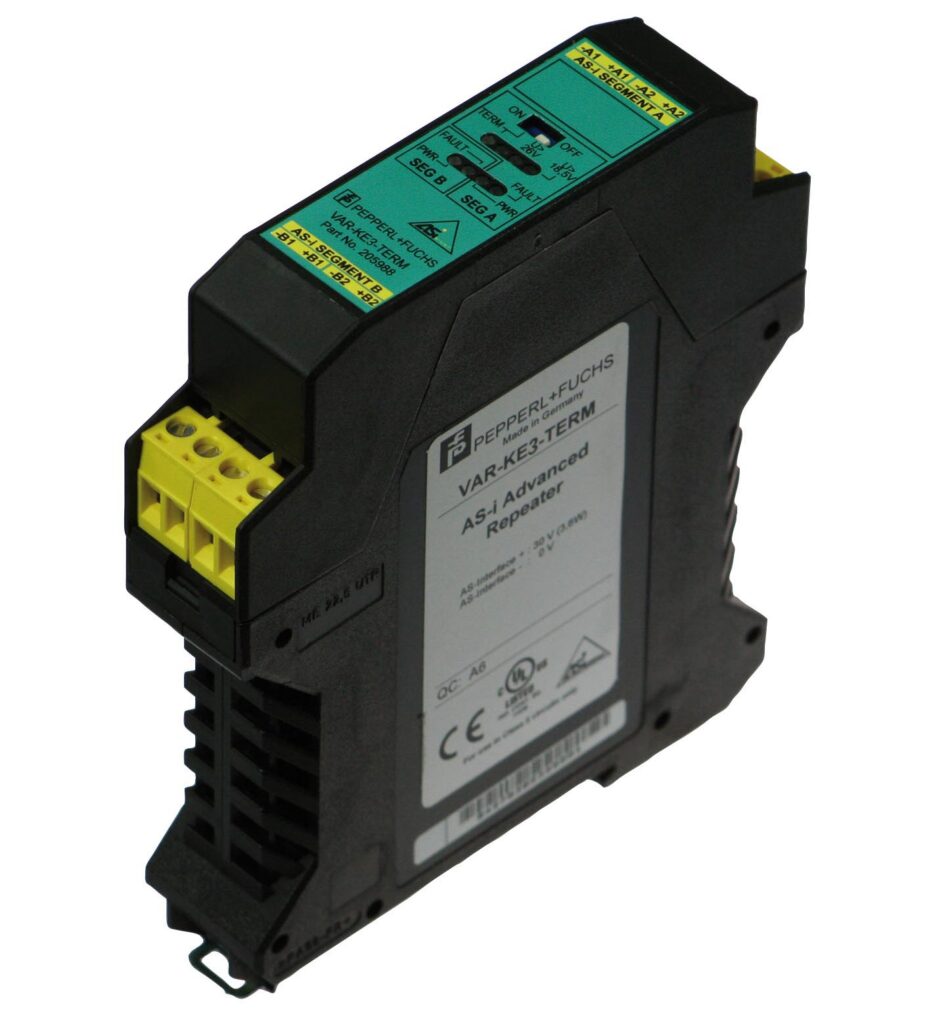

VAR-KE3-TERM
| AS-Interface specification | V3.0 |
|---|---|
| Required gateway specification | ≥ V2.0 |
| UL File Number | E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source |
| MTTFd | 155 a |
| Switch | TERM ON/OFF · switches the segment A terminator on/off |
AS-Interface repeater
- Minimum delay of signal
- Line lengthening by 100 m (max. 2 repeater in series)
- Galvanic isolation between AS-Interface segments A and B
- No parameterization
- Need no specific address on the AS-Interface bus
- Gövde with removable terminals
- The integrated terminator permits en fazla 200 m network lengths on Segment A
AS-Interface advanced repeater with terminator
VAR-KE3-TERM
| AS-Interface specification | V3.0 |
|---|---|
| Required gateway specification | ≥ V2.0 |
| UL File Number | E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source |
| MTTFd | 155 a |
| Switch | TERM ON/OFF · switches the segment A terminator on/off |
| LED FAULT SEG A | Segment A error display; kırmızı LED · kırmızı: communication error |
| LED FAULT SEG B | Segment B error display; kırmızı LED · kırmızı: communication error |
| LED PWR SEG A | AS interface voltage segment A; yeşil LED |
| LED PWR SEG B | AS-Interface voltage segment B; yeşil LED |
| LED TERM | Segment A bus terminator switched on |
| LED U>26V | Segment A voltage > 26 V |
| LED U>18,5V | Segment A voltage > 18.5 V |
| Insulation voltage | ≥ 500 V |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | 60 m A (per strand element), 120 m A (total) |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 EN 61000-6-3:2001 IEC 62026-2:2008 |
| UL onayı | An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed. UL mark does not provide UL certification for any functional safety rating or aspects of the device. |
| Ortam sıcaklığı | 0 ... 55 °C (32 ... 131 °F) |
| Storage temperature | -25 ... 75 °C (-13 ... 167 °F) |
| Koruma sınıfı | IP20 according to EN 60529 |
| Bağlantı | removable terminals, terminal Bağlantı ≤ 2.5 mm2 |
| Gövde | PA 66-FR |
| Yükseklik | 99 mm |
| Genişlik | 22.5 mm |
| Depth | 114 mm |
| Mounting | DIN mounting rail |
