233665

VBA-2E-G10-ZEJ-1M-2V1-W
Pepperl+Fuchs AS-i

VBA-2E-G10-ZEJ-1M-2V1-W

Kısa kod
233665
Ürün kodu
VBA-2E-G10-ZEJ-1M-2V1-W
Marka
Pepperl+Fuchs
[{"label" "Node type","value":"A/B node"},{"label":"AS-Interface specification","value":"V3.0"},{"label":"Required gateway specification","value":"≥ V2.0"},{"label":"Profile","value":"S-0.A.2"},{"label":"IO code","value":"0"},{"label":"ID code","value":"A"},{"label":"ID1 code","value":"7"},{"label":"ID2 code","value":"2"},{"label":"UL File Number","value":"E223772 "For use in NFPA 79 Applications only""},{"label":"LED FAULT","value":"error display; LED kırmızı · kırmızı: communication error or address is 0 · kırmızı flashing: overload of sensor power supply or outputs"},{"label":"LED AS-i","value":"AS-Interface voltage; LED yeşil"},{"label":"LED IN","value":"switching state (input); 2 LED sarı"},{"label":"Rated Çalışma gerilimi","value":"18.5 ... 31.6 V from AS-Interface"},{"label":"Rated Çalışma akımı","value":"≤ 40 m A (without sensors) / max. 120 m A"},{"label":"Protection class","value":"III"},{"label":"Number/Type","value":"2 inputs for 2- or 3 telli sensors (PNP), DC"},{"label":"Supply","value":"from AS-Interface"},{"label":"Voltage","value":"21 ... 31 V"},{"label":"Current loading capacity","value":"75 m A at TB ≤ 40 °C (104 °F) · 60 m A at TB ≤ 75 °C (167 °F) · overload and short-circuit resistant"},{"label":"Input current","value":"≤ 9 m A (limited internally)"},{"label":"Switching point","value":"according to DIN EN 61131-2 (Type 2)"},{"label":"0 (unattenuated)","value":"≤ 3 m A"},{"label":"1 (attenuated)","value":"≥ 5 m A"},{"label":"Signal delay","value":"< 1 ms (input/AS-Interface)"},{"label":"Directive 2014/30/EU","value":"EN 62026-2:2013"},{"label":"Koruma sınıfı","value":"EN 60529:2000"},{"label":"Fieldbus standard","value":"EN 62026-2:2013"},{"label":"Input","value":"EN 61131-2:2007"},{"label":"Emitted interference","value":"EN 61000-6-4:2007"},{"label":"AS-Interface","value":"EN 62026-2:2013"},{"label":"Noise immunity","value":"EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013"},{"label":"UL onayı","value":"c ULus Listed, Type 1 enclosure"},{"label":"Maximum permissible Ortam sıcaklığı","value":"max. 65 °C (max. 149 °F)"},{"label":"Ortam sıcaklığı","value":"-25 ... 70 °C (-13 ... 158 °F)"},{"label":"Storage temperature","value":"-25 ... 85 °C (-13 ... 185 °F)"},{"label":"Shock and impact resistance","value":"30 g, 11 ms in 6 spatial directions 3 shocks · 10 g, 16 ms in 6 spatial directions 1000 shocks"},{"label":"Vibration resistance","value":"0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles"},{"label":"Bağlantı","value":"AS-Interface: AS-Interface flat Kablo · Inputs & matching connector: X1 & X2, M12 plug, 4-pin, A-coded, in accordance with IEC 61076-2-101:2012"},{"label":"Contacts","value":"Cu Sn / Au"},{"label":"Gövde","value":"PBT PC"},{"label":"Body","value":"PUR, siyah"},{"label":"Kablo","value":"PUR"},{"label":"Mounting screw","value":"Stainless steel 1.4305 / AISI 303"},{"label":"Sheath çap","value":"∅4,3 mm"},{"label":"Renk","value":"siyah"},{"label":"Cores","value":"4 x 0.34 mm2"},{"label":"Uzunluk","value":"1 m"},{"label":"Ağırlık","value":"100 g"},{"label":"Sıkma torku, bağlama vidaları","value":"1.65 Nm"},{"label":"Sıkma torku, Kablo gland","value":"0.4 Nm"},{"label":"Yükseklik","value":"21.5 mm"},{"label":"Genişlik","value":"27.7 mm"}]
Teklif İste İletişim

AS-Interface sensor module

  • Ultra-compact enclosure
  • Gold-plated and machined contacts
  • One piece Gövde
  • Koruma sınıfı IP68 / IP69K
  • Direct Bağlantı via Kablo outlet

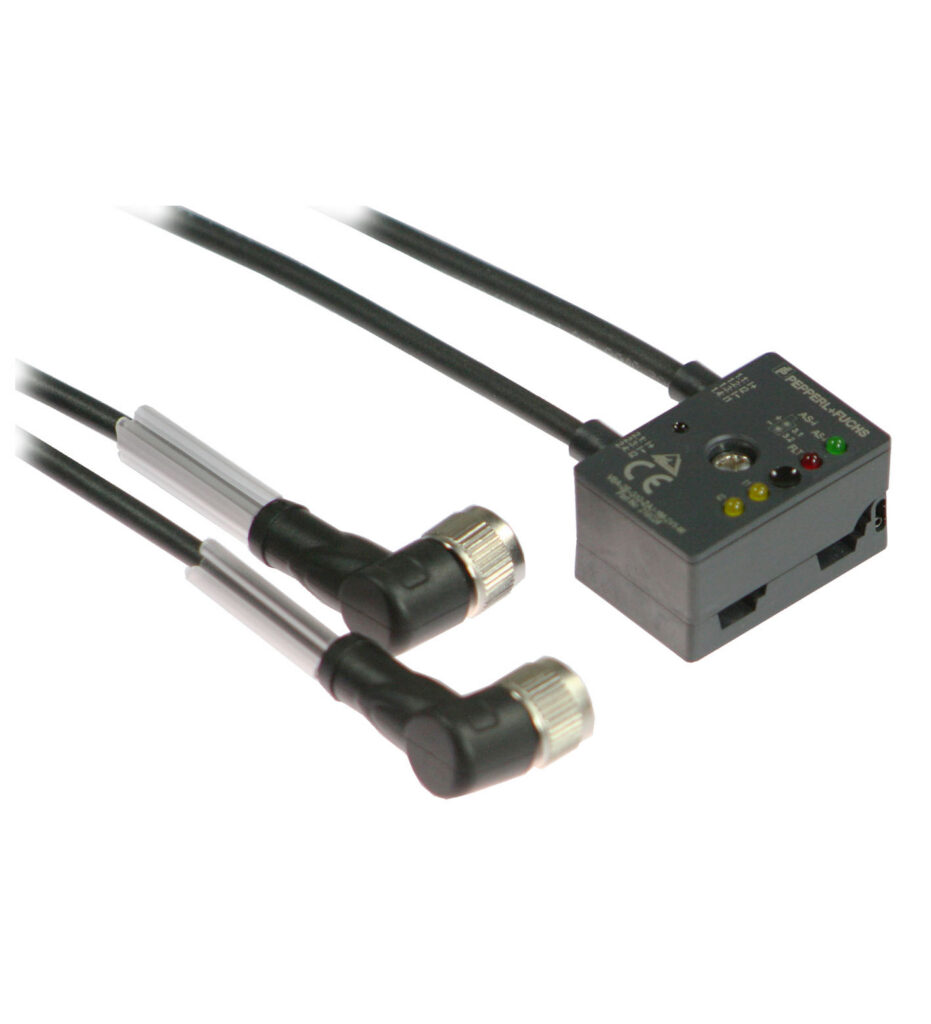

G10 ultra compact module, 2 inputs, 2 x M12 socket

VBA-2E-G10-ZEJ-1M-2V1-W

[{"label" "Node type","value":"A/B node"},{"label":"AS-Interface specification","value":"V3.0"},{"label":"Required gateway specification","value":"≥ V2.0"},{"label":"Profile","value":"S-0.A.2"},{"label":"IO code","value":"0"},{"label":"ID code","value":"A"},{"label":"ID1 code","value":"7"},{"label":"ID2 code","value":"2"},{"label":"UL File Number","value":"E223772 "For use in NFPA 79 Applications only""},{"label":"LED FAULT","value":"error display; LED kırmızı · kırmızı: communication error or address is 0 · kırmızı flashing: overload of sensor power supply or outputs"},{"label":"LED AS-i","value":"AS-Interface voltage; LED yeşil"},{"label":"LED IN","value":"switching state (input); 2 LED sarı"},{"label":"Rated Çalışma gerilimi","value":"18.5 ... 31.6 V from AS-Interface"},{"label":"Rated Çalışma akımı","value":"≤ 40 m A (without sensors) / max. 120 m A"},{"label":"Protection class","value":"III"},{"label":"Number/Type","value":"2 inputs for 2- or 3 telli sensors (PNP), DC"},{"label":"Supply","value":"from AS-Interface"},{"label":"Voltage","value":"21 ... 31 V"},{"label":"Current loading capacity","value":"75 m A at TB ≤ 40 °C (104 °F) · 60 m A at TB ≤ 75 °C (167 °F) · overload and short-circuit resistant"},{"label":"Input current","value":"≤ 9 m A (limited internally)"},{"label":"Switching point","value":"according to DIN EN 61131-2 (Type 2)"},{"label":"0 (unattenuated)","value":"≤ 3 m A"},{"label":"1 (attenuated)","value":"≥ 5 m A"},{"label":"Signal delay","value":"< 1 ms (input/AS-Interface)"},{"label":"Directive 2014/30/EU","value":"EN 62026-2:2013"},{"label":"Koruma sınıfı","value":"EN 60529:2000"},{"label":"Fieldbus standard","value":"EN 62026-2:2013"},{"label":"Input","value":"EN 61131-2:2007"},{"label":"Emitted interference","value":"EN 61000-6-4:2007"},{"label":"AS-Interface","value":"EN 62026-2:2013"},{"label":"Noise immunity","value":"EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013"},{"label":"UL onayı","value":"c ULus Listed, Type 1 enclosure"},{"label":"Maximum permissible Ortam sıcaklığı","value":"max. 65 °C (max. 149 °F)"},{"label":"Ortam sıcaklığı","value":"-25 ... 70 °C (-13 ... 158 °F)"},{"label":"Storage temperature","value":"-25 ... 85 °C (-13 ... 185 °F)"},{"label":"Shock and impact resistance","value":"30 g, 11 ms in 6 spatial directions 3 shocks · 10 g, 16 ms in 6 spatial directions 1000 shocks"},{"label":"Vibration resistance","value":"0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles"},{"label":"Bağlantı","value":"AS-Interface: AS-Interface flat Kablo · Inputs & matching connector: X1 & X2, M12 plug, 4-pin, A-coded, in accordance with IEC 61076-2-101:2012"},{"label":"Contacts","value":"Cu Sn / Au"},{"label":"Gövde","value":"PBT PC"},{"label":"Body","value":"PUR, siyah"},{"label":"Kablo","value":"PUR"},{"label":"Mounting screw","value":"Stainless steel 1.4305 / AISI 303"},{"label":"Sheath çap","value":"∅4,3 mm"},{"label":"Renk","value":"siyah"},{"label":"Cores","value":"4 x 0.34 mm2"},{"label":"Uzunluk","value":"1 m"},{"label":"Ağırlık","value":"100 g"},{"label":"Sıkma torku, bağlama vidaları","value":"1.65 Nm"},{"label":"Sıkma torku, Kablo gland","value":"0.4 Nm"},{"label":"Yükseklik","value":"21.5 mm"},{"label":"Genişlik","value":"27.7 mm"}]

Doküman henüz eklenmedi.

Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
