Pepperl+Fuchs
AS-i
VBA-4E-G11-I-F
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.1 |
| Profile | S-7.3.E |
| IO code | 7 |
AS-Interface analog module
- Addressing jack
- Function display for bus, internal and external sensor power supply, inputs
- Supply for inputs from AS-Interface or auxiliary voltage
- Koruma sınıfı IP68 / IP69K
- Accuracy ± 0.1 %
- Integrated shielding
- Channel-specific input monitoring

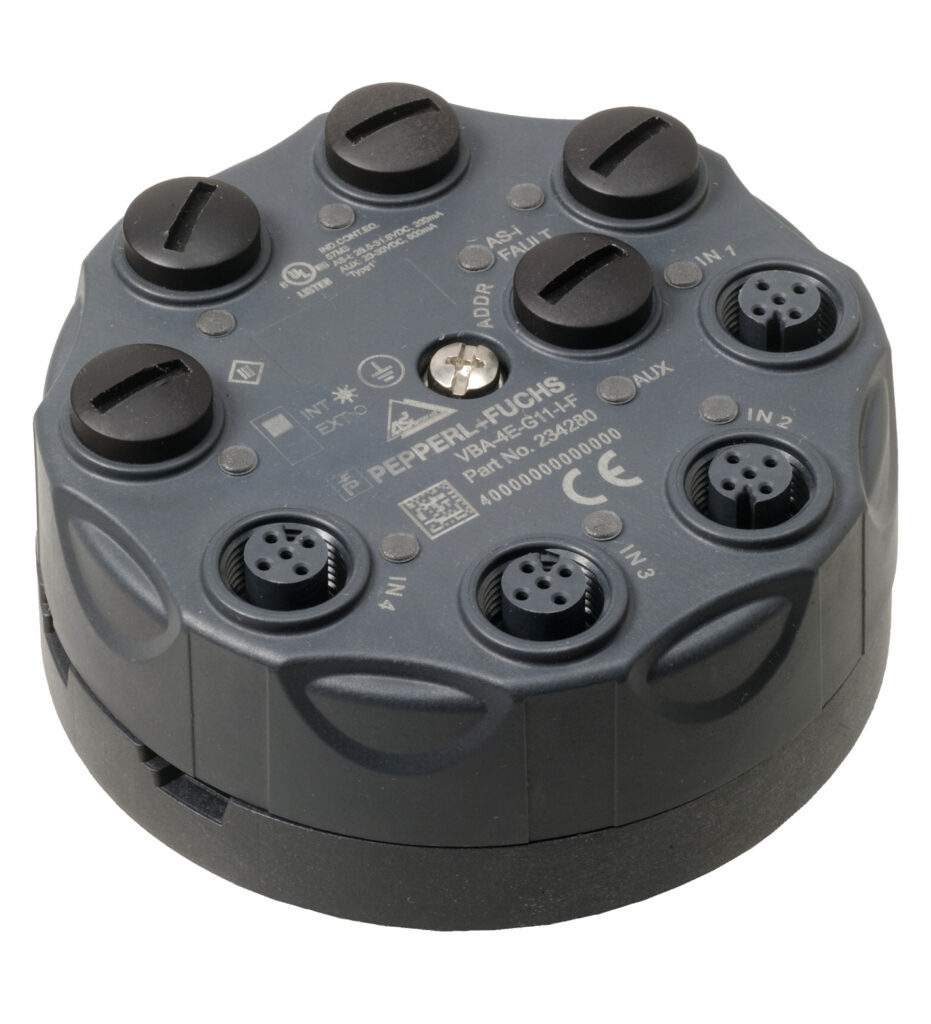

G11 analog module, 4 analog current inputs
VBA-4E-G11-I-F
| Node type | Standard node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.1 |
| Profile | S-7.3.E |
| IO code | 7 |
| ID code | 3 |
| ID1 code | F |
| ID2 code | E |
| UL File Number | E223772 |
| LED AS-i/FAULT | Status display; multi-renk LED · yeşil: normal operation · kırmızı: communication fault · Flashing sarı/kırmızı: address 0 · Flashing yeşil/kırmızı: peripheral fault |
| LED ANALOG | status of input signal; LED sarı · off: not active · on: signal within measuring range · flashing: signal outside of measuring range |
| LED AUX | ext. auxiliary voltage UAUX; dual LED yeşil/kırmızı · yeşil: voltage OK · kırmızı: reverse voltage |
| LED INT/EXT | status display input supply; LED yeşil · yeşil: input supply from AS-Interface · off: input supply from auxiliary voltage |
| Auxiliary voltage (output) | 20 ... 30 V DC PELV |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 60 m A (without sensors) / max. 200 m A |
| Protection class | III |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) |
| Number/Type | 4 Inputs · 0/4 ... 20 m A |
| Supply | from AS-Interface (switch position INT, default settings) or auxiliary voltage UEXT (switch position EXT) |
| Current loading capacity | ≤ 140 m A from AS-Interface; overload and short-circuit resistant · ≤ 600 m A from external auxiliary voltage UAUX , overload and kısa devre korumalı |
| Input resistance | max. 70 Ω |
| Accuracy | 0.1 % of full-scale value |
| Resolution | 16 Bit |
| Temperature influence | 0.0025 %/K of input signal range |
| Directive 2014/30/EU | EN 62026-2:2013 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2:2007 |
| Emitted interference | EN 61000-6-4:2007 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Pollution degree | 3 |
| Bağlantı | AS-Interface/UAUX: Kablo piercing method, flat Kablo sarı/flat Kablo siyah · Inputs: M12 round connector |
| Gövde | PBT PC |
| Mounting screw | Stainless steel 1.4305 / AISI 303 |
| Ağırlık | 200 g |
| Sıkma torku, Gövde screws | 1.8 Nm |
| Sıkma torku, Kablo gland | 0.4 Nm |
| Yükseklik | 35 mm |
| çap | 85 mm |
| Mounting | Mounting plate |
