Pepperl+Fuchs
AS-i

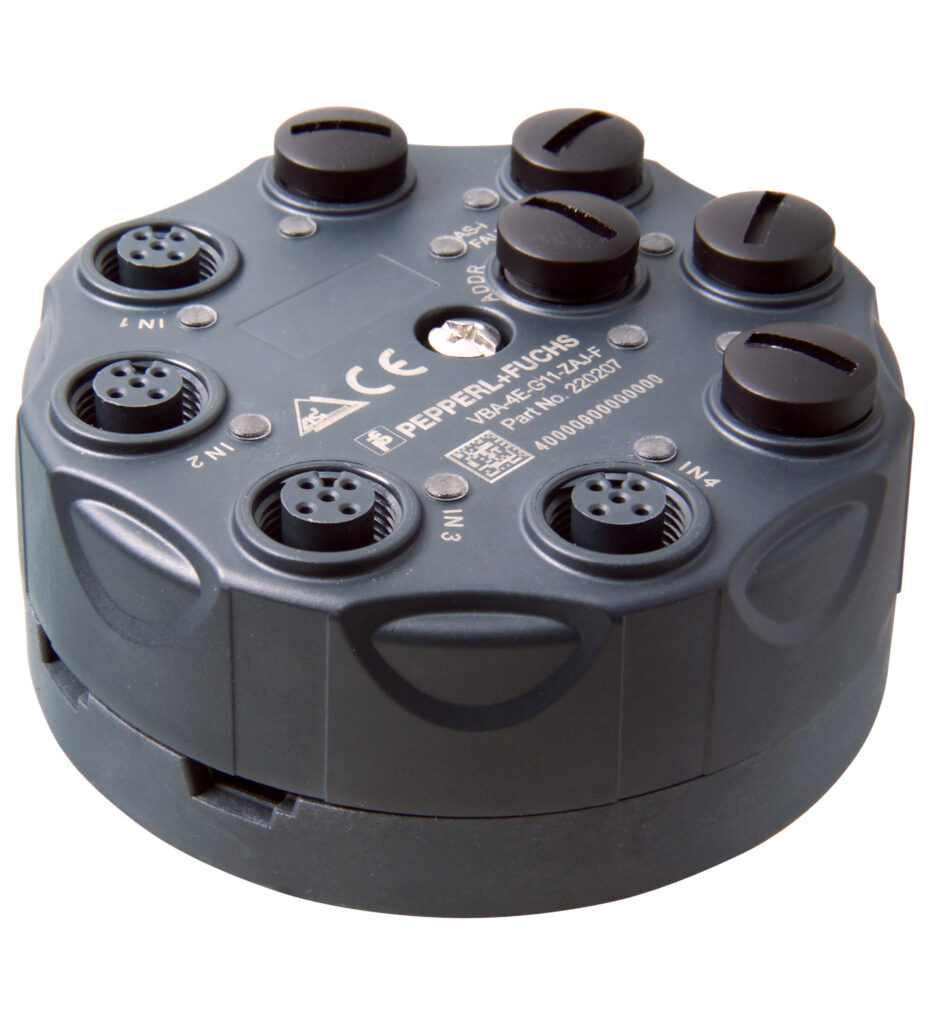

VBA-4E-G11-ZAJ-F
| Node type | A/B node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.1 |
| Profile | S-0.A.2 |
| IO code | 0 |
AS-Interface sensor module
- Inputs for 2-, 3-, and 4 telli sensors
- Supply of sensors from AS-Interface
- Function display for bus and inputs
- Koruma sınıfı IP68 / IP69K
- Communication monitoring
- Kablo piercing method with gold plated contact pins
- AS-Interface POWER24
G11 module, 4 inputs
VBA-4E-G11-ZAJ-F
| Node type | A/B node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.1 |
| Profile | S-0.A.2 |
| IO code | 0 |
| ID code | A |
| ID1 code | 7 |
| ID2 code | 2 |
| UL File Number | E223772 |
| LED AS-i/FAULT | Status display; multi-renk LED · yeşil: normal operation · kırmızı: communication fault · Flashing sarı/kırmızı: address 0 · Flashing yeşil/kırmızı: sensor supply overload |
| LED IN | switching state (input); 4 LED sarı |
| Rated Çalışma gerilimi | 18,0 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 40 m A (without sensors) / max. 240 m A |
| Protection class | III |
| Surge protection | Ue: Over voltage category III, safe isolated power supplies (PELV) |
| Number/Type | 4 inputs for 2- or 3 telli sensors (PNP), DC · option 2 inputs for 4 telli sensors (PNP), DC |
| Supply | from AS-Interface |
| Voltage | 12 ... 31 V |
| Current loading capacity | ≤ 200 m A, overload and kısa devre korumalı |
| Input current | ≤ 9 m A (limited internally) |
| Switching point | according to DIN EN 61131-2 (Type 2) |
| 0 (unattenuated) | ≤ 3 m A |
| 1 (attenuated) | ≥ 5 m A |
| Signal delay | < 1 ms (input/AS-Interface) |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2:2007 |
| Emitted interference | EN 61000-6-4:2007 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions 3 shocks · 10 g, 16 ms in 6 spatial directions 1000 shocks |
| Vibration resistance | 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles |
| Pollution degree | 3 |
| Bağlantı | AS-Interface: AS-Interface flat Kablo · Inputs: M12 round connector |
| Gövde | PBT PC |
| Mounting screw | Stainless steel 1.4305 / AISI 303 |
| Ağırlık | 200 g |
| Sıkma torku, Gövde screws | 1.8 Nm |
| Sıkma torku, Kablo gland | 0.4 Nm |
| Yükseklik | 35 mm |
| çap | 85 mm |
| Mounting | Mounting plate |
