Pepperl+Fuchs
AS-i

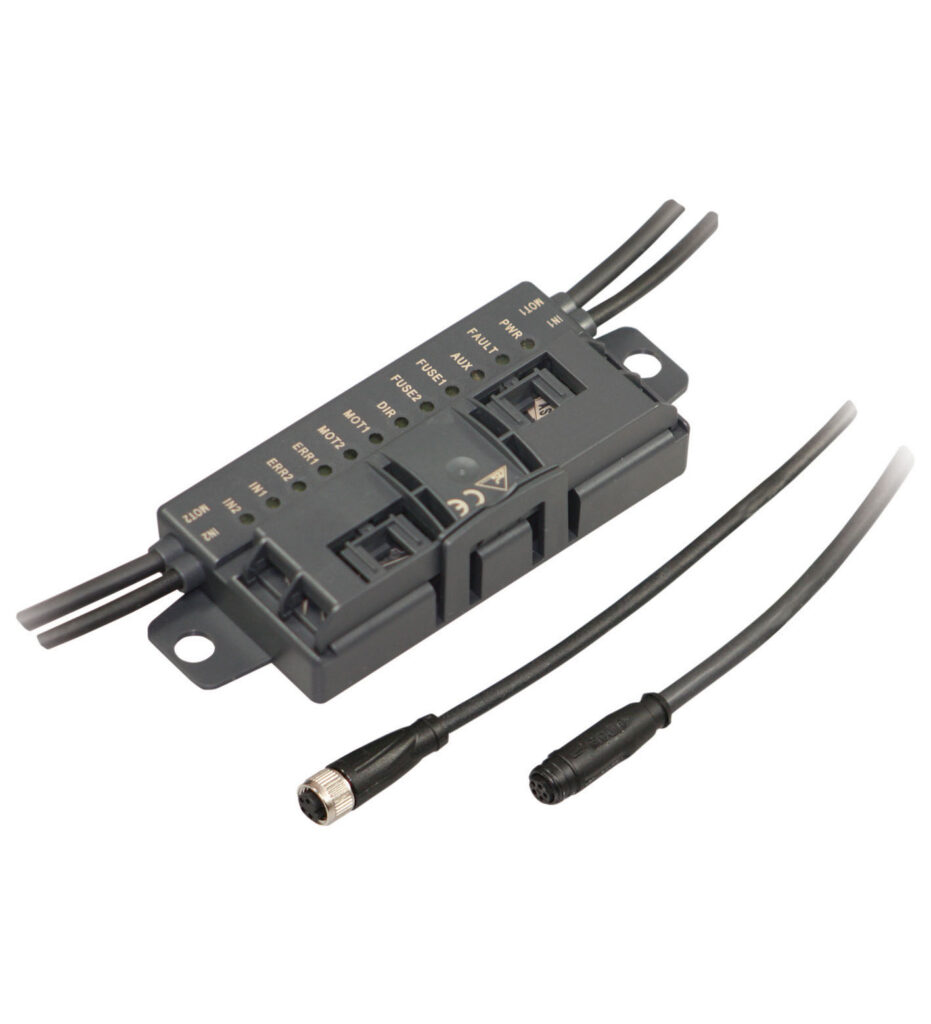

VBA-4E3A-G20-ZEL/M1L-P6
| [{"label" | "Node type","value":"A/B node"},{"label":"AS-Interface specification","value":"V3.0"},{"label":"Required gateway specification","value":"≥ V2.1"},{"label":"Profile","value":"S-7.A.E"},{"label":"IO code","value":"7"},{"label":"ID code","value":"A"},{"label":"ID1 code","value":"6"},{"label":"ID2 code","value":"E"},{"label":"UL File Number","value":"E223772 "For use in NFPA 79 Applications only""},{"label":"MTBF","value":"98 a"},{"label":"Compatible roller motors","value":"Interroll EC310 · Interroll EC5000 24 V AI (20 W / 35 W / 50 W) · Rulmeca BL3 · Itoh Denki PM500XK · Itoh Denki PM500XC · PULSEROLLER Senergy-IDC · MTA MRD50 (A interface, 24 V to 40 W) · WWL R-*-H + CE23XX · Conveline RM50 · Mambaroll Built-In Drive Roller 50"},{"label":"LED FAULT","value":"error display; LED kırmızı · kırmızı: communication error or address is 0 · kırmızı flashing: overload of sensor supply or external auxiliary voltage UAUX missing"},{"label":"LED ERR","value":"Motor fault: 2 LED sarı"},{"label":"LED PWR","value":"AS-Interface voltage; yeşil LED · yeşil: voltage OK · yeşil flashing: address 0 or sensor supply overload or external auxiliary voltage UAUX missing"},{"label":"LED AUX","value":"ext. auxiliary voltage UAUX; dual LED yeşil/kırmızı · yeşil: voltage OK · kırmızı: reverse voltage"},{"label":"LED IN","value":"switching state (input); 2 LED sarı"},{"label":"LED FUSE","value":"Motor power supply; 2 yeşil LEDs"},{"label":"LED DIR","value":"Motor rotation direction; sarı LED"},{"label":"LED MOT","value":"Motor active; 2 sarı LEDs"},{"label":"Auxiliary voltage (output)","value":"18 ... 30 VDC PELV"},{"label":"Rated Çalışma gerilimi","value":"26.5 ... 31.6 V from AS-Interface"},{"label":"Rated Çalışma akımı","value":"≤ 35 m A"},{"label":"Number/Type","value":"2 Inputs for 3 telli sensors (PNP), DC"},{"label":"Supply","value":"from external auxiliary voltage UAUX"},{"label":"Current loading capacity","value":"500 m A , overload and kısa devre korumalı"},{"label":"Input current","value":"≤ 8 m A (limited internally)"},{"label":"Switching point","value":"according to DIN EN 61131-2 · 0 (undamped) ≤ 0.5 m A · 1 (damped) ≥ 2.0 m A"},{"label":"Signal delay","value":"< 1 ms (input/AS-Interface)"},{"label":"Input filter","value":"2 ms"},{"label":"Current","value":"3.5 A continuous current , 5 A ( |
|---|
ASi Motor Roller Module
- A/B node with extended addressing possibility for en fazla 62 nodes
- Inputs for 3 telli sensors
- Outputs for DC roller motors (drum motors)
- Bağlantı of motors and sensors via M8 connectors
- Configurable start/stop ramps
- Communication monitoring
- Power supply of the inputs and outputs from the external auxiliary voltage
- Function display for bus, external auxiliary voltage, in- and outputs
- Kablo piercing method with gold plated contact pins
G20 MDR module with AS-Interface for 4 digital inputs and 2 connections for MDRs
VBA-4E3A-G20-ZEL/M1L-P6
| [{"label" | "Node type","value":"A/B node"},{"label":"AS-Interface specification","value":"V3.0"},{"label":"Required gateway specification","value":"≥ V2.1"},{"label":"Profile","value":"S-7.A.E"},{"label":"IO code","value":"7"},{"label":"ID code","value":"A"},{"label":"ID1 code","value":"6"},{"label":"ID2 code","value":"E"},{"label":"UL File Number","value":"E223772 "For use in NFPA 79 Applications only""},{"label":"MTBF","value":"98 a"},{"label":"Compatible roller motors","value":"Interroll EC310 · Interroll EC5000 24 V AI (20 W / 35 W / 50 W) · Rulmeca BL3 · Itoh Denki PM500XK · Itoh Denki PM500XC · PULSEROLLER Senergy-IDC · MTA MRD50 (A interface, 24 V to 40 W) · WWL R-*-H + CE23XX · Conveline RM50 · Mambaroll Built-In Drive Roller 50"},{"label":"LED FAULT","value":"error display; LED kırmızı · kırmızı: communication error or address is 0 · kırmızı flashing: overload of sensor supply or external auxiliary voltage UAUX missing"},{"label":"LED ERR","value":"Motor fault: 2 LED sarı"},{"label":"LED PWR","value":"AS-Interface voltage; yeşil LED · yeşil: voltage OK · yeşil flashing: address 0 or sensor supply overload or external auxiliary voltage UAUX missing"},{"label":"LED AUX","value":"ext. auxiliary voltage UAUX; dual LED yeşil/kırmızı · yeşil: voltage OK · kırmızı: reverse voltage"},{"label":"LED IN","value":"switching state (input); 2 LED sarı"},{"label":"LED FUSE","value":"Motor power supply; 2 yeşil LEDs"},{"label":"LED DIR","value":"Motor rotation direction; sarı LED"},{"label":"LED MOT","value":"Motor active; 2 sarı LEDs"},{"label":"Auxiliary voltage (output)","value":"18 ... 30 VDC PELV"},{"label":"Rated Çalışma gerilimi","value":"26.5 ... 31.6 V from AS-Interface"},{"label":"Rated Çalışma akımı","value":"≤ 35 m A"},{"label":"Number/Type","value":"2 Inputs for 3 telli sensors (PNP), DC"},{"label":"Supply","value":"from external auxiliary voltage UAUX"},{"label":"Current loading capacity","value":"500 m A , overload and kısa devre korumalı"},{"label":"Input current","value":"≤ 8 m A (limited internally)"},{"label":"Switching point","value":"according to DIN EN 61131-2 · 0 (undamped) ≤ 0.5 m A · 1 (damped) ≥ 2.0 m A"},{"label":"Signal delay","value":"< 1 ms (input/AS-Interface)"},{"label":"Input filter","value":"2 ms"},{"label":"Current","value":"3.5 A continuous current , 5 A ( |
|---|
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
