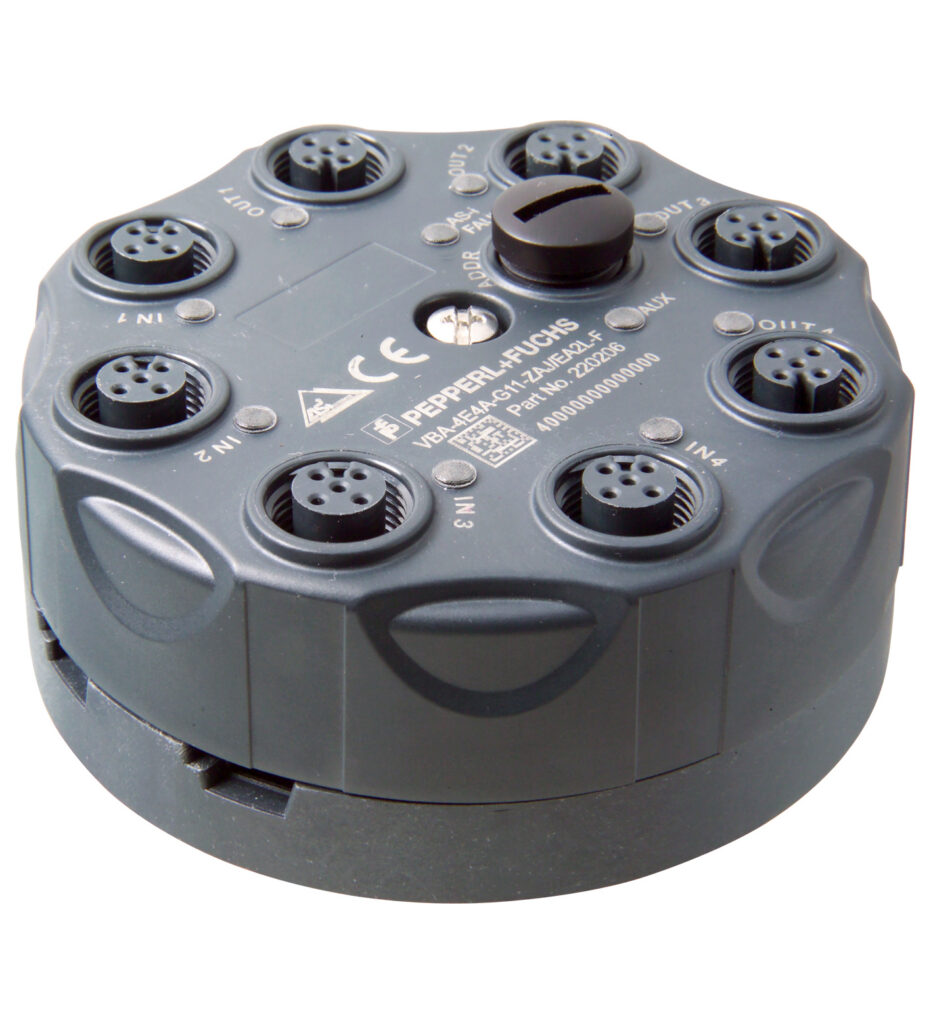

VBA-4E4A-G11-ZAJ/EA2L-F
| Node type | A/B node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V3.0 |
| Profile | S-7.A.7 |
| IO code | 7 |
AS-Interface sensor/actuator module
- Inputs for 2-, 3-, and 4 telli sensors
- Power supply of outputs from the external auxiliary voltage
- Supply of sensors from AS-Interface
- Function display for bus, external auxiliary voltage, in- and outputs
- kırmızı LED per channel, lights up in the event of output overload
- Communication monitoring
- Switchable lead breakage detection (outputs)
- Kablo piercing method with gold plated contact pins
- Koruma sınıfı IP68 / IP69K
- AS-Interface POWER24
G11 module, 4 inputs and 4 outputs
VBA-4E4A-G11-ZAJ/EA2L-F
| Node type | A/B node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V3.0 |
| Profile | S-7.A.7 |
| IO code | 7 |
| ID code | A |
| ID1 code | 7 |
| ID2 code | 7 |
| UL File Number | E223772 |
| LED AS-i/FAULT | Status display; multi-renk LED · yeşil: normal operation · kırmızı: communication fault · Flashing sarı/kırmızı: address 0 · Flashing yeşil/kırmızı: sensor supply i.e. overload or lead interruption outputs |
| LED AUX | ext. auxiliary voltage UAUX; dual LED yeşil/kırmızı · yeşil: voltage OK · kırmızı: reverse voltage |
| LED IN | switching state (input); 4 LED sarı |
| LED OUT | switching state (output); 4 LED sarı/kırmızı · sarı: output active · kırmızı: output overload or lead interruption |
| Auxiliary voltage (output) | 20 ... 30 V DC PELV |
| Rated Çalışma gerilimi | 18,0 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 40 m A (without sensors) / max. 240 m A |
| Protection class | III |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) |
| Number/Type | 4 inputs for 2- or 3 telli sensors (PNP), DC · option 2 inputs for 4 telli sensors (PNP), DC |
| Supply | from AS-Interface |
| Voltage | 12 ... 31 V |
| Current loading capacity | ≤ 200 m A, overload and kısa devre korumalı |
| Input current | ≤ 9 m A (limited internally) |
| Switching point | according to DIN EN 61131-2 (Type 2) |
| 0 (unattenuated) | ≤ 3 m A |
| 1 (attenuated) | ≥ 5 m A |
| Signal delay | < 1 ms (input/AS-Interface) |
| Current | 2 A per output · TB ≤ 40 °C: 6 A total · TB ≤ 70 °C: sum O1 + O2 max. 2 A, sum O3 + O4 max. 2 A |
| Input/Output | safe isolation, rated insulation voltage 40 V DC |
| Output/AS-Interface | safe isolation, rated insulation voltage 40 V DC |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2:2007 |
| Emitted interference | EN 61000-6-4:2007 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions 3 shocks · 10 g, 16 ms in 6 spatial directions 1000 shocks |
| Vibration resistance | 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles |
| Pollution degree | 3 |
| Bağlantı | AS-Interface/UAUX: AS-Interface flat Kablo · Inputs/outputs: M12 round connector |
| Gövde | PBT PC |
| Mounting screw | Stainless steel 1.4305 / AISI 303 |
| Ağırlık | 200 g |
| Sıkma torku, Gövde screws | 1.8 Nm |
| Sıkma torku, Kablo gland | 0.4 Nm |
| Yükseklik | 35 mm |
| çap | 85 mm |
| Mounting | Mounting plate |
