Pepperl+Fuchs
AS-i
VBA-4E4A-G16-ZEJ/E2L
| Node type | A/B node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V3.0 |
| Profile | S-7.A.7 |
| IO code | 7 |
AS-Interface sensor/actuator module
- Compact design
- Connections via round connector
- AS-Interface Bağlantı via M12 metal threaded insert with SPEEDCON
- Function display for bus, ext. auxiliary voltage, inputs and outputs
- Koruma sınıfı IP67 / IP68 / IP69K
- Inputs for 2- and 3 telli sensors
- Supply for inputs from AS-Interface
- Power supply of outputs from the external auxiliary voltage
- Communication monitoring
- Detection of overload on sensor supply
- Detection of output overload with LED per channel

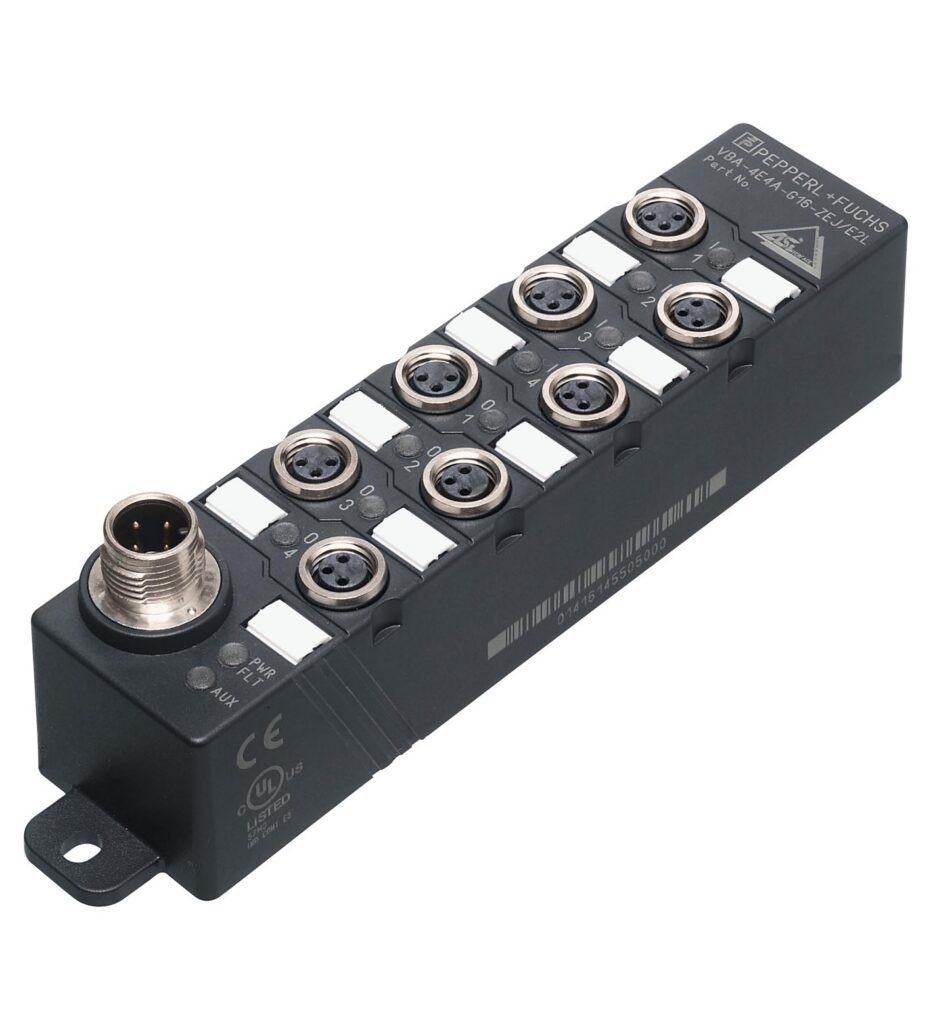

G16 compact module, 4 inputs (PNP) and 4 electronic outputs
VBA-4E4A-G16-ZEJ/E2L
| Node type | A/B node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V3.0 |
| Profile | S-7.A.7 |
| IO code | 7 |
| ID code | A |
| ID1 code | 7 |
| ID2 code | 7 |
| UL File Number | E223772 |
| LED PWR/FAULT | Status display; multi-renk LED · yeşil: normal operation · kırmızı: communication fault · Flashing sarı/kırmızı: address 0 · Flashing yeşil/kırmızı: sensor supply or output overload |
| LED AUX | ext. auxiliary voltage UAUX; dual LED yeşil/kırmızı · yeşil: voltage OK · kırmızı: reverse voltage |
| LED IN | switching state (input); 4 LED sarı |
| LED OUT | Switching status (output); 4 sarı/kırmızı LEDs · sarı: output active · kırmızı: output overload |
| Auxiliary voltage (output) | 20 ... 30 V DC PELV |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 40 m A (without sensors) / max. 240 m A |
| Protection class | III |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) |
| Number/Type | 4 inputs for 2- or 3 telli sensors (PNP), DC |
| Supply | from AS-Interface |
| Voltage | 21 ... 31 V |
| Current loading capacity | ≤ 200 m A (TB ≤ 40 °C), · ≤ 150 m A (TB ≤ 70 °C), overload-proof and kısa devre korumalı |
| Input current | ≤ 9 m A (limited internally) |
| Switching point | according to DIN EN 61131-2 (Type 2) |
| 0 (unattenuated) | ≤ 3 m A |
| 1 (attenuated) | ≥ 5 m A |
| Signal delay | < 1 ms (input/AS-Interface) |
| Current | 1 A per output |
| Usage category | DC-13 |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2 |
| Emitted interference | EN 61000-6-4:2007 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61000-6-2:2005 EN 62026-2:2013 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions 3 shocks · 10 g, 16 ms in 6 spatial directions 1000 shocks |
| Vibration resistance | 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles |
| Pollution degree | 3 |
| Bağlantı | AS-Interface and auxiliary voltage: M12 x 1 round connector · sensors/actuators: M8 x 1 round connector |
| Gövde | PBT |
| Ağırlık | 150 g |
| Sıkma torku, Kablo gland | 0.4 Nm (M12 connector), · 0.2 Nm (M8 connector) |
| Yükseklik | 29.35 mm |
| Genişlik | 30 mm |
| Uzunluk | 143 mm |
| Mounting | screw mounting |
