263814

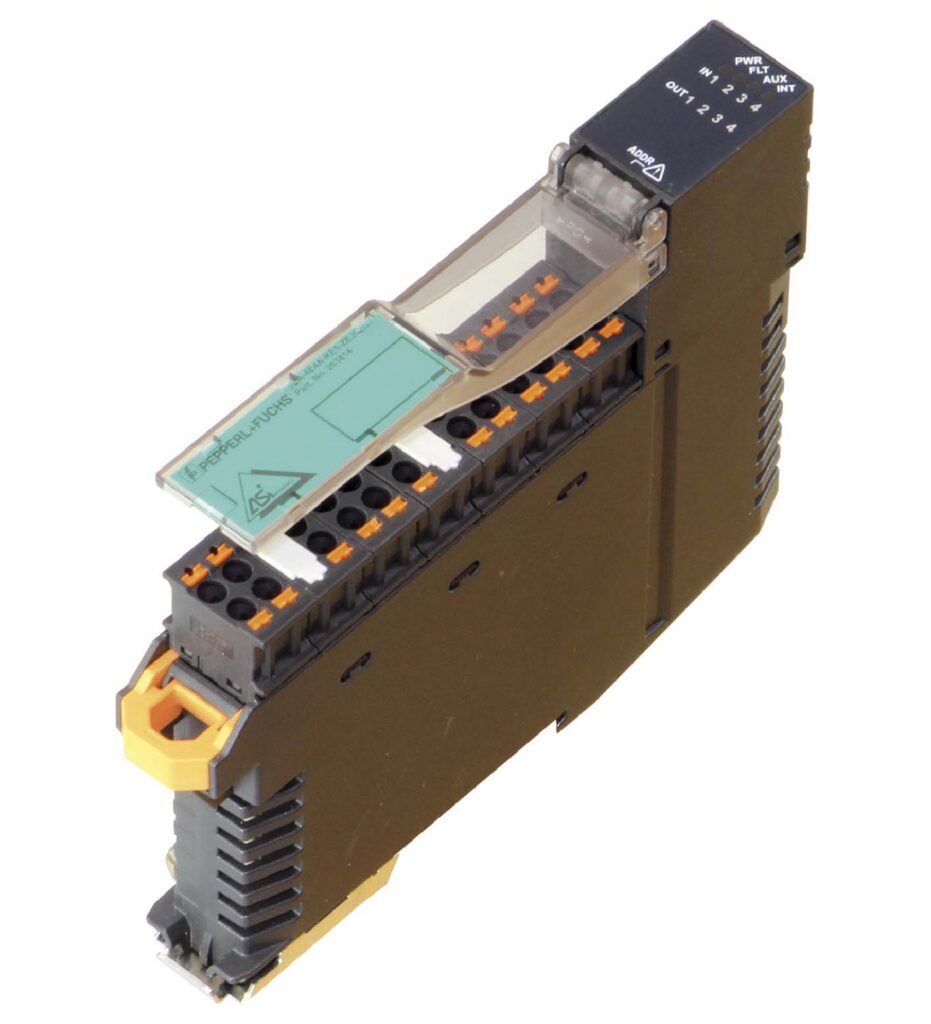

VBA-4E4A-KE5-ZEJQ/R
Pepperl+Fuchs AS-i

VBA-4E4A-KE5-ZEJQ/R

Kısa kod
263814
Ürün kodu
VBA-4E4A-KE5-ZEJQ/R
Marka
Pepperl+Fuchs
[{"label" "Node type","value":"A/B node"},{"label":"AS-Interface specification","value":"V3.0"},{"label":"Required gateway specification","value":"≥ V3.0"},{"label":"UL File Number","value":"E223772"},{"label":"MTBF","value":"224 a"},{"label":"LED FAULT","value":"Fault display; kırmızı LED · kırmızı: Communication fault or address is 0 · kırmızı, flashing: Overload, internal input supply"},{"label":"LED INT","value":"Internal input supply active; LED yeşil"},{"label":"LED PWR","value":"AS-Interface voltage; yeşil LED · yeşil: voltage OK · flashing yeşil: address 0"},{"label":"LED IN","value":"switching state (input); 4 LED sarı"},{"label":"LED OUT","value":"Switching state (output); 4 LED sarı"},{"label":"Auxiliary voltage (input)","value":"12 ... 30 V DC PELV"},{"label":"Rated Çalışma gerilimi","value":"26.5 ... 31.6 V from AS-Interface"},{"label":"Rated Çalışma akımı","value":"≤ 35 m A (without sensors) / max. 230 m A"},{"label":"Surge protection","value":"O1 ... O4: Over voltage category II · UEXT, Ue: overvoltage category II, safe isolated power supplies (PELV)"},{"label":"Number/Type","value":"4 inputs for 3 telli sensors (PNP), DC"},{"label":"Supply","value":"from AS-Interface (switch position INT, default settings) or external UEXT (switch position EXT)"},{"label":"Voltage","value":"21 ... 31 V DC (INT)"},{"label":"Current loading capacity","value":"≤ 150 m A, overload- and kısa devre korumalı (INT)"},{"label":"Input current","value":"≤ 5.6 m A (max.)"},{"label":"Switching point","value":"according to DIN EN 61131-2 (type 1)"},{"label":"0 (unattenuated)","value":"≤ 0.5 m A"},{"label":"1 (attenuated)","value":"≥ 2 m A"},{"label":"Signal delay","value":"< 1 ms (input/AS-Interface)"},{"label":"Per contact","value":"2 A/30 VDC; 2 A/250 VAC · For more information, see the "Galvanic Isolation" section"},{"label":"Per module","value":"8 A"},{"label":"Control circuit","value":"≤ 11 m A per relay (from AS-Interface)"},{"label":"Switching delay","value":"< 10 ms (AS-Interface/contact)"},{"label":"Usage category","value":"DC-13 and AC-14"},{"label":"Overload protection","value":"fuse unit 2 A required in the load current circuit"},{"label":"Input/Output","value":"safe isolation, Rated insulation voltage 252 Veff"},{"label":"Input/AS-Interface","value":"Switch position INT: None Switch setting EXT: safe isolation, rated insulation voltage 92 Veff"},{"label":"Output/Output","value":"Basic insulation, rated insulation voltage 250 Veff, in phase"},{"label":"Output/AS-Interface","value":"safe isolation, Rated insulation voltage 252 Veff"},{"label":"Directive 2014/30/EU","value":"EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007"},{"label":"Directive 2006/95/EC","value":"EN 60664-1:2007"},{"label":"Galvanic isolation","value":"EN 60664-1:2007"},{"label":"Koruma sınıfı","value":"EN 60529:2000"},{"label":"Fieldbus standard","value":"EN 62026-2:2013"},{"label":"Electrical safety","value":"IEC 61140:2009"},{"label":"Input","value":"EN 61131-2:2004"},{"label":"Emitted interference","value":"EN 61000-6-4:2007"},{"label":"AS-Interface","value":"EN 62026-2:2013"},{"label":"Noise immunity","value":"EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013"},{"label":"Profile","value":"S-7.A.7"},{"label":"IO code","value":"7"},{"label":"ID code","value":"A"},{"label":"ID1 code","value":"7"},{"label":"ID2 code","value":"7"},{"label":"Data bits (function via AS-Interface)","value":"Input Output"},{"label":"D0","value":"IN1 O1"},{"label":"D1","value":"IN2 O2"},{"label":"D2","value":"IN3 O3"},{"label":"D3","value":"IN4 O4"},{"label":"Parameter bits (programmable via AS-i)","value":"function"},{"label":"P0","value":"Communication monitoring · P0 = 0 monitoring = off, the outputs maintain the status if communication fails · P0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings)"},{"label":"P1","value":"Input filter · P1 = 0 input filter on, pulse suppression ≤ 2 ms · P1 = 1 input filter off (default settings)"},{"label":"P2","value":"Synchronous mode · P2 = 0 synchronous mode on · P2 = 1 synchronous mode off (default settings)"},{"label":"P3","value":"not used"},{"label":"Ortam sıcaklığı","value":"-25 ... 60 °C (-13 ... 140 °F)"},{"label":"Storage temperature","value":"-25 ... 85 °C (-13 ... 185 °F)"},{"label":"Relative humidity","value":"85 % , non-condensing"},{"label":"Climatic conditions","value":"For indoor use only"},{"label":"Altitude","value":"≤ 2000 m above MSL"},{"label":"Shock and impact resistance","value":"15 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks"},{"label":"Vibration resistance","value":"0.35 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles"},{"label":"Pollution degree","value":"2"},{"label":"Bağlantı","value":"Removable push-in terminals · rated Bağlantı capacity: · rigid: 0.20 mm2 ... 1.5 mm2 · flexible (yüksüksüz): 0.20 mm2 ... 2.5 mm2 · flexible (with wire end ferrule): 0.25 mm2 ... 1.5 mm2"},{"label":"Gövde","value":"PA 66-FR"},{"label":"Ağırlık","value":"125 g"},{"label":"Yükseklik","value":"100 mm"},{"label":"Genişlik","value":"18.9 mm"},{"label":"Uzunluk","value":"124 mm"},{"label":"Mounting","value":"DIN mounting rail"}]
Teklif İste İletişim

AS-Interface sensor/actuator module

  • Gövde with push-in Bağlantı technology and mechanically coded terminal blocks
  • Gövde Genişlik 19 mm, Montaj in the switch cabinet on DIN mounting rail
  • Selectable supply to the sensors: External or from the module
  • Function display for bus, internal sensor supply, inputs, and outputs

Cabinet module, 4 inputs and 4 relay outputs

VBA-4E4A-KE5-ZEJQ/R

[{"label" "Node type","value":"A/B node"},{"label":"AS-Interface specification","value":"V3.0"},{"label":"Required gateway specification","value":"≥ V3.0"},{"label":"UL File Number","value":"E223772"},{"label":"MTBF","value":"224 a"},{"label":"LED FAULT","value":"Fault display; kırmızı LED · kırmızı: Communication fault or address is 0 · kırmızı, flashing: Overload, internal input supply"},{"label":"LED INT","value":"Internal input supply active; LED yeşil"},{"label":"LED PWR","value":"AS-Interface voltage; yeşil LED · yeşil: voltage OK · flashing yeşil: address 0"},{"label":"LED IN","value":"switching state (input); 4 LED sarı"},{"label":"LED OUT","value":"Switching state (output); 4 LED sarı"},{"label":"Auxiliary voltage (input)","value":"12 ... 30 V DC PELV"},{"label":"Rated Çalışma gerilimi","value":"26.5 ... 31.6 V from AS-Interface"},{"label":"Rated Çalışma akımı","value":"≤ 35 m A (without sensors) / max. 230 m A"},{"label":"Surge protection","value":"O1 ... O4: Over voltage category II · UEXT, Ue: overvoltage category II, safe isolated power supplies (PELV)"},{"label":"Number/Type","value":"4 inputs for 3 telli sensors (PNP), DC"},{"label":"Supply","value":"from AS-Interface (switch position INT, default settings) or external UEXT (switch position EXT)"},{"label":"Voltage","value":"21 ... 31 V DC (INT)"},{"label":"Current loading capacity","value":"≤ 150 m A, overload- and kısa devre korumalı (INT)"},{"label":"Input current","value":"≤ 5.6 m A (max.)"},{"label":"Switching point","value":"according to DIN EN 61131-2 (type 1)"},{"label":"0 (unattenuated)","value":"≤ 0.5 m A"},{"label":"1 (attenuated)","value":"≥ 2 m A"},{"label":"Signal delay","value":"< 1 ms (input/AS-Interface)"},{"label":"Per contact","value":"2 A/30 VDC; 2 A/250 VAC · For more information, see the "Galvanic Isolation" section"},{"label":"Per module","value":"8 A"},{"label":"Control circuit","value":"≤ 11 m A per relay (from AS-Interface)"},{"label":"Switching delay","value":"< 10 ms (AS-Interface/contact)"},{"label":"Usage category","value":"DC-13 and AC-14"},{"label":"Overload protection","value":"fuse unit 2 A required in the load current circuit"},{"label":"Input/Output","value":"safe isolation, Rated insulation voltage 252 Veff"},{"label":"Input/AS-Interface","value":"Switch position INT: None Switch setting EXT: safe isolation, rated insulation voltage 92 Veff"},{"label":"Output/Output","value":"Basic insulation, rated insulation voltage 250 Veff, in phase"},{"label":"Output/AS-Interface","value":"safe isolation, Rated insulation voltage 252 Veff"},{"label":"Directive 2014/30/EU","value":"EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007"},{"label":"Directive 2006/95/EC","value":"EN 60664-1:2007"},{"label":"Galvanic isolation","value":"EN 60664-1:2007"},{"label":"Koruma sınıfı","value":"EN 60529:2000"},{"label":"Fieldbus standard","value":"EN 62026-2:2013"},{"label":"Electrical safety","value":"IEC 61140:2009"},{"label":"Input","value":"EN 61131-2:2004"},{"label":"Emitted interference","value":"EN 61000-6-4:2007"},{"label":"AS-Interface","value":"EN 62026-2:2013"},{"label":"Noise immunity","value":"EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013"},{"label":"Profile","value":"S-7.A.7"},{"label":"IO code","value":"7"},{"label":"ID code","value":"A"},{"label":"ID1 code","value":"7"},{"label":"ID2 code","value":"7"},{"label":"Data bits (function via AS-Interface)","value":"Input Output"},{"label":"D0","value":"IN1 O1"},{"label":"D1","value":"IN2 O2"},{"label":"D2","value":"IN3 O3"},{"label":"D3","value":"IN4 O4"},{"label":"Parameter bits (programmable via AS-i)","value":"function"},{"label":"P0","value":"Communication monitoring · P0 = 0 monitoring = off, the outputs maintain the status if communication fails · P0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings)"},{"label":"P1","value":"Input filter · P1 = 0 input filter on, pulse suppression ≤ 2 ms · P1 = 1 input filter off (default settings)"},{"label":"P2","value":"Synchronous mode · P2 = 0 synchronous mode on · P2 = 1 synchronous mode off (default settings)"},{"label":"P3","value":"not used"},{"label":"Ortam sıcaklığı","value":"-25 ... 60 °C (-13 ... 140 °F)"},{"label":"Storage temperature","value":"-25 ... 85 °C (-13 ... 185 °F)"},{"label":"Relative humidity","value":"85 % , non-condensing"},{"label":"Climatic conditions","value":"For indoor use only"},{"label":"Altitude","value":"≤ 2000 m above MSL"},{"label":"Shock and impact resistance","value":"15 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks"},{"label":"Vibration resistance","value":"0.35 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles"},{"label":"Pollution degree","value":"2"},{"label":"Bağlantı","value":"Removable push-in terminals · rated Bağlantı capacity: · rigid: 0.20 mm2 ... 1.5 mm2 · flexible (yüksüksüz): 0.20 mm2 ... 2.5 mm2 · flexible (with wire end ferrule): 0.25 mm2 ... 1.5 mm2"},{"label":"Gövde","value":"PA 66-FR"},{"label":"Ağırlık","value":"125 g"},{"label":"Yükseklik","value":"100 mm"},{"label":"Genişlik","value":"18.9 mm"},{"label":"Uzunluk","value":"124 mm"},{"label":"Mounting","value":"DIN mounting rail"}]

Doküman henüz eklenmedi.

Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
