Pepperl+Fuchs
AS-i

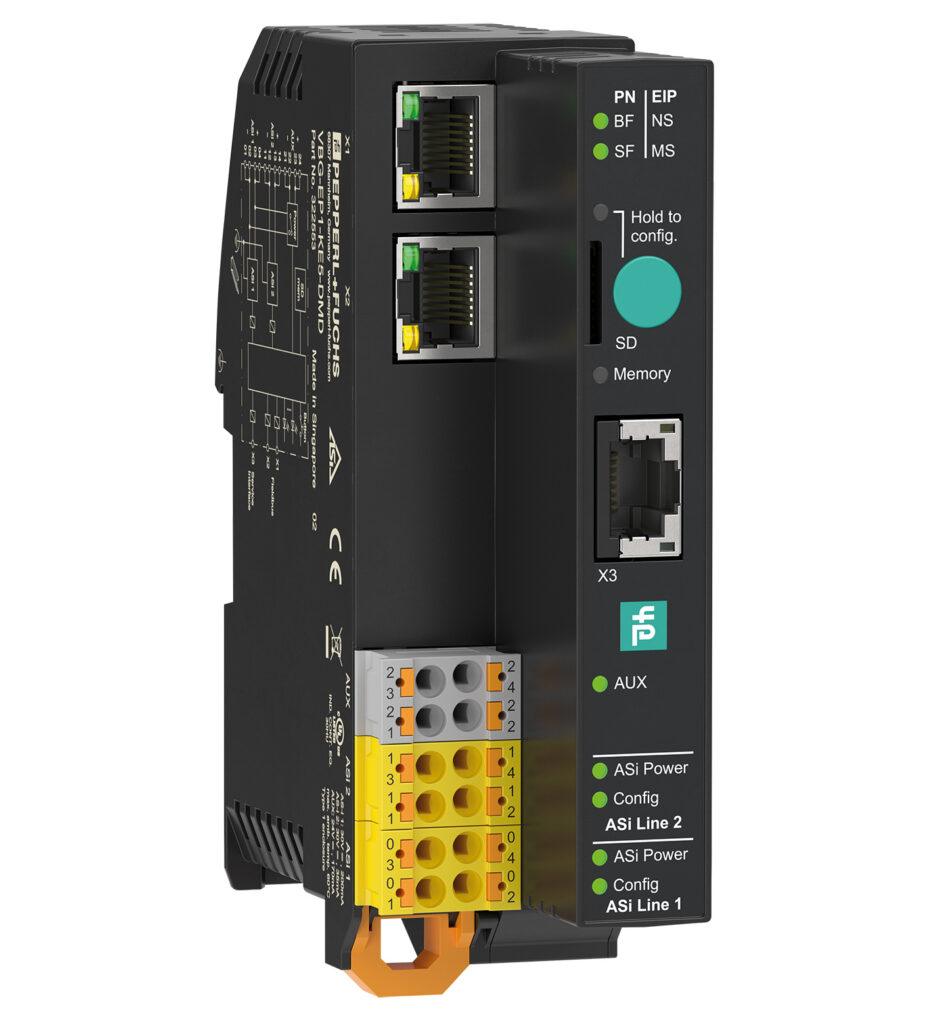

VBG-EP1-KE5-DMD
| AS-Interface specification | V3.0 |
|---|---|
| Earth fault detection | integrated |
| Diagnostics function | Extended function via diagnostics interface |
| UL File Number | E223772 |
| MTBF | at 40 °C 51.5 a |
AS-Interface gateway
- Multiprotocol capability for PROFINET and Ether Net/IP
- IIo T-ready thanks to REST API
- Web-based configuration
- PROFINET S2 system redundancy
- Commissioning via mobile devices possible
- Gateway compliant with AS-Interface specification 3.0
PROFINET / Ether Net/IP gateway for 2 AS-Interface networks
VBG-EP1-KE5-DMD
| AS-Interface specification | V3.0 |
|---|---|
| Earth fault detection | integrated |
| Diagnostics function | Extended function via diagnostics interface |
| UL File Number | E223772 |
| MTBF | at 40 °C 51.5 a |
| LED indication | see manual |
| Button | see manual |
| Rated Çalışma gerilimi | from AS-Interface · 18 ... 31.6 V · from AUX · 20 ... 30 V |
| Rated Çalışma akımı | ≤ 220 m A from AS-Interface segment 1 · ≤ 60 m A from AS-Interface segment 2 · ≤ 170 m A from AUX |
| Protection class | III |
| Nominal voltage | from AS-Interface · 30 V DC · from AUX · 24 V DC |
| Interface type | Fieldbus |
| Physical | 2 x RJ-45 |
| Protocol | PROFINET IO with media redundancy protocol (MRP) and S2 system redundancy. Ether Net/IP with Device Level Ring (DLR) HTTP (REST API) |
| Transfer rate | 10 MBit/s / 100 MBit/s , Automatic baud rate detection |
| IP address | via DHCP |
| Ethernet | RJ45 |
| AUX/AS-Interface | removable spring clamp terminals |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Electromagnetic compatibility | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Koruma sınıfı | EN 60529:2000 |
| AS-Interface | EN 62026-2:2013 |
| Shock resistance | EN 61131-2:2004 |
| Ortam sıcaklığı | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Cold start temperature | -40 °C (-40 °F) |
| Relative humidity | ≤ 95 % non-condensing |
| Altitude | ≤ 5000 m above MSL [Ortam sıcaklığı max. 40 °C) |
| Malzeme | PA 66-FR |
| Ağırlık | 185 g |
| Yükseklik | 125 mm |
| Genişlik | 38 mm |
| Uzunluk | 99 mm |
| Yapı tipi | DIN-rail mounting |
