Pepperl+Fuchs
AS-i

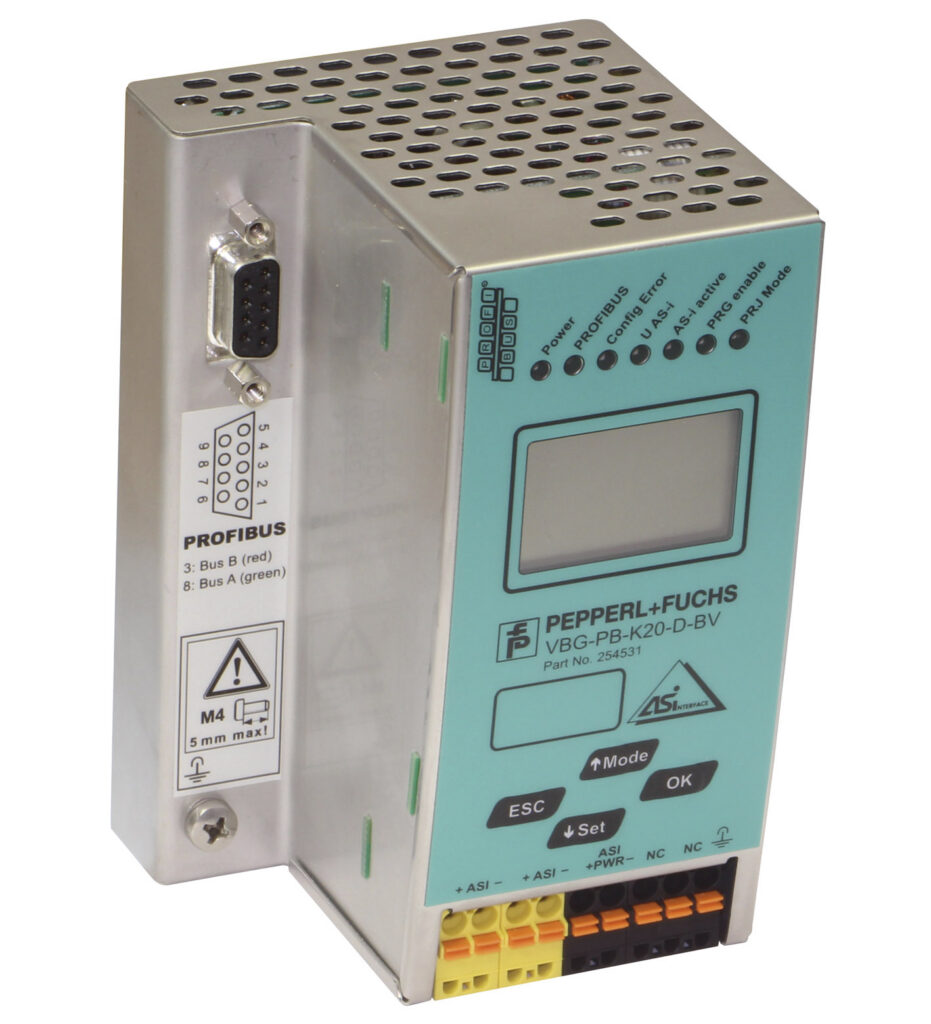

VBG-PB-K20-D-BV
| AS-Interface specification | V3.0 |
|---|---|
| Earth fault detection | integrated |
| EMC monitoring | integrated |
| Diagnostics function | Extended function via display |
| UL File Number | E223772 |
AS-Interface gateway
- Bağlantı to PROFIBUS DP
- PROFIBUS DP V1 support
- Easy commissioning and fault diagnosis via LEDs and graphic display
- Earth fault detection
- AS-Interface noise detection
PROFIBUS gateway
VBG-PB-K20-D-BV
| AS-Interface specification | V3.0 |
|---|---|
| Earth fault detection | integrated |
| EMC monitoring | integrated |
| Diagnostics function | Extended function via display |
| UL File Number | E223772 |
| Display | Illuminated graphical LC display for addressing and error messages |
| LED PROFIBUS | PROFIBUS master detected; LED yeşil |
| LED AS-i ACTIVE | AS-Interface operation normal; LED yeşil |
| LED CONFIG ERR | configuration error; LED kırmızı |
| LED PRG ENABLE | autom. programming; LED yeşil |
| LED POWER | voltage ON; LED yeşil |
| LED PRJ MODE | projecting mode active; LED sarı |
| LED U AS-i | AS-Interface voltage; LED yeşil |
| Button | 4 |
| Switch SET | Selection and setting of a slave address |
| OK button | Mode selection traditional-graphical/confirmation |
| Button MODE | Mode selection PRJ-operation/save configuration/cursor |
| ESC button | Mode selection traditional-graphical/cancel |
| Insulation voltage | ≥ 500 V |
| Rated Çalışma gerilimi | from AS-Interface |
| Rated Çalışma akımı | yak. 200 m A from AS-Interface |
| Interface type | RS-485 |
| Protocol | PROFIBUS in accordance with IEC 61158/IEC 61784-1 |
| Transfer rate | 9.6 k Bit/s / 12 MBit/s , Automatic baud rate detection |
| PROFIBUS | Sub-D interface |
| AS-Interface | spring terminals, removable |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Koruma sınıfı | EN 60529:2000 |
| Shock resistance | EN 61131-2:2004 |
| Ortam sıcaklığı | 0 ... 55 °C (32 ... 131 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Gövde | Stainless steel |
| Ağırlık | 460 g |
| Yükseklik | 120 mm |
| Genişlik | 75 mm |
| Uzunluk | 83 mm |
| Yapı tipi | Low profile Gövde , Stainless steel |
