Pepperl+Fuchs
AS-i

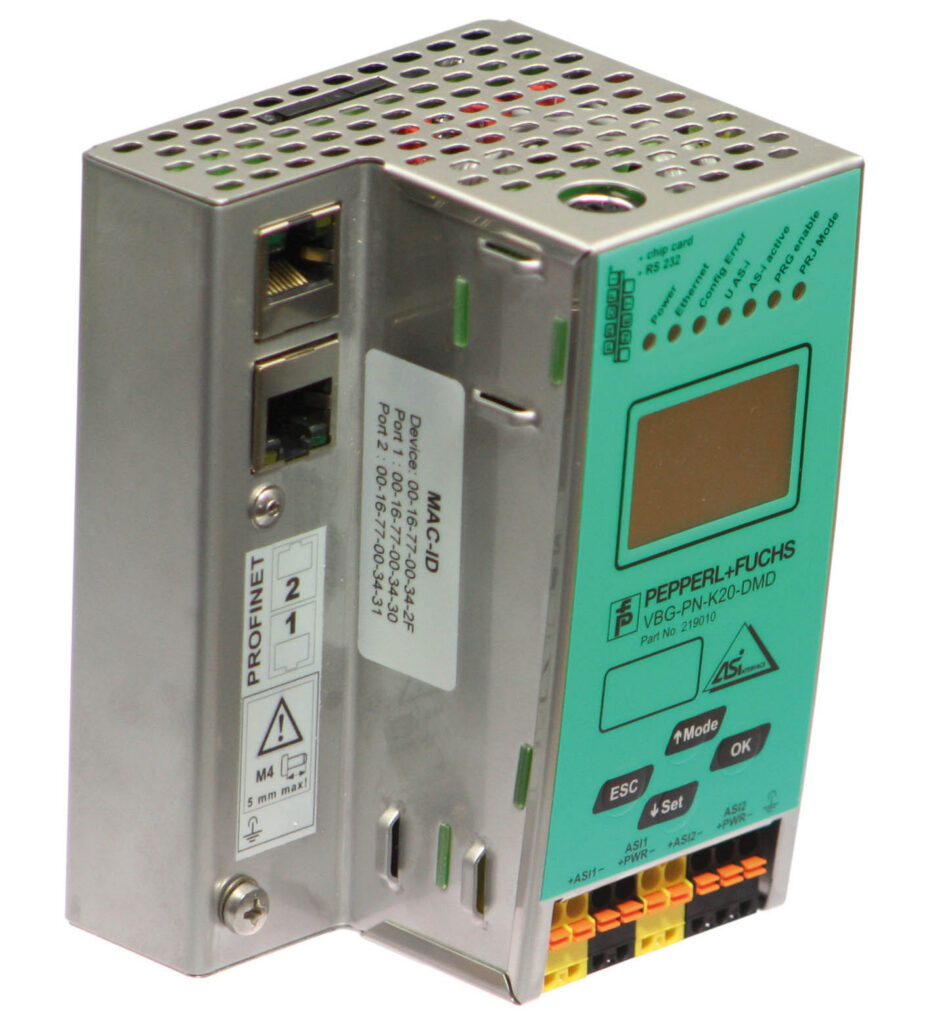

VBG-PN-K20-DMD
| AS-Interface specification | V3.0 |
|---|---|
| Duplicate address detection | from AS-Interface slaves |
| Earth fault detection | integrated |
| EMC monitoring | integrated |
| Diagnostics function | Extended function via display |
AS-Interface gateway
- Gateway compliant with AS-Interface specification 3.0
- Bağlantı to PROFINET IO
- Fault diagnosis via LEDs and grafic display
- Easy commissioning by graphic display
- AS-Interface monitor or extended AS-Interface diagnostic read via display
- Dublicate addressing detection
- Earth fault detection
- AS-Interface noise detection
- All AS-Interface functions possible via Ethernet
- Commissioning, locally on the gateway or via AS-i Control Tools software
- Ethernet diagnostic interface
- 2 AS-Interface networks
PROFINET Gateway, double master for 2 AS-Interface networks with integrated switch
VBG-PN-K20-DMD
| AS-Interface specification | V3.0 |
|---|---|
| Duplicate address detection | from AS-Interface slaves |
| Earth fault detection | integrated |
| EMC monitoring | integrated |
| Diagnostics function | Extended function via display |
| UL File Number | E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source |
| MTTFd | 100 a at 30 °C |
| Display | Illuminated graphical LC display for addressing and error messages |
| LED ETHERNET | ethernet active; LED yeşil |
| LED AS-i ACTIVE | AS-Interface operation normal; LED yeşil |
| LED CONFIG ERR | configuration error; LED kırmızı |
| LED PRG ENABLE | autom. programming; LED yeşil |
| LED POWER | voltage ON; LED yeşil |
| LED PRJ MODE | projecting mode active; LED sarı |
| LED U AS-i | AS-Interface voltage; LED yeşil |
| Switch SET | Selection and setting of a slave address |
| OK button | Mode selection traditional-graphical/confirmation |
| Button MODE | Mode selection PRJ-operation/save configuration/cursor |
| ESC button | Mode selection traditional-graphical/cancel |
| Insulation voltage | ≥ 500 V |
| Rated Çalışma gerilimi | from AS-Interface |
| Rated Çalışma akımı | ≤ 200 m A from AS-Interface circuit 1 · ≤ 200 m A from AS-Interface segment 2 · ≤ 270 m A in total |
| Interface type | PROFINET IO device (IRT) |
| Physical | 2 x RJ-45 |
| Protocol | Media Redundancy Protocol (MRP) |
| Transfer rate | 10 MBit/s / 100 MBit/s , Automatic baud rate detection |
| PROFINET | RJ-45 |
| AS-Interface | removable spring clamp terminals |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Electromagnetic compatibility | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Koruma sınıfı | EN 60529:2000 |
| Shock resistance | EN 61131-2:2004 |
| Standartlar | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| UL onayı | An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed. · UL mark does not provide UL certification for any functional safety rating or aspects of the device. |
| Ortam sıcaklığı | 0 ... 55 °C (32 ... 131 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Ağırlık | 500 g |
| Yükseklik | 120 mm |
| Genişlik | 85 mm |
| Uzunluk | 76 mm |
| Yapı tipi | Low profile Gövde , Stainless steel |
