Pepperl+Fuchs
AS-i
VBP-HH1-V3.0-V1
| AS-Interface specification | V3.0 |
|---|---|
| Operating mode | Plug-in charging unit, 230 V AC, included in the delivery package |
| Display | LC display |
| Keyboard | membrane keys, 5 keys |
| Operating duration | 8 h or ≥ 250 read/write procedures for fully charged battery |

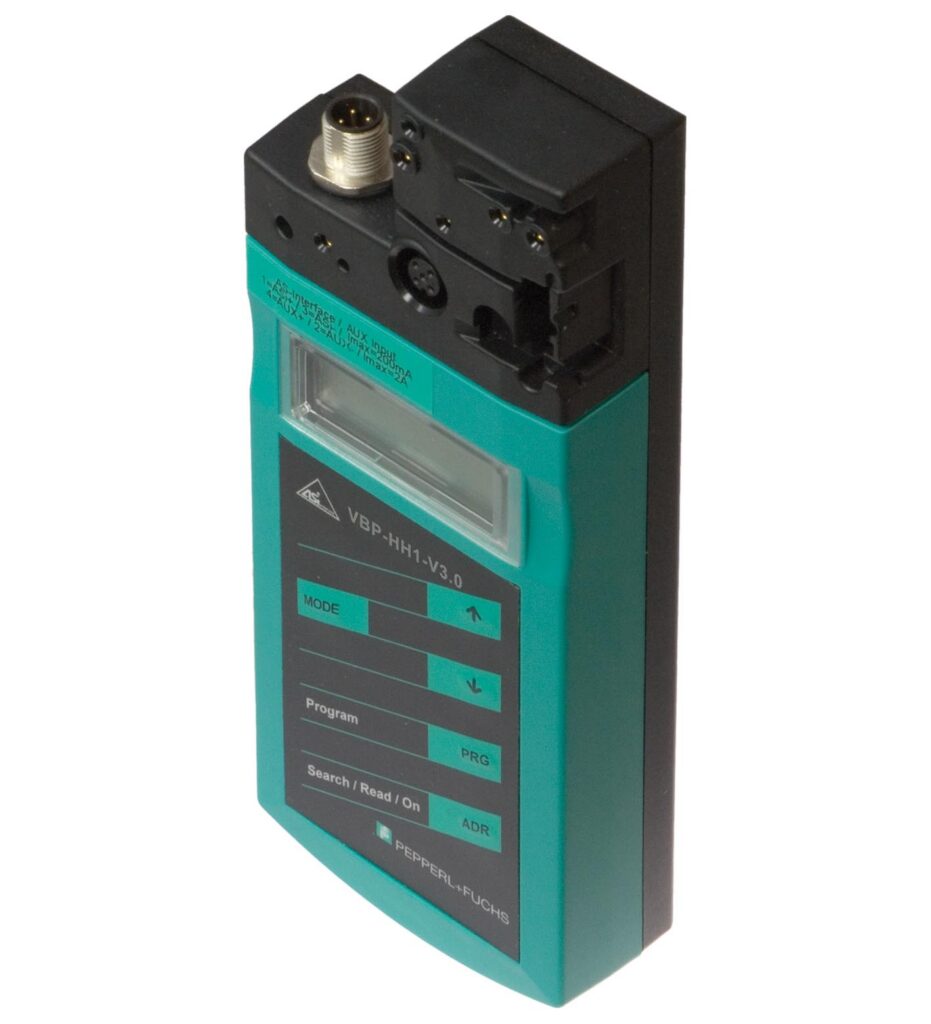

AS-Interface Handheld
- Addressing and programming AS-Interface nodes
- Displaying the assigned node addresses and the status of the inputs
- Setting outputs at the AS-Interface node
- Also supports profiles S-7.7.A.7 (Spec 3.0), S-0.B and S-7.B (AS Interface Safety at Work)
- The node Bağlantı is short-circuit and overload proof
- Additional M12 plug for external power supply for AS-Interface and AUX
- Connecting Kablo included with delivery
- Battery charger included with delivery
VBP-HH1-V3.0-V1
| AS-Interface specification | V3.0 |
|---|---|
| Operating mode | Plug-in charging unit, 230 V AC, included in the delivery package |
| Display | LC display |
| Keyboard | membrane keys, 5 keys |
| Operating duration | 8 h or ≥ 250 read/write procedures for fully charged battery |
| Power supply | battery mode, please use only battery charger included with delivery to charge (charging time about 14 h) · Type of rechargeable battery = Ni Mh 4.8 V, 800 m Ah, 3.84 Wh (UN 3496 batteries, nickel-metal hydride) |
| Interface type | AS-Interface, short-circuit and overload protected |
| Open loop voltage | 28 V (internal power supply) |
| Load current | 100 m A at 25 V (internal power supply) |
| Physical | AUX: 24 V PELV, 2 A (not short-circuit proof) · AS-Interface: 31,6 V PELV (DC or AS-Interface), 200 m A (short-circuit proof) |
| Directive 2014/30/EU | Handheld: EN 61326-1:2013 · Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013 , EN 61000-4-2:2009 , EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014+AC:2015, EN 61000-4-8:2010, EN 61000-4-11:2004+A1:2017 , EN 55032:2015+AC:2016 , EN 55035:2017 |
| Directive 2014/35/EU | Plug-in charging unit EN 62368-1:2014+A11:2017 |
| Koruma sınıfı | EN 60529:2000 |
| Electrical safety | Plug-in charging unit EN 62368-1:2014+A11:2017 |
| Emitted interference | Handheld: EN 61326-1:2013 · Plug-in charging unit EN 55032:2015+AC:2016 , EN 55035:2017 |
| Noise immunity | Handheld: EN 61326-1:2013 · Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013 |
| Ortam sıcaklığı | 0 ... 40 °C (32 ... 104 °F) |
| Storage temperature | -20 ... 40 °C (-4 ... 104 °F) |
| Gövde | plastic |
| Ağırlık | yak. 610 g |
| Yükseklik | 34 mm |
| Genişlik | 80 mm |
| Uzunluk | 214 mm |
