Pepperl+Fuchs
Encoderlar
317310
| Operating temperature | -30 ... 80 °C (-22 ... 176 °F) |
|---|---|
| Shaft çap | 10 mm |
| Fastener | Polyurethane |
| End piece | Zinc plated steel |
| Ağırlık | 85 g |
Coupling
- Average torsional rigidity
- Small reset forces
- Shock- and vibration-absorbing
- Thermally and electrically insulating
- Very good compensation of radial, lateral and angular misalignments
- Maintenance-free

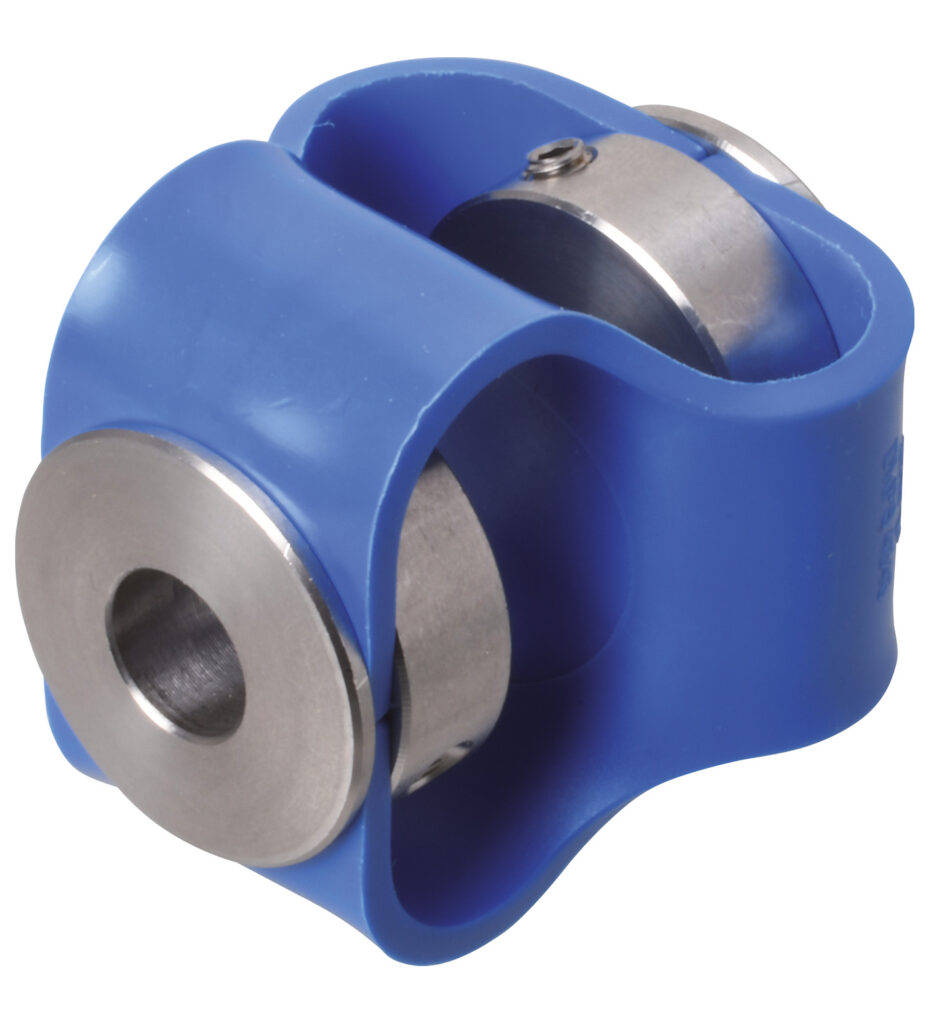

Double loop coupling 10 x 10, Average torsional rigidity, Small reset forces, Shock- and vibration-absorbing, Thermally and electrically insulating, Very good compensation of radial, lateral and angular misalignments
317310
| Operating temperature | -30 ... 80 °C (-22 ... 176 °F) |
|---|---|
| Shaft çap | 10 mm |
| Fastener | Polyurethane |
| End piece | Zinc plated steel |
| Ağırlık | 85 g |
| Rotational speed | max. 3000 min |
| Max. torque | 2 Nm |
| Radial offset | max. ± 3 mm |
| Axial offset | max. ± 4 mm |
| Angle error | max. ± 12 ° |
| Torsion spring stiffness | 28 Nm / rad |
| Radial spring stiffness | 7 N / mm |
| Moment of inertia | 106 kg m2 x 10-7 |
| Mounting | clamp screws M4 x 6, DIN 916 |
| Sıkma torku of clamping screws | max. 1 Nm |
