Pepperl+Fuchs
Encoderlar

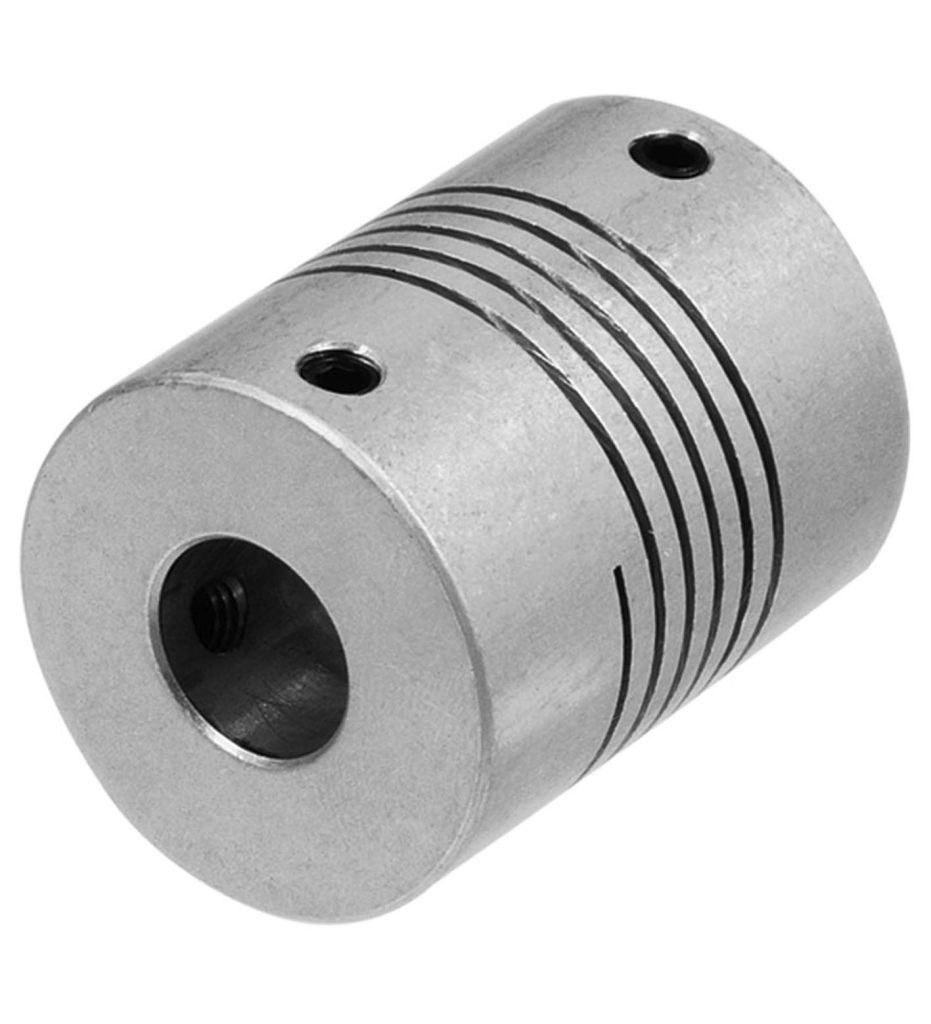

KW-8/8
| Operating temperature | -30 ... 150 °C (-22 ... 302 °F) |
|---|---|
| Shaft Çap | d1 = 8 mm , d2 = 8 mm |
| Malzeme | anodized aluminum |
| Ağırlık | 35 g |
| Rotational speed | max. 8000 min -1 |
Coupling
- Universally suitable for backlash-free rotation transmission
- Vibration- isolating
- Optimall misalignment compensation
- Medium torsion spring stiffness
- Small reset forces
- No moving parts, fabricated in one piece
- Suitable for vacuum
Helical coupling, Universally suitable for backlash-free rotation transmission, Vibration- isolating, Optimall misalignment compensation, Medium torsion spring stiffness, Small reset forces
KW-8/8
| Operating temperature | -30 ... 150 °C (-22 ... 302 °F) |
|---|---|
| Shaft Çap | d1 = 8 mm , d2 = 8 mm |
| Malzeme | anodized aluminum |
| Ağırlık | 35 g |
| Rotational speed | max. 8000 min -1 |
| Max. torque | 1 Nm |
| Radial offset | max. ± 0.3 mm |
| Axial offset | max. ± 0.5 mm |
| Angle error | max. ± 4 ° |
| Torsion spring stiffness | 18 Nm / rad |
| Radial spring stiffness | 50 N / mm |
| Moment of inertia | 30 kg m2 x 10-7 |
| Mounting | clamp screws M4 x 6, DIN 916 |
| Sıkma torku of clamping screws | max. 1.2 Nm |
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
