Pepperl+Fuchs
Endüktif Sensörler

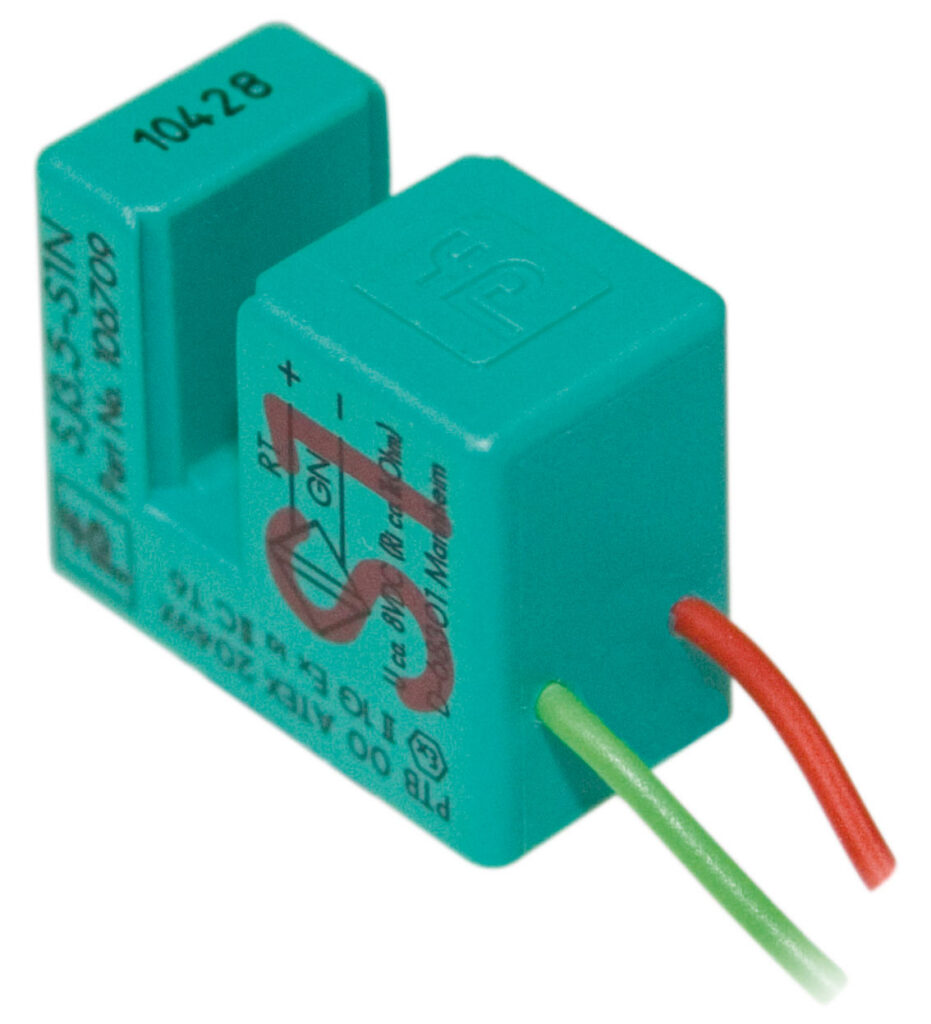

SJ3,5-S1N
| [{"label" | "Anahtarlama işlevi","value":"Normalde açık (NO)"},{"label":"Çıkış tipi","value":"NAMUR with safety function"},{"label":"Slot Genişlik","value":"3.5 mm"},{"label":"Depth of immersion (lateral)","value":"5 ... 7 typ. 6 mm"},{"label":"Reference target","value":"10 x 7 x 0.3 mm3, Al"},{"label":"Safety Integrity Level (SIL)","value":"en fazla SIL3 acc. to IEC 61508 Danger! In safety-related applications the sensor must be operated with a qualified fail safe interface from Pepperl+Fuchs, such as KFD2-SH-EX1. · Consider the "exida Functional Safety Assessment" document which is available on www.pepperl-fuchs.com as an integral part of this product's documentation."},{"label":"Nominal voltage","value":"8.2 V (Ri yak. 1 kΩ)"},{"label":"Anahtarlama frekansı","value":"0 ... 2500 Hz"},{"label":"Hysteresis","value":"with NAMUR switch amplifier: 0.09 mm (e. g. Pepperl+Fuchs KCD2-SR-Ex1.LB) · with safety switch amplifier 0.05 mm (e. g. Pepperl+Fuchs KFD2-SH-Ex1)"},{"label":"Suitable for 2:1 technology","value":"yes , with Ters polarite koruması diode"},{"label":"Rate of current rise","value":"2.1 m A / mm"},{"label":"Measuring plate not detected","value":"0.2 ... 1 m A"},{"label":"Measuring plate detected","value":"≥ 3 m A"},{"label":"MTTFd","value":"11850 a"},{"label":"Görev süresi (TM)","value":"20 a"},{"label":"Tanı kapsamı (DC)","value":"0 %"},{"label":"NAMUR","value":"EN 60947-5-6:2000 · IEC 60947-5-6:1999"},{"label":"Standartlar","value":"EN IEC 60947-5-2"},{"label":"Equipment protection level Ga","value":"IECEx PTB 11.0092X"},{"label":"Equipment protection level Gb","value":"IECEx PTB 11.0092X"},{"label":"Equipment protection level Da","value":"IECEx PTB 11.0092X"},{"label":"Equipment protection level Mb","value":"IECEx PTB 11.0092X"},{"label":"UL onayı","value":"c ULus Listed · Yük tipi: Ohmik · Devre: Sınıf 2 güç kaynağı · Muhafaza tipi sınıfı: Type 1 · Besleme / anahtarlama gerilimi: 8.2 V DC"},{"label":"Ordinary Location","value":"E87056"},{"label":"Hazardous Location","value":"E501628"},{"label":"Control drawing","value":"116-0454"},{"label":"NEPSI certificate","value":"GYJ16.1392X"},{"label":"Ortam sıcaklığı","value":"-25 ... 100 °C (-13 ... 212 °F)"},{"label":"Bağlantı tipi","value":"flexible leads Li Y"},{"label":"Gövde malzemesi","value":"PBT"},{"label":"Koruma sınıfı","value":"IP67"},{"label":"Kablo çapı","value":"1.1 mm ± 0.1 mm"},{"label":"Bükülme yarıçapı","value":"> 10 x kablo çapı"},{"label":"Malzeme","value":"PVC"},{"label":"İletken kesiti","value":"0.14 mm2"},{"label":"Uzunluk","value":"500 mm"},{"label":"Yükseklik","value":"15 mm"},{"label":"Genişlik","value":"10 mm"},{"label":"Note","value":"only for non-ferrous metal · ayarlanabilir stop"},{"label":"Use in the hazardous area","value":"see instruction manuals"}] |
|---|
Inductive slot sensor
- 3.5 mm slot Genişlik
- Usable en fazla SIL 3 acc. to IEC 61508
- Nonferrous targets
Extended temperature range, Suitable for 2:1 technology, Anahtarlama işlevi: Normalde açık (NO), Çıkış tipi: NAMUR with safety function, Çıkış tipi: 2 telli, Yapı tipi: Slot, Seri: Slot type, Suitable for 2:1 technology, Safety Integrity Level (SIL): SIL 3, Gerilim tipi: DC, Equipment protection level Ga: IECEx PTB 11.0092X, Equipment protection level Gb: IECEx PTB 11.0092X, Equipment protection level Da: IECEx PTB 11.0092X, Equipment protection level Mb: IECEx PTB 11.0092X
SJ3,5-S1N
| [{"label" | "Anahtarlama işlevi","value":"Normalde açık (NO)"},{"label":"Çıkış tipi","value":"NAMUR with safety function"},{"label":"Slot Genişlik","value":"3.5 mm"},{"label":"Depth of immersion (lateral)","value":"5 ... 7 typ. 6 mm"},{"label":"Reference target","value":"10 x 7 x 0.3 mm3, Al"},{"label":"Safety Integrity Level (SIL)","value":"en fazla SIL3 acc. to IEC 61508 Danger! In safety-related applications the sensor must be operated with a qualified fail safe interface from Pepperl+Fuchs, such as KFD2-SH-EX1. · Consider the "exida Functional Safety Assessment" document which is available on www.pepperl-fuchs.com as an integral part of this product's documentation."},{"label":"Nominal voltage","value":"8.2 V (Ri yak. 1 kΩ)"},{"label":"Anahtarlama frekansı","value":"0 ... 2500 Hz"},{"label":"Hysteresis","value":"with NAMUR switch amplifier: 0.09 mm (e. g. Pepperl+Fuchs KCD2-SR-Ex1.LB) · with safety switch amplifier 0.05 mm (e. g. Pepperl+Fuchs KFD2-SH-Ex1)"},{"label":"Suitable for 2:1 technology","value":"yes , with Ters polarite koruması diode"},{"label":"Rate of current rise","value":"2.1 m A / mm"},{"label":"Measuring plate not detected","value":"0.2 ... 1 m A"},{"label":"Measuring plate detected","value":"≥ 3 m A"},{"label":"MTTFd","value":"11850 a"},{"label":"Görev süresi (TM)","value":"20 a"},{"label":"Tanı kapsamı (DC)","value":"0 %"},{"label":"NAMUR","value":"EN 60947-5-6:2000 · IEC 60947-5-6:1999"},{"label":"Standartlar","value":"EN IEC 60947-5-2"},{"label":"Equipment protection level Ga","value":"IECEx PTB 11.0092X"},{"label":"Equipment protection level Gb","value":"IECEx PTB 11.0092X"},{"label":"Equipment protection level Da","value":"IECEx PTB 11.0092X"},{"label":"Equipment protection level Mb","value":"IECEx PTB 11.0092X"},{"label":"UL onayı","value":"c ULus Listed · Yük tipi: Ohmik · Devre: Sınıf 2 güç kaynağı · Muhafaza tipi sınıfı: Type 1 · Besleme / anahtarlama gerilimi: 8.2 V DC"},{"label":"Ordinary Location","value":"E87056"},{"label":"Hazardous Location","value":"E501628"},{"label":"Control drawing","value":"116-0454"},{"label":"NEPSI certificate","value":"GYJ16.1392X"},{"label":"Ortam sıcaklığı","value":"-25 ... 100 °C (-13 ... 212 °F)"},{"label":"Bağlantı tipi","value":"flexible leads Li Y"},{"label":"Gövde malzemesi","value":"PBT"},{"label":"Koruma sınıfı","value":"IP67"},{"label":"Kablo çapı","value":"1.1 mm ± 0.1 mm"},{"label":"Bükülme yarıçapı","value":"> 10 x kablo çapı"},{"label":"Malzeme","value":"PVC"},{"label":"İletken kesiti","value":"0.14 mm2"},{"label":"Uzunluk","value":"500 mm"},{"label":"Yükseklik","value":"15 mm"},{"label":"Genişlik","value":"10 mm"},{"label":"Note","value":"only for non-ferrous metal · ayarlanabilir stop"},{"label":"Use in the hazardous area","value":"see instruction manuals"}] |
|---|
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
