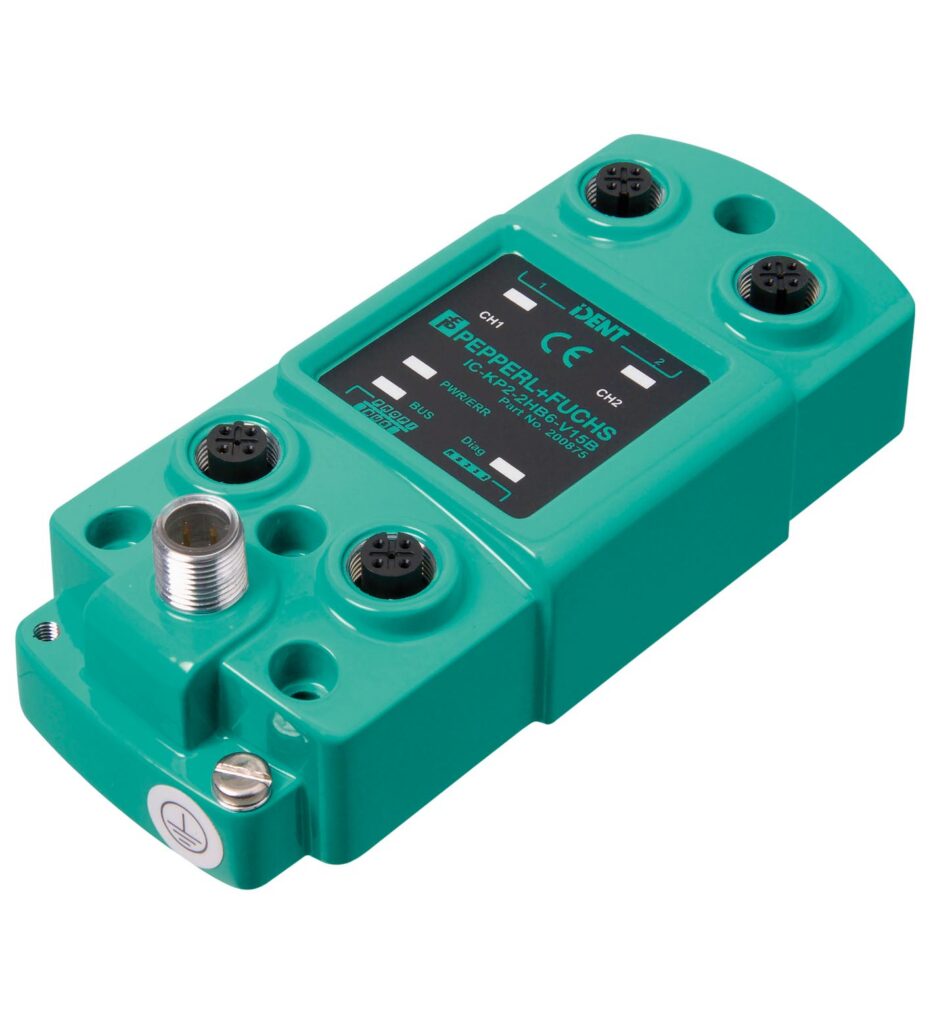

IC-KP2-2HRX-2V1
| Number of read/write heads | max. 2 · alternatively 1 read/write head and 1 trigger sensor |
|---|---|
| UL File Number | E87056 |
| MTBF | 80 a (Operation at +40 °C) |
| LEDs 1, 2 | Status indicator for read/write heads |
| LEDs CH1, CH2 | yeşil: read head detected · kırmızı: Configuration error |
RFID evaluation unit
- LED status indicator of bus communication and read/write heads
- Max. 2 read/write heads can be connected
- Alternatively 1 read/write head and 1 trigger sensor can be connected
Control interface unit IDENTControl Compactwith serial interface RS-232 and RS-485
IC-KP2-2HRX-2V1
| Number of read/write heads | max. 2 · alternatively 1 read/write head and 1 trigger sensor |
|---|---|
| UL File Number | E87056 |
| MTBF | 80 a (Operation at +40 °C) |
| LEDs 1, 2 | Status indicator for read/write heads |
| LEDs CH1, CH2 | yeşil: read head detected · kırmızı: Configuration error |
| LED PWR/ERR | yeşil: power on · kırmızı: Hardware fault |
| LED Tx D | yeşil: flashes in rhythm with the transmitted data |
| LED Rx D | yeşil: flashes in rhythm of receiving data |
| Rated Çalışma gerilimi | 20 ... 30 V DC , PELV |
| Ripple | ≤ 10 % at 30 V DC |
| Current consumption | ≤ 4 A incl. read/write heads |
| Power consumption | 2 W Without read/write heads |
| Galvanic isolation | basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff |
| Interface type | serial |
| Physical | RS-485 |
| Protocol | ASCII |
| Transfer rate | 1200; 2400; 4800; 9600; 19200; 38400 Bit/s |
| Directive 2014/30/EU | EN 61000-6-2 · EN 61000-6-4 |
| Directive 2011/65/EU (Ro HS) | IEC/EN 63000 |
| Koruma sınıfı | IEC 60529 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Climatic conditions | air humidity max. 96 % · Salt spray resistant to EN 60068-2-52 |
| Shock and impact resistance | Oscillation (Sine): 5 g, 10 - 1000 Hz to EN 60068-2-6 · Shock (Half-sine): 30 g, 11 ms in accordance with EN 60068-2-27 |
| Bağlantı | Read/write heads: shielded, 4-pin, M12 connector · Power supply: M12 connector · Protective earth: M4 earthing screw · RS 232: M12 plug Bağlantı · RS 485: M12 connector |
| Gövde | powder coated aluminum |
| Montaj | screw fixing |
| Ağırlık | yak. 300 g |
| Yükseklik | 42 mm |
| Genişlik | 62 mm |
| Uzunluk | 137 mm |
