Pepperl+Fuchs
Fabrika Otomasyonu

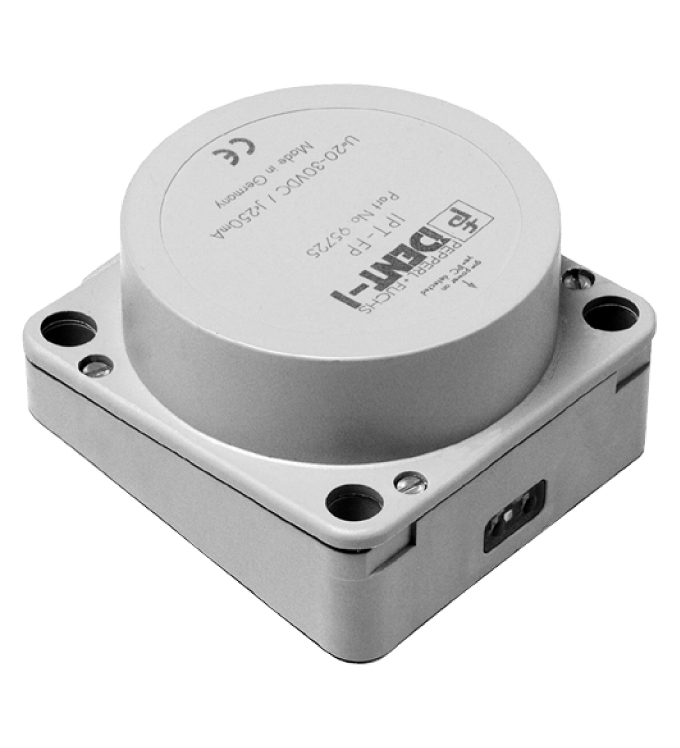

IPT1-FP
| Operating frequency | 125 k Hz |
|---|---|
| Transfer rate | 2 k Bit/s |
| Operating distance | maximum: 100 mm |
| UL File Number | E87056 |
| LED yeşil | Power on |
Read/write station
- With integrated control interface unit
- Serial interfaces and field-bus interfaces selectable through lower part
- Read distance of en fazla 100 mm
- Write distance of en fazla 50 mm
- 3 LEDs for function indication
- Koruma sınıfı IP67
- Optimized reading speed for sabit codes
- Suited for writing of IPC11
LF R/W system, fully assembled as configuration and test station
IPT1-FP
| Operating frequency | 125 k Hz |
|---|---|
| Transfer rate | 2 k Bit/s |
| Operating distance | maximum: 100 mm |
| UL File Number | E87056 |
| LED yeşil | Power on |
| LED sarı | IPC detected |
| LED kırmızı | bus fault (when using fieldbus interfaces) |
| Rated Çalışma gerilimi | 20 ... 30 V DC , ripple 10 %SS , PELV |
| Power consumption | max. 5 W , in Bağlantı with the base |
| Çalışma gerilimi/interface | functional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff |
| Mag. Field strength | < 27.3 d BµA/m at 10 m |
| Physical | Interface type depends on base used |
| Directive 2014/53/EU | EN 301489-1 · EN 300330 · EN 62368-1 |
| Directive 2011/65/EU (Ro HS) | IEC/EN 63000 |
| RFID | ISO/IEC 18000-2 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Koruma sınıfı | IP67 according to EN 60529, with base |
| Gövde | PBT |
