Pepperl+Fuchs
Fabrika Otomasyonu

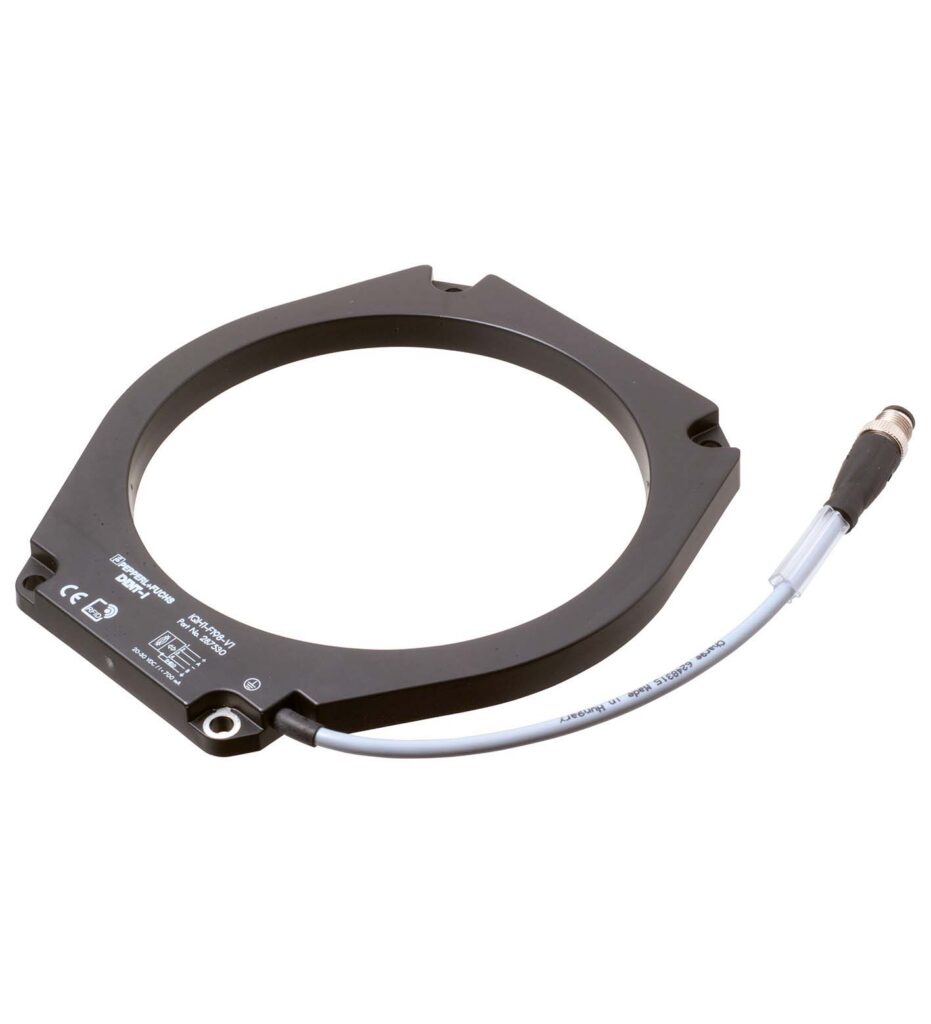

IQH1-F198-V1
| Operating frequency | 13.56 MHz |
|---|---|
| Transfer rate | 26 k Bit/s |
| Read distance | 0 ... 150 mm |
| Write distance | 0 ... 150 mm |
| Genişlik | max. 145 mm |
RFID read/write device
- Operating frequency 13.56 MHz
- Conforms to ISO 15693
- Suitable for FRAM transponder
- Particularly flat construction
- Bağlantı Kablo with V1 plug (M12 x 1)
- Koruma sınıfı IP67
- For Bağlantı to IDENTControl evaluation unit
HF RFID read/write device, ISO 15693, for IDENTControl
IQH1-F198-V1
| Operating frequency | 13.56 MHz |
|---|---|
| Transfer rate | 26 k Bit/s |
| Read distance | 0 ... 150 mm |
| Write distance | 0 ... 150 mm |
| Genişlik | max. 145 mm |
| UL File Number | E87056 |
| MTBF | 365 a (Operation at +40 °C) |
| LED yeşil/sarı | yeşil: power on · yeşil flashing: read/write attempt performed · sarı: data carrier detected |
| Power consumption | ≤ 1.3 W |
| Supply | from the IDENTControl |
| Directive 2014/53/EU | EN 301489-1 · EN 301489-3 · EN 300330 · EN 62368-1 · EN 50364 |
| Directive 2011/65/EU (Ro HS) | IEC/EN 63000 |
| Koruma sınıfı | EN 60529 |
| RFID | ISO/IEC 15693-2 · ISO/IEC 15693-3 · ISO/IEC 18000-3 |
| FCC approval | This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: · (1) This device may not cause harmful interference, and · (2) This device must accept any interference received, including interference that may cause undesired operation. · Caution: · Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. |
| IC approval | This device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions: · (1) this device may not cause interference, and · (2) this device must accept any interference, including interference that may cause undesired operation of the device. · · Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : · (1) l'appareil ne doit pas produire de brouillage, et · (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. |
| MIC approval | AC-21096 |
| Radio approval | USA: FCC IREIQH1F198V1 · Canada: IC 7037A-IQH1F198V1 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Bağlantı | connector M12 x 1 |
| Gövde | PA 6.6 |
| Encapsulation compound | WEVO 403FL/300 |
| Distance between two heads | Multiplex on: ≥ 100 mm · Multiplex off: ≥ 150 mm |
| Ağırlık | yak. 200 g |
| Yükseklik | 12 mm |
| Uzunluk | 190.5 mm |
| Kablo uzunluğu | 20 cm |
