Pepperl+Fuchs
Fabrika Otomasyonu
IUT-F190-R4-V1-FR1-01
| Operating frequency | 865 … 868 MHz: EU, Turkey · Transmission licenses for other countries on request |
|---|---|
| Emitted power | 3 ... 1000 m W ERP ayarlanabilir |
| MTBF | 105 a (Operation at +40 °C) |
| LED yeşil | Power on |
| LED sarı | Read/write operation successful |

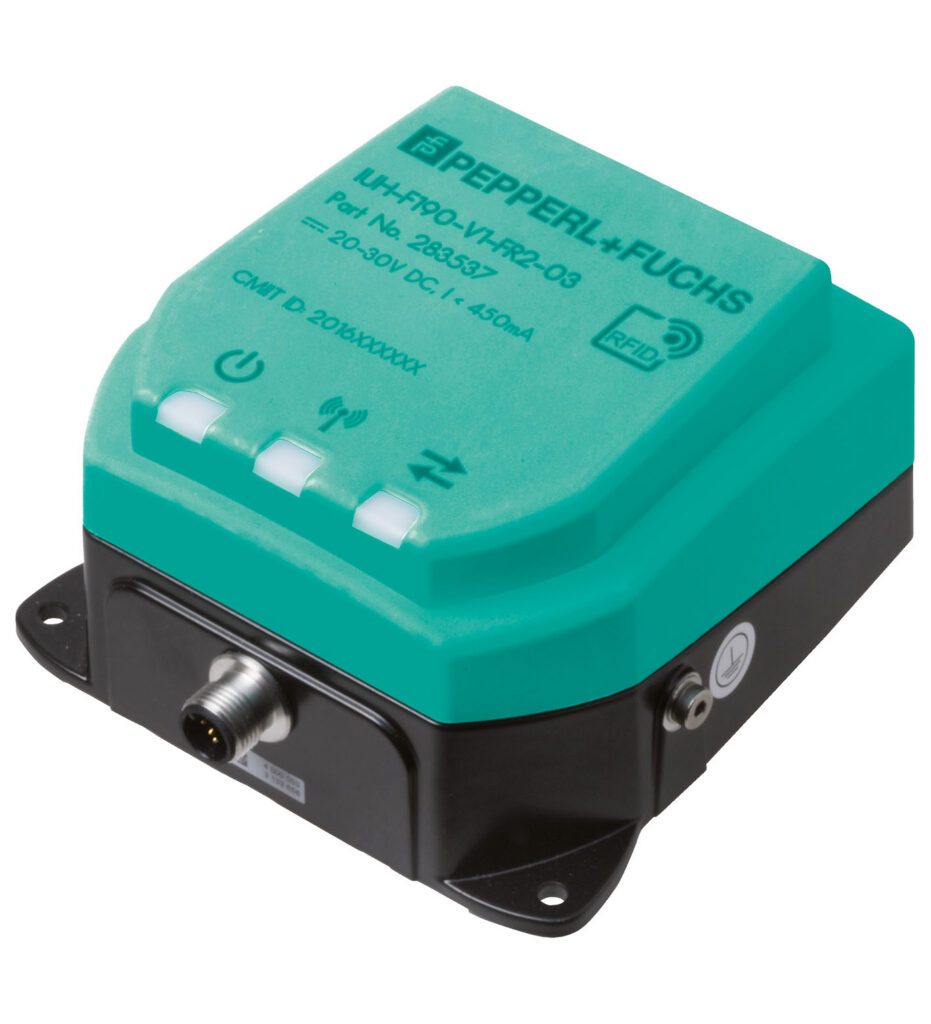

RFID read/write device
- Flexible UHF read/write device with medium Algılama menzili
- Compact and robust Gövde for harsh industrial environments
- Switchable antenna polarization guarantees reliable tag detection and enhances process flow
- Bağlantı via integrated RS-485 interface
- Multi-tag reading increases productivity
UHF RFID read/write device, Europe
IUT-F190-R4-V1-FR1-01
| Operating frequency | 865 … 868 MHz: EU, Turkey · Transmission licenses for other countries on request |
|---|---|
| Emitted power | 3 ... 1000 m W ERP ayarlanabilir |
| MTBF | 105 a (Operation at +40 °C) |
| LED yeşil | Power on |
| LED sarı | Read/write operation successful |
| LED mavi | Transmission mode |
| Rated Çalışma gerilimi | 20 ... 30 V DC , ripple 10 %SS |
| Current consumption | ≤ 450 m A |
| Power consumption | ≤ 9 W |
| Surge protection | category 2 |
| Physical | RS-485 point-to-point Bağlantı |
| Protocol | ASCII |
| Transfer rate | 1200, 2400, 4800, 9600, 19200, 38400 (default) Bit/s |
| Directive 2014/53/EU | EN 301489-1 · EN 301489-3 · EN 302208 · EN 62368-1 · EN 62311 · EN 50364 |
| Directive 2011/65/EU (Ro HS) | IEC/EN 63000 |
| Koruma sınıfı | EN 60529 |
| RFID | ISO/IEC 18000-63 |
| Classification | Environmental condition A (controlled environment) |
| Ortam sıcaklığı | -20 ... 70 °C (-4 ... 158 °F) (Operation with nontransmission periods, ayarlanabilir) · -20 ... 60 °C (-4 ... 140 °F) (Continuous transmission mode) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Pollution degree | 2 |
| Bağlantı | connector M12 x 1 |
| Gövde | PA 6.6 |
| Base | diecast aluminum |
| Ağırlık | 810 g |
| Yükseklik | 63 mm |
| Genişlik | 112 mm |
| Uzunluk | 114 mm |
