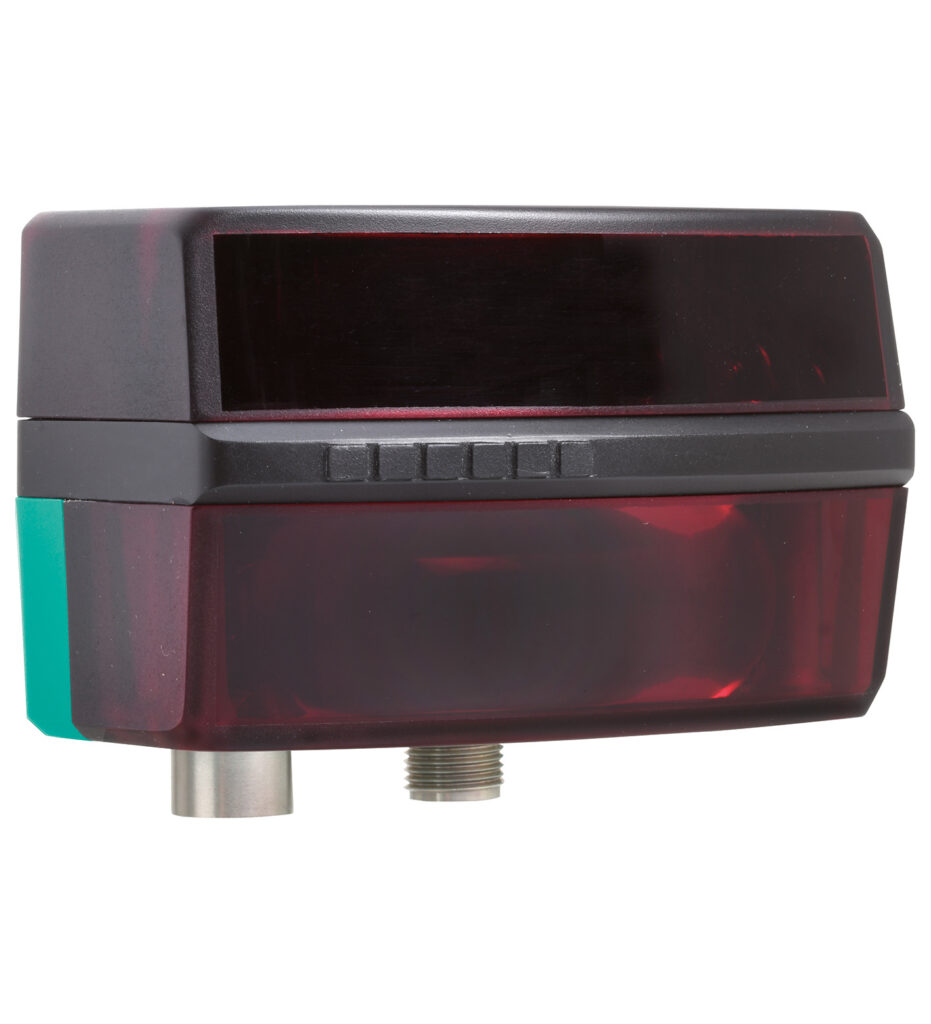

OMD10M-R2300-B23-V1V1D-4S
| Measuring range | 0.2 ... 4 m (siyah 10%) · 0.2 ... 10 m (beyaz 90%) |
|---|---|
| Reference target | Kodak beyaz (90%) |
| Işık kaynağı | laser diode |
| Note | LASER RADIATION , DO NOT STARE INTO BEAM |
| Laser class | 1 |
3-D Li DAR sensor
- High angle resolution
- Can be aligned using an integrated pilot laser
- Measuring method PRT (Pulse Ranging Technology)
- Compact design
- High pollution tolerance
R2300, 3-D Li DAR sensor for object detection and positioning, measuring range to object en fazla 10 m, Ethernet, High angle resolution, Can be aligned using an integrated pilot laser, Measuring method PRT (Pulse Ranging Technology), Compact design, High pollution tolerance
OMD10M-R2300-B23-V1V1D-4S
| Measuring range | 0.2 ... 4 m (siyah 10%) · 0.2 ... 10 m (beyaz 90%) |
|---|---|
| Reference target | Kodak beyaz (90%) |
| Işık kaynağı | laser diode |
| Note | LASER RADIATION , DO NOT STARE INTO BEAM |
| Laser class | 1 |
| Wave Uzunluk | Measuring laser kızılötesi light 905 nm · Pilot laser kırmızı light 650 nm |
| Beam divergence | Measuring laser: transversal 2 mrad , longitudinal 9.5 mrad · Pilot laser: 0.3 mrad |
| Pulse Uzunluk | Measuring laser: 5.2 ns · Pilot laser: 1.1 µs |
| Repetition rate | 90 k Hz |
| max. pulse energy | Measuring laser: < 81 n J · Pilot laser: < 60 n J |
| Measuring method | Pulse Ranging Technology (PRT) |
| Frame rate | 25 fps · 12.5 fps |
| Scan rate | 100 s-1 · 50 s-1 |
| Scanning zone | 100° horizontal, 9° vertical |
| Işık noktası çapı | 25 mm x 100 mm at 10 m |
| Filter | Maximum, average, median |
| Ortam ışığı limiti | 60000 Lux |
| Resolution | 1 mm |
| MTTFd | 75 a |
| Görev süresi (TM) | 10 a |
| Tanı kapsamı (DC) | 0 % |
| Çalışma göstergesi | LED yeşil |
| Data flow indicator | LED sarı: active ethernet · LED yeşil: Ethernet link |
| Fonksiyon göstergesi | LED kırmızı: fault |
| Kumanda elemanları | none |
| Parameterization indicator | none |
| Çalışma gerilimi | 10 ... 30 V |
| Ripple | 10 % within the supply tolerance |
| Boşta besleme akımı | ≤ 300 m A / 24 V DC |
| Power consumption | < 8 W |
| Time delay before availability | < 20 s |
| Interface type | Fast Ethernet |
| Protocol | HTTP , UDP/IP |
| Input/Çıkış tipi | none |
| Ürün standardı | EN 60947-5-2 |
| Laser safety | EN 60825-1:2014 |
| Measuring speed | 50000 measurements per second |
| Measured value noise | typ. 30 mm , 1 sigma |
| Angle resolution | 0.1° at 12.5 Hz |
| Absolute accuracy | typ. ± 30 mm |
| Repeat accuracy | < 12 mm |
| Protection class | III (Çalışma gerilimi 50 V) |
| CCC onayı | CCC onayı / marking not required for products rated ≤36 V |
| FDA approval | IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019. |
| Ortam sıcaklığı | -30 ... 50 °C (-22 ... 122 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | 95 % , no moisture condensation |
| Koruma sınıfı | IP65 |
| Bağlantı | 4-pin, M12x1 connector, standard (supply) , shield connected on both sides · 4-pin, M12x1 socket, D-coded (LAN) |
| Gövde | ABS + PC |
| Optik yüzey | PC (Polycarbonate) |
| Ağırlık | yak. 0.27 kg |
| Sıkma torku, bağlama vidaları | 1.5 Nm |
| Yükseklik | 57 mm |
| Genişlik | 96 mm |
| Uzunluk | 69 mm |
| Number of mounting holes | 4 , max. thread depth 9 mm |
