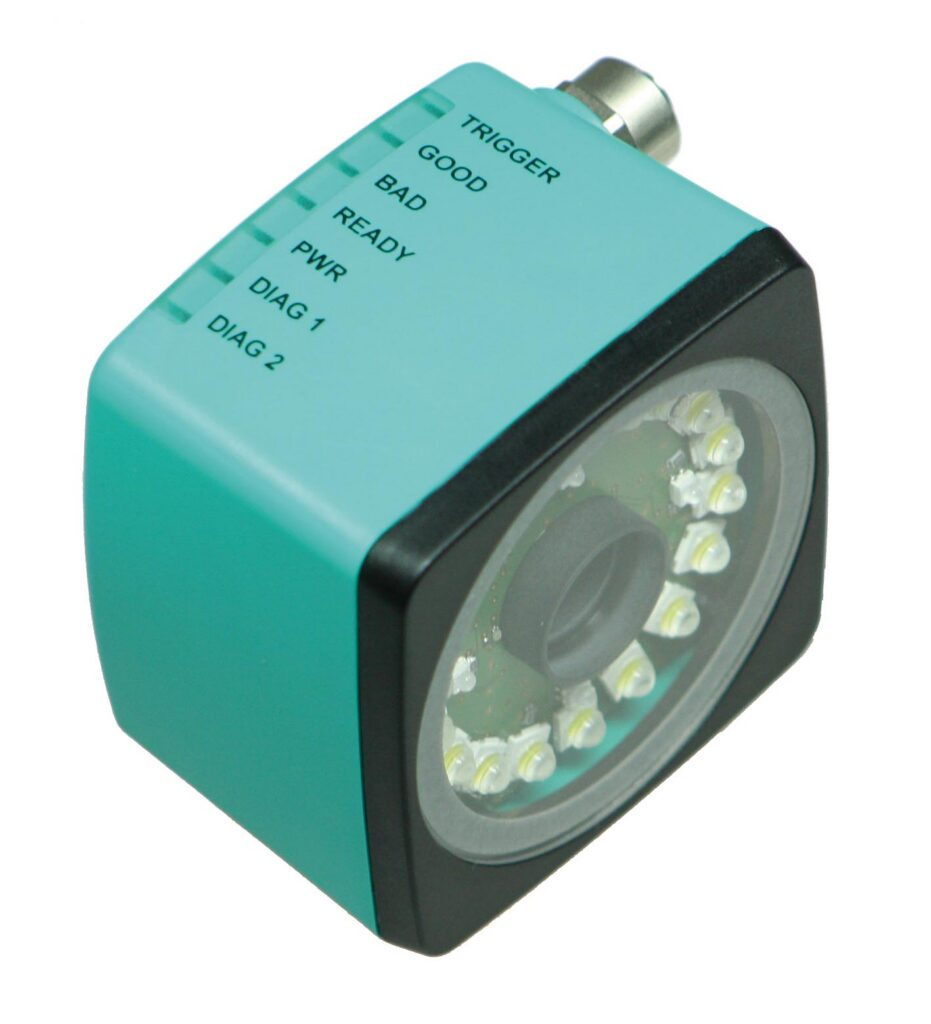

OPC120W-F200-R2
| Işık tipi | Integrated LED lightning (beyaz) |
|---|---|
| Symbologies | Data Matrix, Code 39, Code 128, Int 2 of 5, EAN13, Pharmacode |
| Read distance | 70 ... 180 mm Nominal distance: 120 mm |
| Reading field | Minimum read field: 28 mm x 45 mm · Read field at nominal distance: 45 mm x 70 mm · Maximum read field: 65 mm x 105 mm |
| Modul size | Minimum module size: 0.2 mm |
Stationary read device
- Reads 1-D and 2-D codes at high speeds of en fazla 6 m/s at 30 readings/s
- High depth of focus
- Code quality index output
- Logo comparison
- Presence detection
Optical Print Inspector, reads all common 1-D and 2-D codes, detects logos, Ethernet, RS 232, speeds of en fazla 6 m/s
OPC120W-F200-R2
| Işık tipi | Integrated LED lightning (beyaz) |
|---|---|
| Symbologies | Data Matrix, Code 39, Code 128, Int 2 of 5, EAN13, Pharmacode |
| Read distance | 70 ... 180 mm Nominal distance: 120 mm |
| Reading field | Minimum read field: 28 mm x 45 mm · Read field at nominal distance: 45 mm x 70 mm · Maximum read field: 65 mm x 105 mm |
| Modul size | Minimum module size: 0.2 mm |
| Evaluation frequency | en fazla 30 Hz |
| Target velocity | triggered max. 6 m/s |
| Symbol size | rectangular en fazla 144 x 144 modules · rectangular en fazla 16 x 48 modules |
| Data format | ASCII, C40, Text, X12, Edifact, Base 256 , all according to ISO 646 |
| Orientation | omnidirectional |
| Type | CMOS , Global shutter |
| Number of pixels | 752 x 480 pixels |
| Gri scale | 256 |
| Image recording | real-time , Program-controlled or triggered externally |
| MTTFd | 40.5 a |
| Görev süresi (TM) | 8 a |
| Tanı kapsamı (DC) | 0 % |
| Çalışma göstergesi | LED yeşil: Ready for operation |
| LED indication | for good/poor reading |
| Çalışma gerilimi | 24 V DC ± 15% , PELV |
| Boşta besleme akımı | max. 250 m A |
| Power consumption | 6 W |
| Interface type | serial , RS 232 |
| Transfer rate | max. 115.2 k Bit/s |
| Kablo uzunluğu | max. 30 m |
| Protocol | TCP/IP |
| Input voltage | to be applied externally 24 V ± 15% PELV |
| Number/Type | Trigger |
| Input current | yak. 10 m A at 24 V DC |
| Switching threshold | low: < 10 V, high: > 15 V |
| Anahtarlama tipi | PNP |
| Anahtarlama gerilimi | to be applied externally 24 V ± 15 % PELV |
| Anahtarlama akımı | 100 m A each output |
| Noise immunity | EN 61326-1 |
| Emitted interference | EN 61000-6-4 |
| Koruma sınıfı | EN 60529 |
| Photobiological safety | EN 62471:2008 exempt group |
| CCC onayı | CCC onayı / marking not required for products rated ≤36 V |
| Ortam sıcaklığı | 0 ... 45 °C (32 ... 113 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Bağlantı | 8-pin, M12x1 connector, standard (supply+IO) , · 5-pin, M12x1 socket, standard (RS 232) , · 4-pin, M12x1 socket, standard (LAN) |
| Gövde | PC/ABS |
| Montaj | 4 x M6 threading |
| Ağırlık | yak. 160 g |
| Yükseklik | 70 mm |
| Genişlik | 70 mm |
| Depth | 50 mm |
