V3-8A-E2-5M-PUR
| [{"label" | "Bağlantı","value":"socket"},{"label":"Yapı tipi","value":"8x M8"},{"label":"Locking","value":"screw Bağlantı"},{"label":"Pin sayısı","value":"3"},{"label":"Coding","value":"A-coded"},{"label":"UL File Number","value":"E223772"},{"label":"LED yeşil","value":"supply voltage each module"},{"label":"LED sarı","value":"I/O status indication"},{"label":"Çalışma gerilimi","value":"24 V DC, max. 30 V DC"},{"label":"Çalışma akımı","value":"≤ 5 m A per channel indication element"},{"label":"Current loading capacity","value":"≤ 2 A per channel, · ≤ 2 A per plug-in station, · ≤ 6 A total current per splitter box"},{"label":"Koruma sınıfı","value":"EN 60529"},{"label":"Plug Bağlantı","value":"connector M8 x 1 : IEC 61076-2-104"},{"label":"Flammability","value":"UL 94"},{"label":"UL onayı","value":"AWM STYLE 20549 (Kablo)"},{"label":"Plug connector","value":"-25 ... 80 °C (-13 ... 176 °F)"},{"label":"Kablo, sabit Montaj","value":"-40 ... 90 °C (-40 ... 194 °F)"},{"label":"Kablo, flexing","value":"-5 ... 80 °C (23 ... 176 °F)"},{"label":"Sıkma torku","value":"0.2 Nm"},{"label":"Mating cycles","value":"min. 100"},{"label":"Kablo","value":"according to IEC/EN 60228 (DIN VDE 0295) class 5"},{"label":"Sheath çap","value":"7.9 mm"},{"label":"Bükülme yarıçapı","value":"> 10 x kablo çapı, hareketli Montaj · > 7.5 x kablo çapı, sabit Montaj"},{"label":"Kılıf rengi","value":"siyah (similar to RAL 9005)"},{"label":"Cores","value":"Signal wires (4): 8 x 0.34 mm2 · Supply line (1, 3): 2 x 0.75 mm2"},{"label":"Cores Renk","value":"Core 1/4 (A): beyaz · Core 2/4 (A): yeşil · Core 3/4 (A): sarı · Core 4/4 (A): Gri · Core 5/4 (A): pink · Core 6/4 (A): kırmızı · Core 7/4 (A): siyah · Core 8/4 (A): violet · Core 1 ... 8/1 (+24 V): brown · Core 1 ... 8/3 (0 V): mavi"},{"label":"Core construction","value":"Signal line (4): 19 x 0.15 mm · Supply line (1, 3): 42 x 0.15 mm"},{"label":"Uzunluk","value":"5 m"},{"label":"Kablo code","value":"Li YY 11Y-HF"},{"label":"Drag chain cycles","value":"min. 1500000"},{"label":"Motion velocity","value":"max. 2 m/s"},{"label":"Traverse distance","value":"2 m"},{"label":"Ağırlık","value":"627.5 g"},{"label":"Yükseklik","value":"20 mm"},{"label":"Genişlik","value":"30 mm"},{"label":"PWIS free","value":"var"},{"label":"Screw Bağlantı","value":"Cu alloy , nickel-plated"},{"label":"Body","value":"PBT, siyah"},{"label":"Seal","value":"FKM"},{"label":"Contact surface","value":"Ni/Au"},{"label":"Sheathing","value":"PUR"},{"label":"Core insulation","value":"PVC"},{"label":"Chemical resistance","value":"good"},{"label":"Note","value":"During Montaj of cables respect the maximum allowed Bükülme yarıçapı. Excessive bending forces endanger the Koruma sınıfı. · Secure the connector from mechanical forces, for example by means of Kablo ties. · Close unused plug-in slots prior to commissioning. Respective sealing elements you will find under "accessories"."}] |
|---|
Splitter box M8
- Flat Gövde
- LED indicator for module supply and I/O status
- Koruma sınıfı IP67
- Suitable for drag chains and abrasion resistant

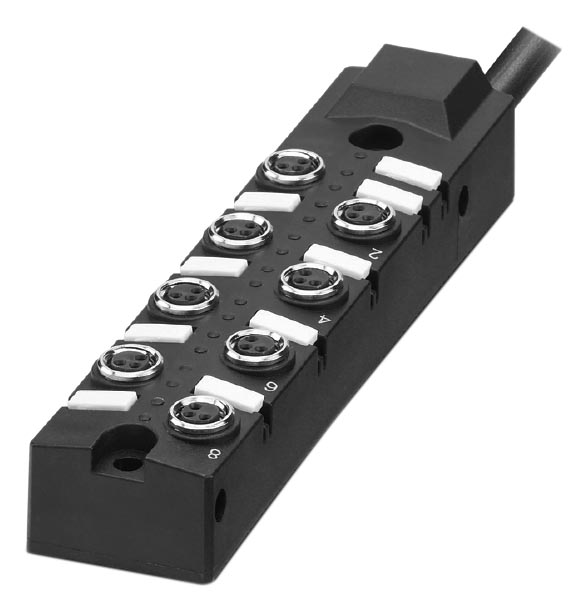

Splitter box 8 x M8 single allocation, with trunk Kablo
V3-8A-E2-5M-PUR
| [{"label" | "Bağlantı","value":"socket"},{"label":"Yapı tipi","value":"8x M8"},{"label":"Locking","value":"screw Bağlantı"},{"label":"Pin sayısı","value":"3"},{"label":"Coding","value":"A-coded"},{"label":"UL File Number","value":"E223772"},{"label":"LED yeşil","value":"supply voltage each module"},{"label":"LED sarı","value":"I/O status indication"},{"label":"Çalışma gerilimi","value":"24 V DC, max. 30 V DC"},{"label":"Çalışma akımı","value":"≤ 5 m A per channel indication element"},{"label":"Current loading capacity","value":"≤ 2 A per channel, · ≤ 2 A per plug-in station, · ≤ 6 A total current per splitter box"},{"label":"Koruma sınıfı","value":"EN 60529"},{"label":"Plug Bağlantı","value":"connector M8 x 1 : IEC 61076-2-104"},{"label":"Flammability","value":"UL 94"},{"label":"UL onayı","value":"AWM STYLE 20549 (Kablo)"},{"label":"Plug connector","value":"-25 ... 80 °C (-13 ... 176 °F)"},{"label":"Kablo, sabit Montaj","value":"-40 ... 90 °C (-40 ... 194 °F)"},{"label":"Kablo, flexing","value":"-5 ... 80 °C (23 ... 176 °F)"},{"label":"Sıkma torku","value":"0.2 Nm"},{"label":"Mating cycles","value":"min. 100"},{"label":"Kablo","value":"according to IEC/EN 60228 (DIN VDE 0295) class 5"},{"label":"Sheath çap","value":"7.9 mm"},{"label":"Bükülme yarıçapı","value":"> 10 x kablo çapı, hareketli Montaj · > 7.5 x kablo çapı, sabit Montaj"},{"label":"Kılıf rengi","value":"siyah (similar to RAL 9005)"},{"label":"Cores","value":"Signal wires (4): 8 x 0.34 mm2 · Supply line (1, 3): 2 x 0.75 mm2"},{"label":"Cores Renk","value":"Core 1/4 (A): beyaz · Core 2/4 (A): yeşil · Core 3/4 (A): sarı · Core 4/4 (A): Gri · Core 5/4 (A): pink · Core 6/4 (A): kırmızı · Core 7/4 (A): siyah · Core 8/4 (A): violet · Core 1 ... 8/1 (+24 V): brown · Core 1 ... 8/3 (0 V): mavi"},{"label":"Core construction","value":"Signal line (4): 19 x 0.15 mm · Supply line (1, 3): 42 x 0.15 mm"},{"label":"Uzunluk","value":"5 m"},{"label":"Kablo code","value":"Li YY 11Y-HF"},{"label":"Drag chain cycles","value":"min. 1500000"},{"label":"Motion velocity","value":"max. 2 m/s"},{"label":"Traverse distance","value":"2 m"},{"label":"Ağırlık","value":"627.5 g"},{"label":"Yükseklik","value":"20 mm"},{"label":"Genişlik","value":"30 mm"},{"label":"PWIS free","value":"var"},{"label":"Screw Bağlantı","value":"Cu alloy , nickel-plated"},{"label":"Body","value":"PBT, siyah"},{"label":"Seal","value":"FKM"},{"label":"Contact surface","value":"Ni/Au"},{"label":"Sheathing","value":"PUR"},{"label":"Core insulation","value":"PVC"},{"label":"Chemical resistance","value":"good"},{"label":"Note","value":"During Montaj of cables respect the maximum allowed Bükülme yarıçapı. Excessive bending forces endanger the Koruma sınıfı. · Secure the connector from mechanical forces, for example by means of Kablo ties. · Close unused plug-in slots prior to commissioning. Respective sealing elements you will find under "accessories"."}] |
|---|
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
