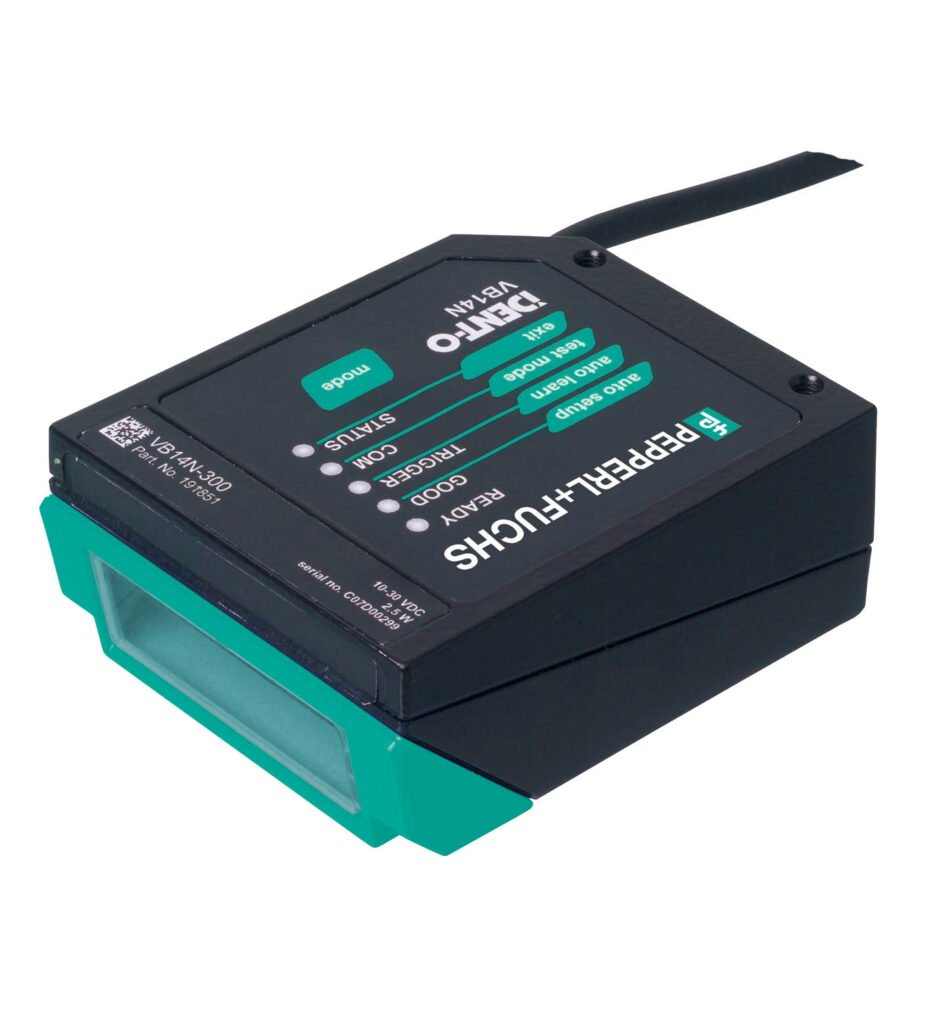

VB14N-600
| [{"label" | "Işık kaynağı","value":"laser diode"},{"label":"Işık tipi","value":"modüle görünür kırmızı ışık"},{"label":"Note","value":"LASER LIGHT , DO NOT STARE INTO BEAM"},{"label":"Laser class","value":"2"},{"label":"Wave Uzunluk","value":"650 nm"},{"label":"Beam divergence","value":"< 1.5 mrad"},{"label":"Pulse Uzunluk","value":"1.5 ms"},{"label":"Repetition rate","value":"200 Hz"},{"label":"max. pulse energy","value":"3.26 µJ"},{"label":"Scan rate","value":"600 ... 1000 s-1"},{"label":"Read distance","value":"190 ... 600 mm"},{"label":"Açılma açısı","value":"50 °"},{"label":"Optik yüzey","value":"front or on side (with deviation mirror)"},{"label":"Resolution","value":"0.35 mm ( 14 mils )"},{"label":"Çalışma göstergesi","value":"LED mavi: Power on, LED yeşil: Ready to read (READY), LED yeşil: Read successfully (GOOD), LED sarı: External trigger signal pending (TRIGGER), LED sarı: Communication active (COM), LED kırmızı: "no read" (STATUS)"},{"label":"Çalışma gerilimi","value":"10 ... 30 V DC"},{"label":"Power consumption","value":"max. 5 W"},{"label":"Interface type","value":"serial , RS-232 and RS-485 en fazla 115.2 k Bit/s · ID-NET™ en fazla 1 Mbit/s"},{"label":"Input type","value":"External triggering"},{"label":"Sinyal çıkışı","value":"2, programmable, optocoupled"},{"label":"Anahtarlama gerilimi","value":"max. 40 V DC"},{"label":"Anahtarlama akımı","value":"max. 40 m A"},{"label":"Gerilim düşümü","value":"1 V at load current ≤ 10 m A"},{"label":"Directive conformity","value":"EMC Directive 2004/108/EC"},{"label":"Noise immunity","value":"EN 61000-6-2:2005"},{"label":"Emitted interference","value":"EN 55022"},{"label":"Koruma sınıfı","value":"EN 60529"},{"label":"Ortam sıcaklığı","value":"0 ... 45 °C (32 ... 113 °F)"},{"label":"Storage temperature","value":"-20 ... 70 °C (-4 ... 158 °F)"},{"label":"Relative humidity","value":"90 % , non-condensing"},{"label":"Shock resistance","value":"IEC 68-2-27 Test EA 30G; 11 ms; 3 impacts on each axis"},{"label":"Vibration resistance","value":"IEC 68-2-6 Test FC 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis"},{"label":"Bağlantı","value":"1 m Kablo with 25-pin Sub-D connector"},{"label":"Gövde","value":"Aluminum"},{"label":"Ağırlık","value":"330 g"},{"label":"Yükseklik","value":"34 mm"},{"label":"Genişlik","value":"68 mm"},{"label":"Depth","value":"84 mm"}] |
|---|
Barcode scanner
- Line scanner
- Simple operation via function keys: test mode, code teaching and code optimization
- Code reconstructor
- Connect en fazla 32 scanners
- Sturdy aluminum Gövde
- Two serial interfaces RS 232 / RS 485
- Engine control (On/Off) possible
- Koruma sınıfı IP65
Barcode scanner, Line scanner, Simple operation via function keys: test mode, code teaching and code optimization, Code reconstructor, Connect en fazla 32 scanners, Sturdy aluminum Gövde
VB14N-600
| [{"label" | "Işık kaynağı","value":"laser diode"},{"label":"Işık tipi","value":"modüle görünür kırmızı ışık"},{"label":"Note","value":"LASER LIGHT , DO NOT STARE INTO BEAM"},{"label":"Laser class","value":"2"},{"label":"Wave Uzunluk","value":"650 nm"},{"label":"Beam divergence","value":"< 1.5 mrad"},{"label":"Pulse Uzunluk","value":"1.5 ms"},{"label":"Repetition rate","value":"200 Hz"},{"label":"max. pulse energy","value":"3.26 µJ"},{"label":"Scan rate","value":"600 ... 1000 s-1"},{"label":"Read distance","value":"190 ... 600 mm"},{"label":"Açılma açısı","value":"50 °"},{"label":"Optik yüzey","value":"front or on side (with deviation mirror)"},{"label":"Resolution","value":"0.35 mm ( 14 mils )"},{"label":"Çalışma göstergesi","value":"LED mavi: Power on, LED yeşil: Ready to read (READY), LED yeşil: Read successfully (GOOD), LED sarı: External trigger signal pending (TRIGGER), LED sarı: Communication active (COM), LED kırmızı: "no read" (STATUS)"},{"label":"Çalışma gerilimi","value":"10 ... 30 V DC"},{"label":"Power consumption","value":"max. 5 W"},{"label":"Interface type","value":"serial , RS-232 and RS-485 en fazla 115.2 k Bit/s · ID-NET™ en fazla 1 Mbit/s"},{"label":"Input type","value":"External triggering"},{"label":"Sinyal çıkışı","value":"2, programmable, optocoupled"},{"label":"Anahtarlama gerilimi","value":"max. 40 V DC"},{"label":"Anahtarlama akımı","value":"max. 40 m A"},{"label":"Gerilim düşümü","value":"1 V at load current ≤ 10 m A"},{"label":"Directive conformity","value":"EMC Directive 2004/108/EC"},{"label":"Noise immunity","value":"EN 61000-6-2:2005"},{"label":"Emitted interference","value":"EN 55022"},{"label":"Koruma sınıfı","value":"EN 60529"},{"label":"Ortam sıcaklığı","value":"0 ... 45 °C (32 ... 113 °F)"},{"label":"Storage temperature","value":"-20 ... 70 °C (-4 ... 158 °F)"},{"label":"Relative humidity","value":"90 % , non-condensing"},{"label":"Shock resistance","value":"IEC 68-2-27 Test EA 30G; 11 ms; 3 impacts on each axis"},{"label":"Vibration resistance","value":"IEC 68-2-6 Test FC 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis"},{"label":"Bağlantı","value":"1 m Kablo with 25-pin Sub-D connector"},{"label":"Gövde","value":"Aluminum"},{"label":"Ağırlık","value":"330 g"},{"label":"Yükseklik","value":"34 mm"},{"label":"Genişlik","value":"68 mm"},{"label":"Depth","value":"84 mm"}] |
|---|
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
