Pepperl+Fuchs
Fieldbus

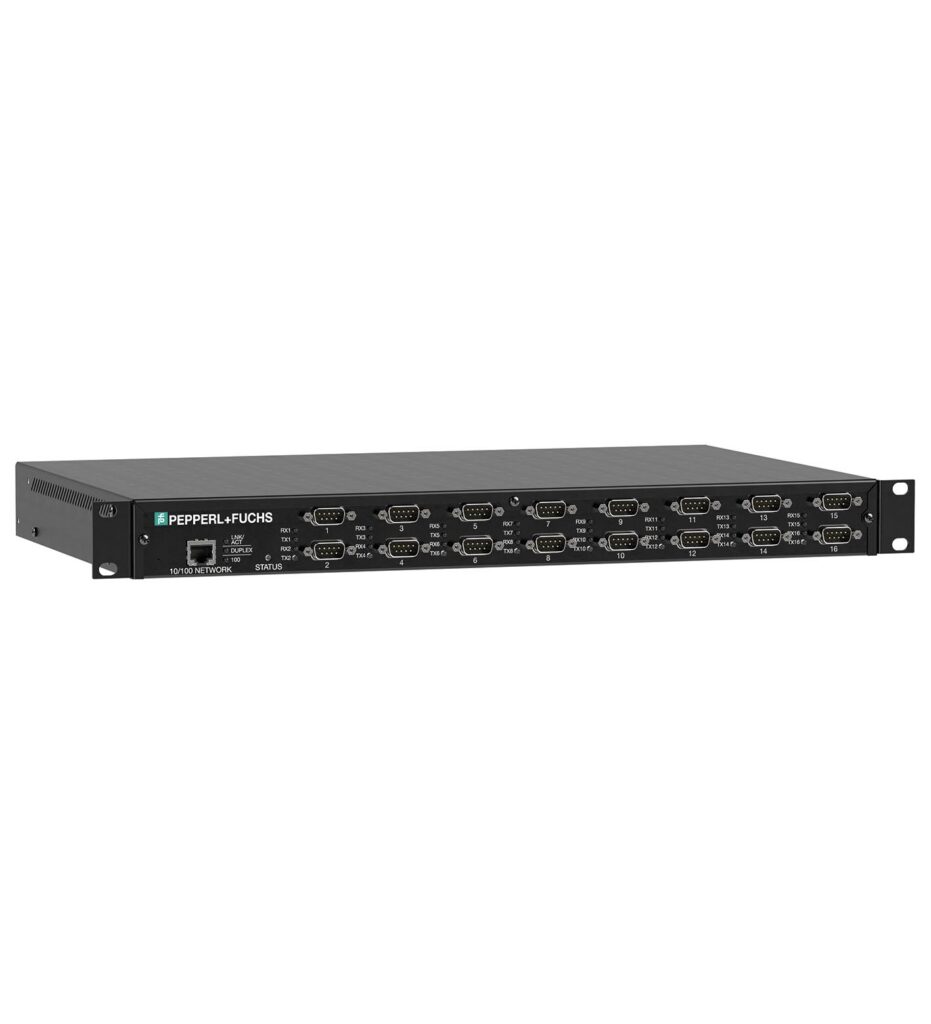

ICDM-RX/TCP-16DB9/RJ45-RM
| UL File Number | E185802 |
|---|---|
| MTBF | 15.5 a |
| LED indication | see manual |
| Rated Çalışma gerilimi | 90 ... 260 V AC |
| Power consumption | 10.9 W |
Serial Device Server
- Web-based configuration
- RS-232/422/485 software selectable interfaces
- NEMA TS2 Certified
- TCP/IP & UDP Socket Services
- Device drivers (Windows and Linux)
- Rack mount with DB9 serial connectors
Device Server 16-port rack mount DB9
ICDM-RX/TCP-16DB9/RJ45-RM
| UL File Number | E185802 |
|---|---|
| MTBF | 15.5 a |
| LED indication | see manual |
| Rated Çalışma gerilimi | 90 ... 260 V AC |
| Power consumption | 10.9 W |
| Nominal voltage | 120 V AC / 47 ... 63 Hz |
| Current consumption | 90 m A |
| Surge protection | 15 KV / 200 A for 1 ns |
| Interface type | Software selectable interfaces: RS-232 , RS-422 , RS-485 (2 and 4 telli) |
| Physical | 16 x DB9 |
| Protocol | Raw serial |
| Supported baud rates | 300 bps to 230Kbps |
| Additional protocols | ARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP socket services, Telnet, and TFTP, and supports IP multicast data transmission |
| Transfer rate | 10/100 Mbps |
| Directive 2014/30/EU | EN 55032:2015+A11:2020 , EN 55035:2017/A11:2020 |
| Directive 2014/35/EU | EN 62368-1:2014 |
| Ro HS | EN IEC 63000:2018 |
| Electrical safety | EN 62368-1:2014-08 |
| Emitted interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 |
| Noise immunity | EN 55035:2017/A11:2020 |
| Ortam sıcaklığı | -40 ... 75 °C (-40 ... 167 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 3048 m |
| Koruma sınıfı | IP20 |
| Bağlantı | Internal power supply: US and EURO cords · Fieldbus: 1 x RJ45 · Inputs/outputs: 16 x DB9 |
| Gövde | steel, siyah coated |
| Ağırlık | 2.9kg |
| Yükseklik | 44.2 mm |
| Genişlik | 275.3 mm |
| Uzunluk | 438.2 mm |
| Yapı tipi | Cabinet module |
| Mounting | Rack mount |
