Pepperl+Fuchs
Fieldbus

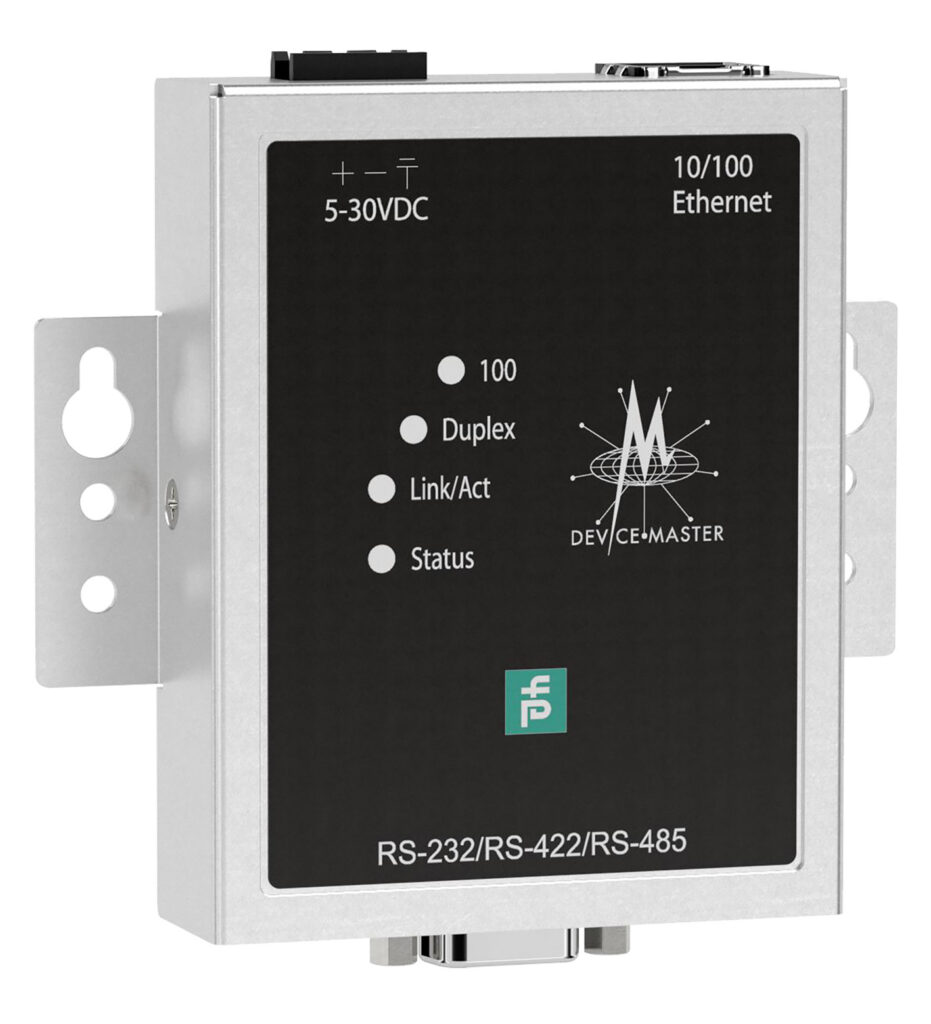

ICDM-RX/TCP-DB9/RJ45-PM
| UL File Number | E185802 |
|---|---|
| MTBF | 48.4 a |
| LED indication | see manual |
| Rated Çalışma gerilimi | 5 ... 30 V DC |
| Power consumption | 2.1 W |
Serial Device Server
- Panel mounting and DB9 connector
- RS-232/422/485 software selectable interfaces
- Web-based configuration
- TCP/IP & UDP Socket Services
- Device drivers (Windows and Linux)
Serial Device Server 1-port Panel Mount DB9
ICDM-RX/TCP-DB9/RJ45-PM
| UL File Number | E185802 |
|---|---|
| MTBF | 48.4 a |
| LED indication | see manual |
| Rated Çalışma gerilimi | 5 ... 30 V DC |
| Power consumption | 2.1 W |
| Nominal voltage | 24 V DC |
| Current consumption | 50 m A |
| Interface type | Software selectable interfaces: RS-232 RS-422 RS-485 2 telli |
| Physical | 1 x DB9 |
| Protocol | Raw serial |
| Supported baud rates | 300 bps to 230Kbps |
| Additional protocols | ARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP socket services, Telnet, and TFTP, and supports IP multicast data transmission |
| Transfer rate | 10/100 Mbps |
| Directive 2014/30/EU | EN 61000-6-2:2005 , EN 61000-6-4:2007 + A1:2011 |
| Ro HS | EN IEC 63000:2018 |
| Electrical safety | CSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950 |
| Emitted interference | EN 61000-6-4, EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 |
| Noise immunity | EN 61000-6-2 |
| Ortam sıcaklığı | -40 ... 75 °C (-40 ... 167 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 3048 m |
| Koruma sınıfı | IP20 |
| Bağlantı | Power Supply: pluggable screw terminal · Fieldbus: 1 x RJ45 · Inputs/outputs: 1 x DB9 |
| Gövde | stainless steel |
| Ağırlık | 220g |
| Yükseklik | 71.1 mm |
| Genişlik | 20.3 mm |
| Uzunluk | 91.4 mm |
| Yapı tipi | Cabinet module |
| Mounting | panel mount |
