Pepperl+Fuchs
Fieldbus

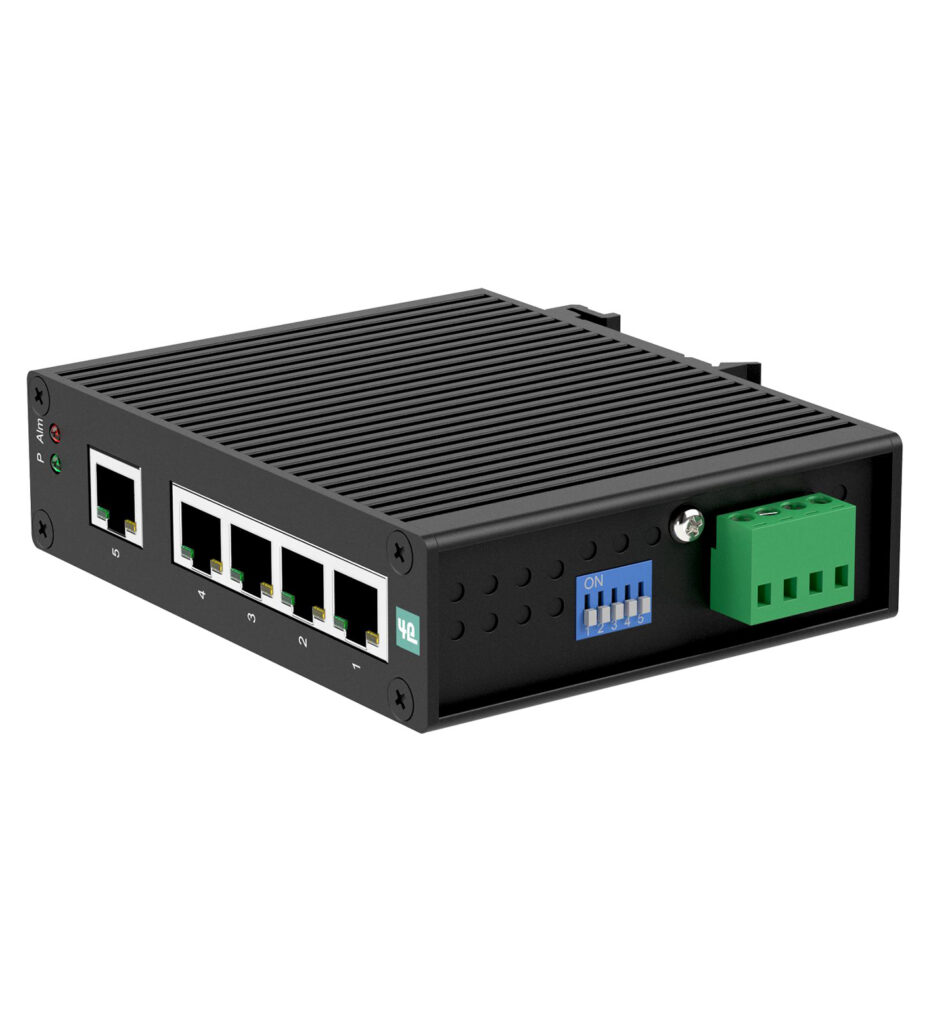

ICRL-U-5RJ45-DIN-NT
| UL File Number | E185778 |
|---|---|
| MTBF | 93.4 |
| Auto-MDI(-X) | var |
| Autonegotiation | var |
| Ethernet Interface | Industrial Ethernet |
Ethernet switch unmanaged
- Five – 10/100BASE-TX ports
- Rugged Gövde for use in harsh environments
- Alarm relay output for port event notifications
- Input power range of 18 to 32VDC
- Suitable for PROFINET IO and Ether Net/IP
Ethernet unmanaged switch with 5 RJ45 ports and port alarm
ICRL-U-5RJ45-DIN-NT
| UL File Number | E185778 |
|---|---|
| MTBF | 93.4 |
| Auto-MDI(-X) | var |
| Autonegotiation | var |
| Ethernet Interface | Industrial Ethernet |
| Transfer rate | 10BASE-T, 100BASE-TX |
| Kablo type | Category 5e or better |
| IEEE 802.3 10BASE-T | var |
| IEEE 802.3u 100BASE-TX | var |
| IEEE 802.3x Flow Control and Back-pressure | var |
| LED indication | see manual |
| Rated Çalışma gerilimi | 18 ... 32 V DC |
| Power consumption | 3 W |
| General information | Port Failure, DIP switch enabled, Relay Rating, 1A Max. @ 24VDC |
| Nominal voltage | 24 V DC |
| Current consumption | typ. 20 m A |
| Physical | RJ45 |
| Number/Type | 5 x RJ45 |
| Directive 2014/30/EU | EN61000-6-2, EN55024 |
| Electrical safety | CSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950 |
| Emitted interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 |
| Noise immunity | EN 55024 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 3048 m |
| Koruma sınıfı | IP30 |
| Bağlantı | Power Supply Terminal Block · Ethernet 5 x RJ45 |
| Gövde | Aluminum |
| Ağırlık | 295 g |
| Yükseklik | 112 mm |
| Genişlik | 30.5 mm |
| Uzunluk | 99 mm |
| Yapı tipi | Cabinet module |
| Mounting | DIN rail or direct panel mounting |
