Pepperl+Fuchs
Fieldbus

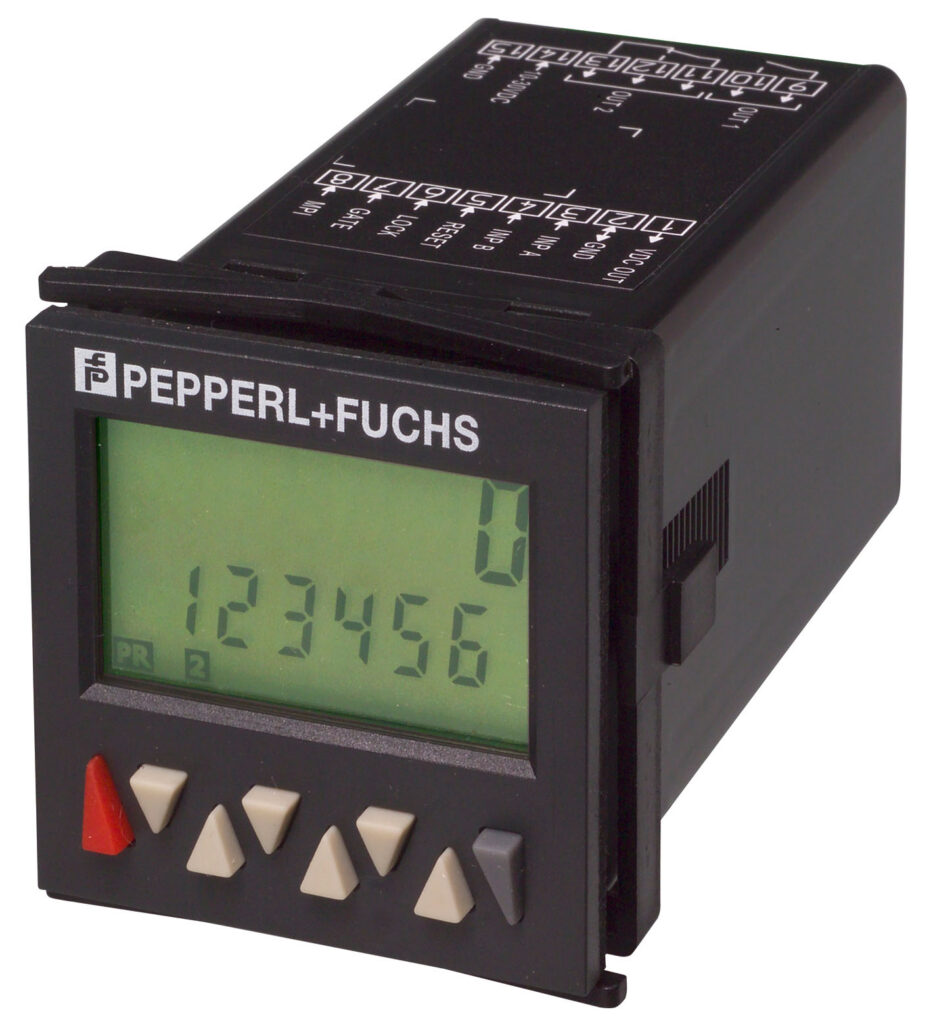

KC-LCD-48-1R-24VDC
| [{"label" | "Pre-selection","value":"single"},{"label":"Data storage","value":"> 10 years, EEPROM"},{"label":"Programming","value":"keypad-driven menu"},{"label":"Type","value":"2-line, 2 x 6-digit LC display with leading sign"},{"label":"Display value","value":"digit Yükseklik 9 mm"},{"label":"Key interlock","value":"via "high" potential at "LOCK" input"},{"label":"Decimal point","value":"0 to max 5 fractional digits"},{"label":"Scale factor","value":"0.0001 ... 99.9999"},{"label":"Reset","value":"manually or external"},{"label":"Fusing","value":"11 … 30 V DC: T 0.2 A"},{"label":"Çalışma gerilimi","value":"11 ... 30 V DC"},{"label":"Power consumption","value":"max. 4 W"},{"label":"Bağlantı","value":"Counter inputs: A and B · Control/reset inputs: LOCK, RESET"},{"label":"High","value":"3.5 ... 30 V DC"},{"label":"Low","value":"0 ... 2 V DC"},{"label":"Counting frequency","value":"30 Hz / 5 k Hz"},{"label":"Minimum pulse duration","value":"Control/reset inputs: static / 1 ms"},{"label":"Impedance","value":"10 k Ohm"},{"label":"Pulse counter","value":"Counting with counting direction (cnt.dir), · difference counting (up.dn), · up/down counting (quad),"},{"label":"Timer","value":"Time measurement via GATE input (Fr Erun), · counter input A: Start, counter input B: Stop (Inp A.Inp B.), · counter input B: Start/Stop (Inp B.Inp B.),"},{"label":"Relay","value":"changeover contact"},{"label":"Anahtarlama gerilimi","value":"max. 250 V AC / 110 V DC"},{"label":"Anahtarlama akımı","value":"max. 3 A AC/DC, min. 30 m A DC,"},{"label":"Switching power","value":"max. 750 VA / 90 W"},{"label":"Mechanical life","value":"2 x 107 switching cycles"},{"label":"Electrical life","value":"5 x 104 cycles at 3 A"},{"label":"Tepki süresi","value":"< 15 ms pulse counter · < 10 ms time counter"},{"label":"Sensor supply","value":"connected power supply is looped through, · max. 50 m A"},{"label":"EMC Directive 2004/108/EC","value":"EN 61000-6-2:2005, EN 50295:1999"},{"label":"Emitted interference","value":"DIN EN 55011:2009, Class B"},{"label":"Mech. capacity","value":"EN 60068-2-6:2008 · 10 … 55 Hz / 1 mm / XYZ · 30 min in each direction"},{"label":"Shock and impact resistance","value":"EN 60068-2-27:1995 · 100 G / 2 ms / XYZ · 3 times in each direction"},{"label":"Ortam sıcaklığı","value":"-10 ... 50 °C (14 ... 122 °F)"},{"label":"Storage temperature","value":"-25 ... 75 °C (-13 ... 167 °F)"},{"label":"Relative humidity","value":"≤ 93 % at 40 °C · (non-condensing)"},{"label":"Altitude","value":"0 ... 2000 m"},{"label":"Koruma sınıfı","value":"IP65 (front)"},{"label":"Ağırlık","value":"yak. 117 g"},{"label":"Boyutlar","value":"48 mm x 48 mm x 109.8 mm"}] |
|---|
Timer, Counter
- Counter/Timer
- Adding/subtracting via 2 separate inputs
- Batch controller with 1 pre-selection
- Easy-to-read, 2-line LCD display with symbols for indicated pre-selection and output status
- Display range and preselection range from -999999 en fazla 999999Overflow will be evaluated correctly en fazla 1 decade
- PNP and NPN sensors can be connected
- Koruma sınıfı IP65 (front only)
Counter/Timer, Adding/subtracting via 2 separate inputs, Batch controller with 1 pre-selection, Easy-to-read, 2-line LCD display with symbols for indicated pre-selection and output status, Display range and preselection range from -999999 en fazla 999999, Overflow will be evaluated correctly en fazla 1 decade, Çalışma gerilimi: 11 … 30 V DC, Relay: changeover contact, Boyutlar: 48 mm x 48 mm x 109.8 mm
KC-LCD-48-1R-24VDC
| [{"label" | "Pre-selection","value":"single"},{"label":"Data storage","value":"> 10 years, EEPROM"},{"label":"Programming","value":"keypad-driven menu"},{"label":"Type","value":"2-line, 2 x 6-digit LC display with leading sign"},{"label":"Display value","value":"digit Yükseklik 9 mm"},{"label":"Key interlock","value":"via "high" potential at "LOCK" input"},{"label":"Decimal point","value":"0 to max 5 fractional digits"},{"label":"Scale factor","value":"0.0001 ... 99.9999"},{"label":"Reset","value":"manually or external"},{"label":"Fusing","value":"11 … 30 V DC: T 0.2 A"},{"label":"Çalışma gerilimi","value":"11 ... 30 V DC"},{"label":"Power consumption","value":"max. 4 W"},{"label":"Bağlantı","value":"Counter inputs: A and B · Control/reset inputs: LOCK, RESET"},{"label":"High","value":"3.5 ... 30 V DC"},{"label":"Low","value":"0 ... 2 V DC"},{"label":"Counting frequency","value":"30 Hz / 5 k Hz"},{"label":"Minimum pulse duration","value":"Control/reset inputs: static / 1 ms"},{"label":"Impedance","value":"10 k Ohm"},{"label":"Pulse counter","value":"Counting with counting direction (cnt.dir), · difference counting (up.dn), · up/down counting (quad),"},{"label":"Timer","value":"Time measurement via GATE input (Fr Erun), · counter input A: Start, counter input B: Stop (Inp A.Inp B.), · counter input B: Start/Stop (Inp B.Inp B.),"},{"label":"Relay","value":"changeover contact"},{"label":"Anahtarlama gerilimi","value":"max. 250 V AC / 110 V DC"},{"label":"Anahtarlama akımı","value":"max. 3 A AC/DC, min. 30 m A DC,"},{"label":"Switching power","value":"max. 750 VA / 90 W"},{"label":"Mechanical life","value":"2 x 107 switching cycles"},{"label":"Electrical life","value":"5 x 104 cycles at 3 A"},{"label":"Tepki süresi","value":"< 15 ms pulse counter · < 10 ms time counter"},{"label":"Sensor supply","value":"connected power supply is looped through, · max. 50 m A"},{"label":"EMC Directive 2004/108/EC","value":"EN 61000-6-2:2005, EN 50295:1999"},{"label":"Emitted interference","value":"DIN EN 55011:2009, Class B"},{"label":"Mech. capacity","value":"EN 60068-2-6:2008 · 10 … 55 Hz / 1 mm / XYZ · 30 min in each direction"},{"label":"Shock and impact resistance","value":"EN 60068-2-27:1995 · 100 G / 2 ms / XYZ · 3 times in each direction"},{"label":"Ortam sıcaklığı","value":"-10 ... 50 °C (14 ... 122 °F)"},{"label":"Storage temperature","value":"-25 ... 75 °C (-13 ... 167 °F)"},{"label":"Relative humidity","value":"≤ 93 % at 40 °C · (non-condensing)"},{"label":"Altitude","value":"0 ... 2000 m"},{"label":"Koruma sınıfı","value":"IP65 (front)"},{"label":"Ağırlık","value":"yak. 117 g"},{"label":"Boyutlar","value":"48 mm x 48 mm x 109.8 mm"}] |
|---|
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
