Pepperl+Fuchs
Fieldbus

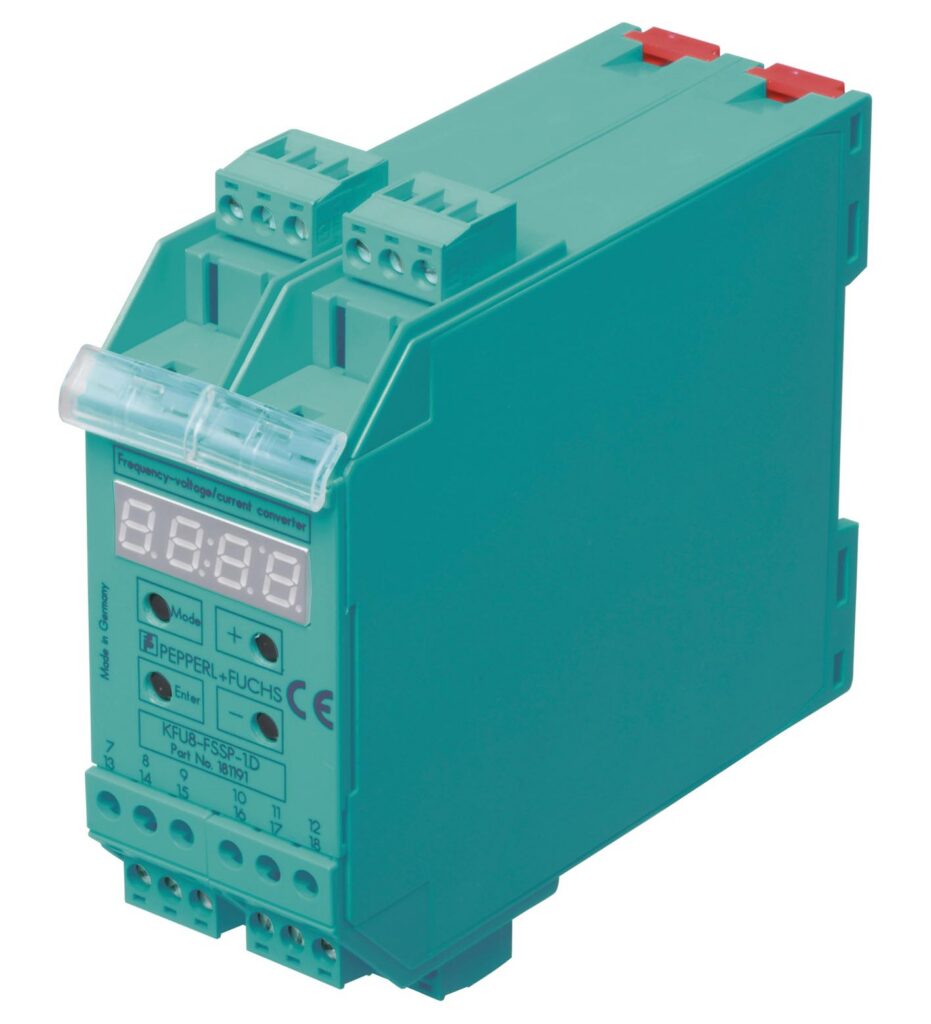

KFU8-FSSP-1.D
| MTTFd | 100 a |
|---|---|
| Rated voltage | 196 ... 250 V AC , 98 ... 127 V AC , 50/60 Hz · 20 ... 30 V DC |
| Fusing | external fusing 4 A |
| Power consumption | AC: < 5 VA · DC: < 5 W |
| Type | 4-digit, 7-segment kırmızı display, 7 mm digit Yükseklik |
Frequency voltage current converter
- Limit frequency 40 k Hz
- Voltage or current ouptput
- Incrementing output(Spacing factor 1 … 9999)
- Multi-range power pack
- 2-, 3-, 4 telli and NAMUR sensors as well as rotary encoder connectable
- Auxiliary power output for sensors
- Bağlantı via Power Rail
- Period measurement
- Display: Input in Hz or 1/min, output in V or m A
- ayarlanabilir updating of indication (0,001 … 2,5 s)
Limit frequency 40 k Hz, Voltage or current ouptput, Incrementing output, (Spacing factor 1 … 9999), Multi-range power pack, 2-, 3-, 4 telli and NAMUR sensors as well as rotary encoder connectable, Rated voltage: 196 … 250 V AC , 98 … 127 V AC , 50/60 Hz , 20 … 30 V DC, Connectable sensor types: NAMUR sensors according to DIN EN 60947-5-6, Bağlantı: terminals 7+, 13- sensor supply, terminals 14, 15 NPN/PNP input (galvanically isolated)
KFU8-FSSP-1.D
| MTTFd | 100 a |
|---|---|
| Rated voltage | 196 ... 250 V AC , 98 ... 127 V AC , 50/60 Hz · 20 ... 30 V DC |
| Fusing | external fusing 4 A |
| Power consumption | AC: < 5 VA · DC: < 5 W |
| Type | 4-digit, 7-segment kırmızı display, 7 mm digit Yükseklik |
| Display interval | 0.002 ... 9999 Hz or · 0.01 ... 9999 min-1 |
| Parameter assignment | keypad-driven menu |
| Bağlantı | terminals 8-, 9+ |
| Connectable sensor types | NAMUR sensors according to DIN EN 60947-5-6 |
| Open loop voltage | 8.2 V DC |
| Short-circuit current | 6.5 m A |
| Switching point | 1.2 ... 2.1 m A Switching hysteresis yak. 0.2 m A |
| Impedance | 1.2 k Ohm |
| Sensor supply | 19 ... 31 V DC non-stabilised; ≤ 30 m A kısa devre korumalı |
| Analog voltage output | 0 ... 10 V DC; 2 ... 10 V DC; 30 m A max.; resolution: 12 m V; Ri ≥ 330 Ω (terminal 5+, 6-) |
| Analog current output | 0 ... 20 m A; 4 ... 20 m A; resolution: 25 µA; Ri ≤ 600 Ω (terminal 4-, 5+) |
| Digital incrementing | ≥ (Ub -3 V), 20 m A, short-circuit proof (Terminals 1-, 2+) · with frequency division Fin /1 ... Fin /9999 |
| Input frequency | ≤ 40000 Hz, pulse pause/pulse Uzunluk: ≥ 12 µs |
| Deviation | ≤ 0.2 % of full-scale value |
| Changing interval | 5 ms (Internal processing time) |
| Electromagnetic compatibility | acc. to EN 50081-2 / EN 50082-2 |
| Ortam sıcaklığı | -25 ... 40 °C (-13 ... 104 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | max. 80 %, non-condensing |
| Altitude | 0 ... 2000 m |
| Operating conditions | The device has only to be used in an indoor area. |
| Bağlantı assembly | Caution: Please be aware that the device may only be connected to a switchable power supply. The switch or circuit breaker must be easy to reach and identified as the separator for the device. |
| Koruma sınıfı | IP20 |
| Yapı tipi | modular terminal Gövde in Makrolon, System KF · For use in the switch cabinet/switch cabinet module |
| Mounting | snap-on to 35 mm standard rail or screw fixing |
