Pepperl+Fuchs
Fieldbus

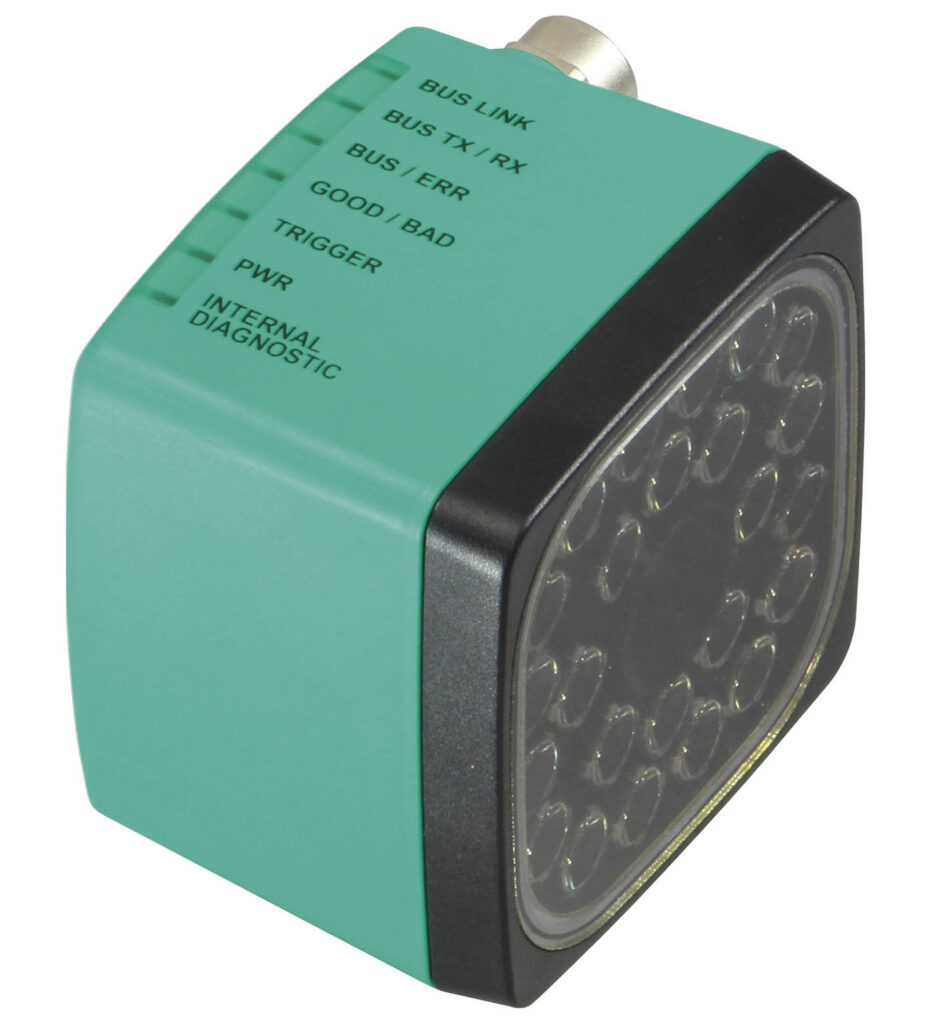

OPC120P-F201-B17
| Işık tipi | Integrated LED lightning (beyaz) |
|---|---|
| Polarization filter | var |
| Symbologies | Data Matrix |
| Read distance | 70 ... 180 mm · Nominal distance: 120 mm |
| Reading field | Minimum read field: 28 mm x 45 mm · Read field at nominal distance: 45 mm x 70 mm · Maximum read field: 65 mm x 105 mm |
Stationary read device
- Reading on highly reflective surfaces with new polarization filter
- PROFINET interface with integrated switch
- Reads Data Matrix codes at high speeds of en fazla 10 m/s at 50 readings/s
Optical Print Inspector, reading of Data Matrix codes, PROFINET, speeds en fazla 10 m/sec, polarization filter
OPC120P-F201-B17
| Işık tipi | Integrated LED lightning (beyaz) |
|---|---|
| Polarization filter | var |
| Symbologies | Data Matrix |
| Read distance | 70 ... 180 mm · Nominal distance: 120 mm |
| Reading field | Minimum read field: 28 mm x 45 mm · Read field at nominal distance: 45 mm x 70 mm · Maximum read field: 65 mm x 105 mm |
| Modul size | Minimum module size: 0.2 mm |
| Evaluation frequency | en fazla 50 Hz |
| Target velocity | triggered max. 10 m/s |
| Symbol size | rectangular en fazla 144 x 144 modules · rectangular en fazla 16 x 48 modules |
| Data format | ASCII, C40, Text, X12, Edifact, Base 256 , all according to ISO 646 |
| Orientation | omnidirectional |
| Type | CMOS , Global shutter |
| Number of pixels | 752 x 480 pixels |
| Gri scale | 256 |
| Image recording | real-time , Program-controlled or triggered externally |
| MTTFd | 40.5 a |
| Görev süresi (TM) | 8 a |
| Tanı kapsamı (DC) | 0 % |
| LED indication | 7 LEDs (communication, alignment aid, status information) |
| Çalışma gerilimi | 24 V DC ± 15% , PELV |
| Boşta besleme akımı | max. 300 m A |
| Power consumption | 6 W |
| Interface type | 100 BASE-TX |
| Protocol | PROFINET IO Real-Time (RT) Conformance class A |
| Transfer rate | 100 MBit/s |
| Input voltage | to be applied externally 24 V ± 15% PELV |
| Number/Type | Trigger |
| Input current | yak. 10 m A at 24 V DC |
| Switching threshold | low: < 10 V, high: > 15 V |
| Kablo uzunluğu | max. 30 m |
| Anahtarlama tipi | PNP |
| Anahtarlama gerilimi | to be applied externally 24 V ± 15 % PELV |
| Anahtarlama akımı | 100 m A each output |
| Noise immunity | EN 61326-1:2006 |
| Emitted interference | EN 61000-6-4:2007/A1:2011 |
| Koruma sınıfı | EN 60529 |
| Photobiological safety | Risk group 1 according to IEC 62471 |
| CCC onayı | CCC onayı / marking not required for products rated ≤36 V |
| Ortam sıcaklığı | 0 ... 45 °C (32 ... 113 °F) |
| Storage temperature | -20 ... 85 °C (-4 ... 185 °F) |
| Relative humidity | 90 % , non-condensing |
| Bağlantı | 8-pin, M12x1 connector, standard (supply+IO) , · 4-pin, M12x1 socket, D-coded (LAN) , · 4-pin, M12x1 socket, D-coded (LAN) |
| Gövde | PC/ABS |
| Optik yüzey | Plastic pane |
| Montaj | 4 x M6 threading |
| Ağırlık | yak. 200 g |
| Yükseklik | 70 mm |
| Genişlik | 70 mm |
| Depth | 53 mm |
