Pepperl+Fuchs
Fotoelektrik Sensörler

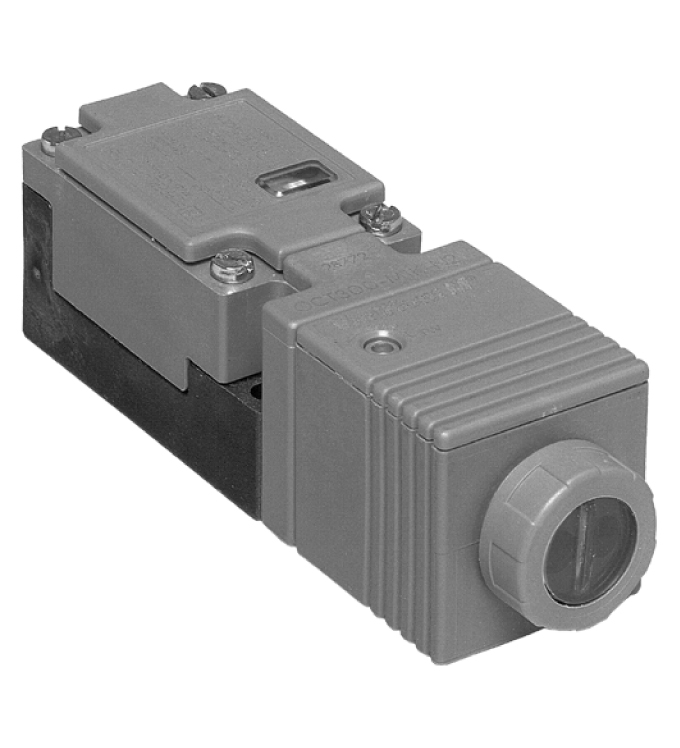

OCT300-M1K-N2
| Algılama menzili | 0 ... 300 mm |
|---|---|
| Adjustment range | 70 ... 300 mm |
| Reference target | standard beyaz 200 mm x 200 mm |
| Işık kaynağı | IRED , 880 nm |
| Işık tipi | modulated kızılötesi light |
Yansımalı (diffuse) sensör, NAMUR
- ATEX-, IECEX approval for zone 20 (Dust) and zone 1 (Gas)
- Intrinsically safe, Ex op is ia IIC T6 Gb/IIIC T 135 °C Da
- ayarlanabilir sensor head
- Scratch resistant mineral glass lens
Yansımalı (diffuse) sensör, NAMUR, special design, 300 mm Algılama menzili, kızılötesi light, light/dark on, DC versiyon, NAMUR output, terminal compartment, ATEX-, IECEX approval for zone 20 (Dust) and zone 1 (Gas), Intrinsically safe, Ex op is ia IIC T6 Gb/IIIC T 135 °C Da, ayarlanabilir sensor head , Scratch resistant mineral glass lens
OCT300-M1K-N2
| Algılama menzili | 0 ... 300 mm |
|---|---|
| Adjustment range | 70 ... 300 mm |
| Reference target | standard beyaz 200 mm x 200 mm |
| Işık kaynağı | IRED , 880 nm |
| Işık tipi | modulated kızılötesi light |
| Ortam ışığı limiti | ≤ 40000 Lux sun light · ≤ 30000 Lux halogen light |
| Temperature influence | ≤ 0.5 mm/K |
| MTTFd | 1319 a |
| Görev süresi (TM) | 20 a |
| Tanı kapsamı (DC) | 0 % |
| Fonksiyon göstergesi | LED sarı: switching state |
| Kumanda elemanları | Sensing range adjuster |
| Çalışma gerilimi | 6 ... 20 V DC (Ri yak. 0 Ohm) |
| Ripple | 5 % |
| Time delay before availability | 20 ms |
| Anahtarlama tipi | light/dark on, programmable |
| Sinyal çıkışı | 1 NAMUR output NC/NO programmable |
| Anahtarlama gerilimi | 8 V DC (Ri yak. 1 kΩ) |
| Anahtarlama frekansı | ≤ 100 Hz |
| Reference target detected | Bağlantı 1, 2: ≤ 1 m A · Bağlantı 3, 4: ≥ 2.7 m A |
| Reference target not detected | Bağlantı 1, 2: ≥ 2.7 m A · Bağlantı 3, 4: ≤ 1 m A |
| Tepki süresi | 5 ms |
| Repeat accuracy | ≤ 0.5 % of the sensing range |
| Ürün standardı | EN 60947-5-2 |
| Standartlar | EN 60947-5-6:2000 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Koruma sınıfı | IP20 |
| Bağlantı | M16 terminal compartment, İletken kesiti ≤ 2.5 mm2 |
| Gövde | PBT |
| Optik yüzey | Scratch resistant mineral glass lens |
| Ağırlık | 100 g |
| Yükseklik | 30 mm |
| Genişlik | 30 mm |
| Depth | 102 mm |
| EC-Type Examination Certificate | PTB 01 ATEX 2203 X |
| Applicant | Pepperl+Fuchs Gmb H, Lilienthalstrasse 200, 68307 Mannheim, Germany |
| CE marking | CE0102 |
| ATEX marking | Zone 1: II 2G Ex ia op is IIC T6...T1 Gb |
| Directive conformity | 2014/34/EU |
| Effective internal capacitance Ci | max. 75 n F |
| Effective internal inductance Li | negligibly small |
| General | The apparatus must be operated in accordance with the data provided in the datasheet and this operating instruction. In particular, the maximum rated voltage and the temperature range must be adhered to. The special conditions must be adhered to! The EU-type examination certificate has to be observed. |
| Montaj, commissioning | The associated apparatus must, as a minimum, fulfill the requirements for Koruma sınıfı ia and for Groups II or III, as appropriate for the operating conditions. Due to the possible risk of ignition that can occur as a result of faults and/or transient currents in the equipotential bonding system, galvanic isolation in the supply and signal current circuit is preferred. Associated apparatus without galvanic isolation may only be used if the appropriate requirements as set out in IEC 60079-14 are met. The intrinsic safety is only assured in Bağlantı with an appropriate related apparatus and according to the proof of intrinsic safety. |
| Maintenance | No modifications must be undertaken on apparatus, which is operated in hazardous areas. Repairs to such apparatus are not permissible. |
| Protection from mechanical danger | When used in the temperature range below -20 °C the sensor should be protected from knocks by the provision of an additional Gövde. |
| Koruma sınıfı required when installing connecting components | IP20 according to IEC 60529:2001 |
| Other conditions | Refer to the relevant EC type examination certificate to see the relationship between the connected circuit type, the maximum permitted Ortam sıcaklığı and the temperature class as well as effective inner reactances. |
| Protection against dangerous electrostatic charging | The device must be installed such that electrostatic discharges can be avoided. If the device is installed in accordance with the instructions provided by the manufacturer, no dangerous electrostatic charge is to be expected given the properties of the device. |
| Certificate number | IECEx PTB 12.0060 X |
| IECEx marking | Zone 1: II 2G Ex ia op is IIC T6...T1 Gb |
