Pepperl+Fuchs
Fotoelektrik Sensörler

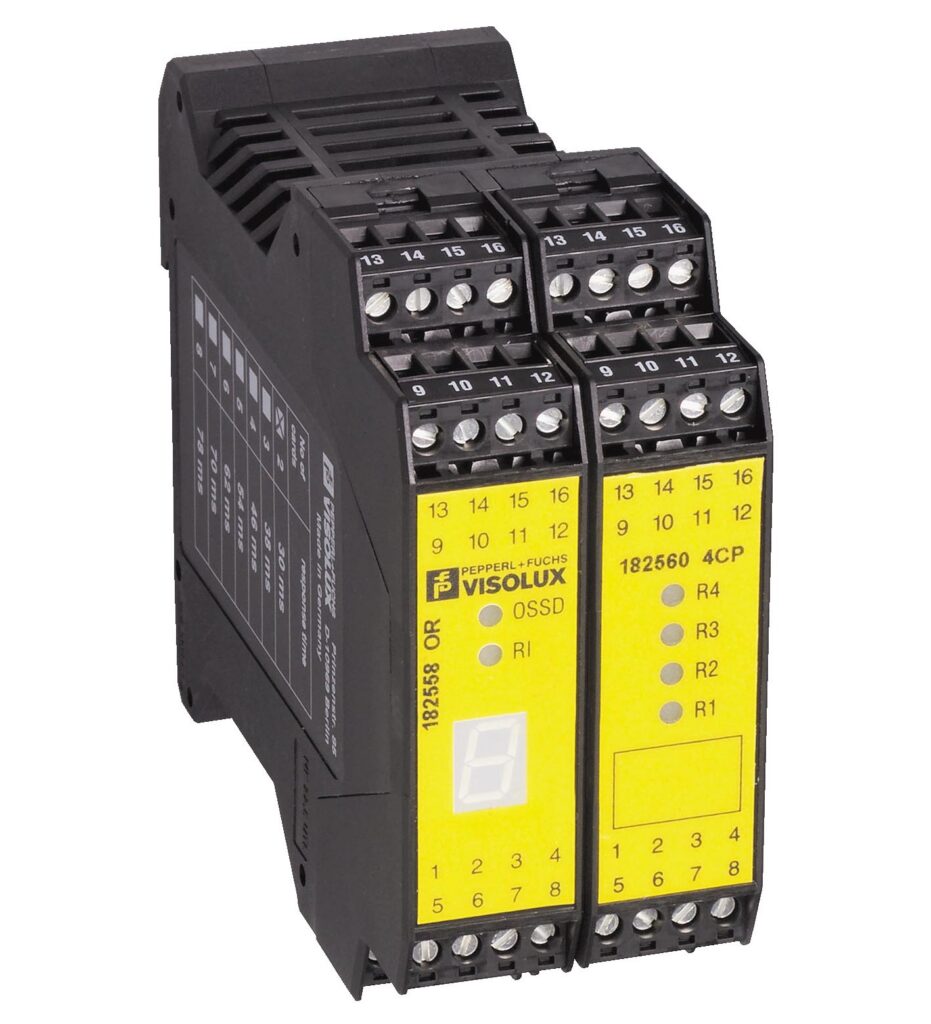

SB4-OR-4CP
| Operating mode | Start/restart disable, relay monitor, |
|---|---|
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Category | Cat. 4 |
| Görev süresi (TM) | 20 a |
Safety control unit
- Evaluation device for safety Karşılıklı (thru-beam) sensörs SLA12 and SLA29 and for 2 channel safety devices (emergency off)
- 4 sensor channels
- Self-monitoring (type 4 according to IEC/EN 61496-1)
- Operating mode can be selected by means of DIP switches
- Start/Restart disable
- Relay monitor
- Stability alarm indication
- Clearly visible LED functional display
- 7-segment diagnostic display
- Safety outputs OSSD, external status displays OSSD
Evaluation device for safety Karşılıklı (thru-beam) sensörs SLA12 and SLA29 and for 2 channel safety devices (emergency off), 4 sensor channels, Self-monitoring (type 4 according to IEC/EN 61496-1), Operating mode can be selected by means of DIP switches, Start/Restart disable , Relay monitor, Stability alarm indication, Clearly visible LED functional display, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Çalışma gerilimi: 24 V DC, ± 20 %
SB4-OR-4CP
| Operating mode | Start/restart disable, relay monitor, |
|---|---|
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Category | Cat. 4 |
| Görev süresi (TM) | 20 a |
| PFHd | 3.5 E-9 |
| B10d | see instruction manuals |
| Type | 4 |
| Diagnostics indicator | 7-segment display |
| Fonksiyon göstergesi | LED kırmızı: OSSD OFF · LED yeşil: OSSD ON · sarı LED: start readiness channel 1 - 4 · LED sarı: switching state (Alıcı) |
| Stability alarm indicator | LED sarı flashing: Indicator lamp channel 1 ... 4 |
| Çalışma gerilimi | 24 V DC, ± 20 % |
| Boşta besleme akımı | max. 500 m A |
| Protection class | no identification ; see instruction manuals |
| Activation current | yak. 7 m A |
| Activation time | 0.4 ... 1.2 s |
| Test input | Reset-input for system test |
| Safety output | 2 relay outputs, force-guided NO-contact |
| Sinyal çıkışı | Output for displaying the switching state of the OSSDs |
| Anahtarlama gerilimi | 10 V ... 250 V AC/DC |
| Anahtarlama akımı | min. 10 m A , max. 6 A AC/DC |
| Switching power | DC: max. 24 VA · AC: max. 230 VA |
| Tepki süresi | 30 ms |
| Functional safety | ISO 13849-1 ; EN 61508 part1-4 |
| Ürün standardı | EN 61496-1 |
| CE conformity | CE |
| UKCA conformity | UKCA |
| UL onayı | c ULus |
| TÜV approval | TÜV |
| Ortam sıcaklığı | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Relative humidity | max. 95 %, non-condensing |
| Shock resistance | see instruction manuals |
| Vibration resistance | see instruction manuals |
| Koruma sınıfı | IP20 |
| Bağlantı | vidalı klemens , lead cross section 0.2 ... 2 mm2 |
| Gövde | Polyamide (PA) |
| Ağırlık | 320 g |
| Yükseklik | 99 mm |
| Genişlik | 45 mm |
| Depth | 112.7 mm |
