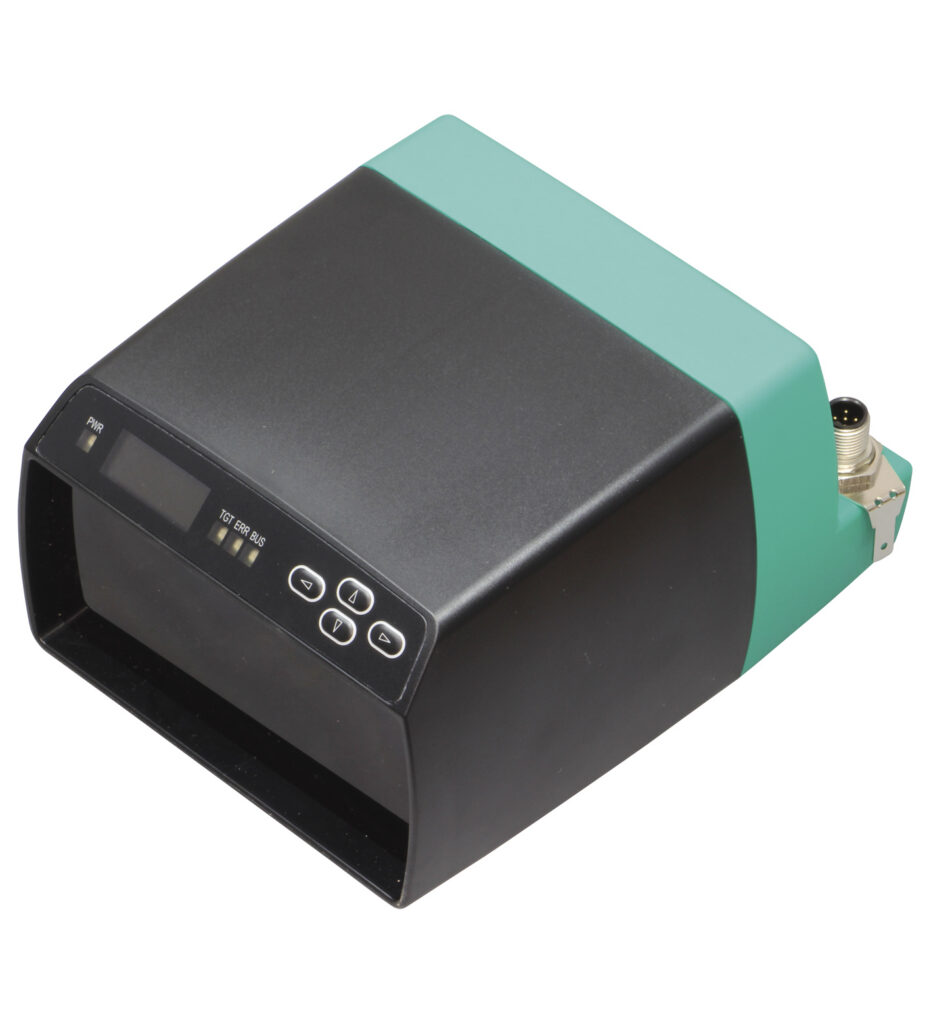

VDM100-50-EIP/G2
| Measuring range | 0.3 ... 50 m |
|---|---|
| Reference target | Foil reflector 500 mm x 500 mm |
| Işık kaynağı | laser diode |
| Note | VISIBLE AND INVISIBLE LASER RADIATION , DO NOT STARE INTO BEAM |
| Laser class | Measuring laser: 1 · Alignment laser: 2 |
Distance sensor
- Measuring method PRT (Pulse Ranging Technology)
- Non-contact precision measurement
- Ultra-fast data acquisition
- Active dynamic control
- Modern lightweight design, extremely robust
- Ether Net/IP
Distance sensor with Ether Net/IP-Interface, Measuring method PRT (Pulse Ranging Technology), Non-contact precision measurement, Ultra-fast data acquisition, Active dynamic control, Modern lightweight design, extremely robust
VDM100-50-EIP/G2
| Measuring range | 0.3 ... 50 m |
|---|---|
| Reference target | Foil reflector 500 mm x 500 mm |
| Işık kaynağı | laser diode |
| Note | VISIBLE AND INVISIBLE LASER RADIATION , DO NOT STARE INTO BEAM |
| Laser class | Measuring laser: 1 · Alignment laser: 2 |
| Wave Uzunluk | Measuring laser: 905 nm · Alignment laser: 660 nm |
| Beam divergence | Measuring laser: 2 mrad · Alignment laser: 1 mrad |
| Pulse Uzunluk | Measuring laser: 4 ns |
| Repetition rate | Measuring laser: 20 k Hz |
| Maximum optical power output | Alignment laser: 0.6 m W |
| max. pulse energy | Measuring laser: 12 n J |
| Measuring method | Pulse Ranging Technology (PRT) |
| Max. Motion velocity | 15 m/s |
| Alignment aid | Laser pointer |
| Life span | > 100000 h |
| Işık noktası çapı | < 15 cm at 50 m |
| Ortam ışığı limiti | > 100000 Lux |
| Resolution | 0.1 mm , ayarlanabilir |
| Temperature influence | 0.03 mm/K |
| MTTFd | 120 a |
| Görev süresi (TM) | 20 a |
| Tanı kapsamı (DC) | 0 % |
| Diagnostics indicator | 3 LEDs Bağlantı status: Link, speed, activity |
| Fonksiyon göstergesi | 4 LEDs |
| Kumanda elemanları | Control panel (4 membrane keys) for setting parameters status |
| Parameterization indicator | Illuminated display for displaying measured values and parameterization |
| Çalışma gerilimi | 18 ... 30 V DC |
| Boşta besleme akımı | 250 m A (18 V) ... 150 m A (30 V) |
| Protection class | III (Çalışma gerilimi 50 V) |
| Time delay before availability | < 10 s |
| Interface type | Ether Net/IP |
| Read out rate | 1000/s @ 100 Mbit/s |
| Input/Çıkış tipi | 2 PNP inputs/outputs, independent configuration, kısa devre korumalı, ters polarite korumalı |
| Switching threshold | low: Ue < 6 V, · high: Ue > 16 V |
| Anahtarlama akımı | 200 m A per output |
| Ürün standardı | EN 60947-5-2 |
| Laser safety | IEC 60825-1:2007 |
| Measured value output | 1 ms |
| Average data age | 3 ms , 6 ms , 12 ms , 25 ms , 50 ms , ayarlanabilir |
| Offset | max. 2 mm (between two devices) |
| Repeat accuracy | < 0.5 mm |
| EAC conformity | TR CU 020/2011 |
| UL onayı | c ULus Listed, Sınıf 2 güç kaynağı, Type 1 enclosure |
| FDA approval | IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 |
| Ortam sıcaklığı | -10 ... 50 °C (14 ... 122 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Relative humidity | 95 % , no moisture condensation |
| Koruma sınıfı | IP65 |
| Bağlantı | 4-pin, M12x1 connector, standard (supply) , · 4-pin, M12x1 socket, D-coded (LAN) , · 8-pin, M12x1 connector, service |
| Gövde | ABS / PC |
| Optik yüzey | PMMA , hard coated |
| Ağırlık | yak. 700 g |
| Yükseklik | 100 mm |
| Genişlik | 140 mm |
| Uzunluk | 170 mm |
