Pepperl+Fuchs
IO-Link
ICA-16DIO-G60AL-IO
| UL File Number | E223772 |
|---|---|
| MTTFd | 2111 a |
| LED UAUX | yeşil: Actuator supply voltage OK · kırmızı: Actuator supply voltage < 18 V |
| LED IO-Link | yeşil: module is switched on, no communication · Flashing yeşil: communication OK · kırmızı: signal line overload |
| LED A | Orange: status indicator channel A · kırmızı: peripheral error |

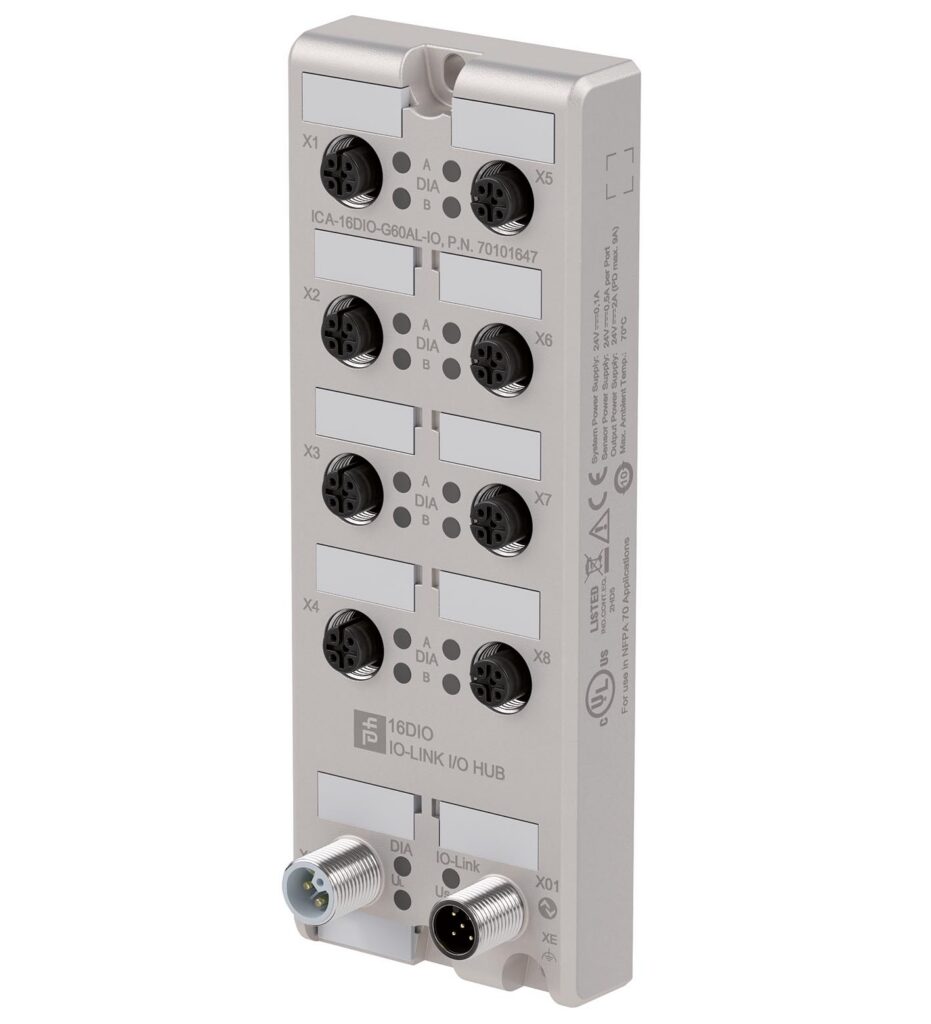

ICA-16DIO-G60AL-IO I/O hub
- Sturdy metallic Gövde
- IO-link interface for service and process data
- 16 digital inputs/outputs can be configured
- Logic level can be configured per port
- Filter time can be configured per port
- Pulse extension can be configured per port
I/O hub with IO-Link interface for 16 digital inputs/outputs
ICA-16DIO-G60AL-IO
| UL File Number | E223772 |
|---|---|
| MTTFd | 2111 a |
| LED UAUX | yeşil: Actuator supply voltage OK · kırmızı: Actuator supply voltage < 18 V |
| LED IO-Link | yeşil: module is switched on, no communication · Flashing yeşil: communication OK · kırmızı: signal line overload |
| LED A | Orange: status indicator channel A · kırmızı: peripheral error |
| LED B | beyaz: status indicator channel B · kırmızı: peripheral error |
| LED US | yeşil: system/sensor supply voltage OK · kırmızı: system/sensor supply voltage < 18 V · Flashing kırmızı: sensor supply voltage overload |
| Rated Çalışma gerilimi | 18 ... 30 V |
| Nominal voltage | 24 V DC |
| Nominal current | 16 A |
| Current consumption | typ. 80 m A |
| Current loading capacity | max. 16 A per module (for UL applications, max. 9 A) |
| Interface type | IO-Link |
| IO-Link revision | 1.1 |
| Device profile | Identification and Diagnosis - I&D |
| Device ID | 0x0F0203 (983555) |
| Transfer rate | COM3 (230.4 kbits/s) |
| Min. cycle time | 2 ms |
| Process data Genişlik | Input 4 Byte · Output 4 Byte |
| SIO mode support | yok |
| Compatible master port type | A |
| Number/Type | 16 digital inputs/outputs, configurable · Inputs: 2-, 3-, 4 telli PNP, DC, supply from US · Outputs: 2 telli PNP, DC, supply from UL · No galvanic isolation between US and UL · kısa devre korumalı |
| Sensor supply | max. 500 m A per port (X1 - X8) |
| Output current | max. 2 A per channel (X1 - X8) / 4 A per port · max. 9 A per module |
| Directive 2014/30/EU | EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | Type 1 according to IEC 61131-2 |
| Emitted interference | EN 61000-6-2:2005 |
| Noise immunity | EN 61000-6-4:2007+A1:2011 |
| Shock resistance | EN 61131-2:2004 |
| Ortam sıcaklığı | -20 ... 70 °C (-4 ... 158 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 2000 m |
| Shock and impact resistance | 50 g, 11 ms, all axes |
| Vibration resistance | 15 g / 5 ... 500 Hz |
| Pollution degree | 3 |
| Bağlantı | Power Supply M12, L-coded · IO-Link M12, A-coded · Inputs/Outputs M12, A-coded |
| Contacts | Cu Sn, gold-plated · Cu Ni, gold-plated |
| Gövde | Diecast zinc |
| Plastic parts | PA |
| Seal | FKM |
| Ağırlık | 400 g |
| Yükseklik | 200 mm |
| Genişlik | 59.6 mm |
| Uzunluk | 21 mm |
| Yapı tipi | Field Gövde |
