Pepperl+Fuchs
IO-Link

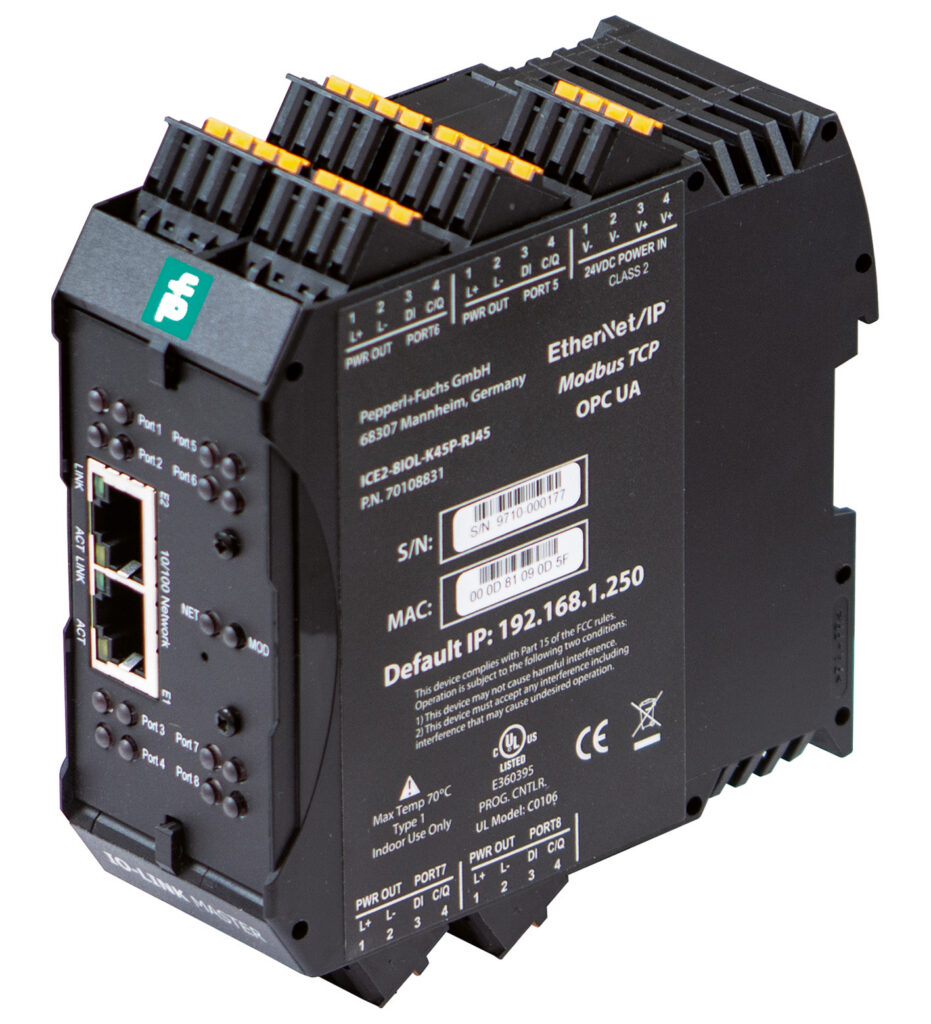

ICE2-8IOL-K45P-RJ45
| UL File Number | E360395 |
|---|---|
| LED indication | see manual |
| Rated Çalışma gerilimi | 18 ... 30 V DC |
| General information | Redundant power |
| Nominal voltage | 24 V DC |
IO-Link master
- Web-based configuration of module and IO-Link devices
- Integrated IODD storage for more than 100 IODDs
- Downloadable module configuration
- Ether Net/IP, Modbus/TCP and OPC UA support
- Pluggable push-in connectors
Ether Net/IP IO-Link master with 8 inputs/outputs, DIN rail, push-in connectors
ICE2-8IOL-K45P-RJ45
| UL File Number | E360395 |
|---|---|
| LED indication | see manual |
| Rated Çalışma gerilimi | 18 ... 30 V DC |
| General information | Redundant power |
| Nominal voltage | 24 V DC |
| Nominal current | 3.7 A |
| Current consumption | typ. 155 m A |
| Current loading capacity | Total current 3.2 A per module |
| Interface type | Industrial Ethernet |
| Physical | RJ45 |
| Protocol | Ether Net/IP + Modbus TCP + OPC UA + MQTT (including Sparkplug B support) · Modbus max PDI: 33 times / sec · OPC UA max PDI update rate: 20 times / sec · MQTT max PDI update rate: 10 times / sec |
| Transfer rate | 10/100 Mbps |
| Number/Type | 8 x IO-Link Class A (X1 - X8) · Configurable as: · Max. 8 IO-Link and 8 digital inputs · Max. 16 digital inputs · Max. 8 digital inputs and 8 digital outputs · kısa devre korumalı |
| Sensor supply | max. 200 m A per port via L+ (pin 1) |
| Output current | max. 200 m A per port Via C/Q (pin 4) |
| Directive 2014/30/EU | EN 61000-6-2 , EN 61000-6-4 |
| Koruma sınıfı | EN 60529 |
| Fieldbus standard | Type 1 according to IEC 61131-2, EN 61131-9 |
| Electrical safety | CSA C22.2 No. 61010-1-12 / CSA C22.2 No. 61010-1-201 · UL 61010-1 / UL 61010-1-201 |
| Emitted interference | EN 61000-6-4, FCC Part 15 Subpart B, ICES-001, AS/NZS CISPR 11 |
| Noise immunity | EN 61000-6-2 , EN 61131-2 , EN 61131-9 |
| Shock resistance | EN 60068-2-27 |
| Ortam sıcaklığı | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 2000 m |
| Shock and impact resistance | 15g, 11ms, half-sine |
| Vibration resistance | 5-8Hz, 3.5mm displacement, 8.4-150Hz, 1.0g acceleration |
| Bağlantı | Power Supply push-in connector · Fieldbus RJ45 · Inputs/Outputs push-in connectors |
| Gövde | Polyamide, UL94V-0 |
| Ağırlık | 250 g |
| Yükseklik | 118.2 mm |
| Genişlik | 45.2 mm |
| Uzunluk | 113.6 mm |
| Yapı tipi | Cabinet module |
| Mounting | DIN mounting rail |
