Pepperl+Fuchs
IO-Link

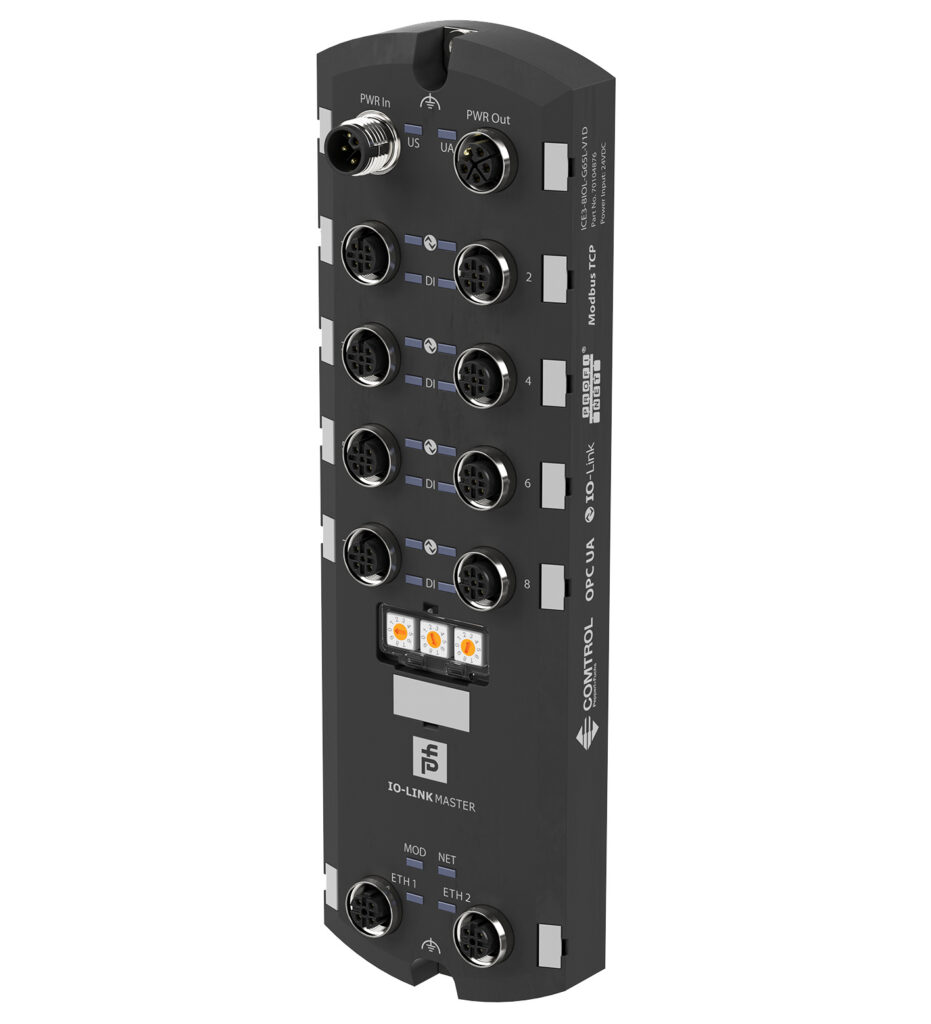

ICE3-8IOL-G65L-V1D
| UL File Number | E360395 |
|---|---|
| LED indication | see manual |
| Rotary switch | Setting the IP address |
| Rated Çalışma gerilimi | 20 ... 30 V DC |
| Nominal voltage | 24 V DC |
IO-Link master
- PROFINET IO, Modbus/TCP and OPC UA Support
- Web-based configuration of module and IO-Link devices
- Integrated IODD storage for more than 100 IODDs
- Downloadable module configuration
- M12 L-coded power connector
PROFINET IO IO-Link master with 8 inputs/outputs
ICE3-8IOL-G65L-V1D
| UL File Number | E360395 |
|---|---|
| LED indication | see manual |
| Rotary switch | Setting the IP address |
| Rated Çalışma gerilimi | 20 ... 30 V DC |
| Nominal voltage | 24 V DC |
| Current consumption | typ. 120 m A |
| Current loading capacity | Max. 2 x 16 A per module · (Loop-through current via L-coded power supply) · Total current: max. 6.7 A per module |
| Galvanic isolation | between US and UA |
| Interface type | Industrial Ethernet |
| Physical | M12, D-coded |
| Protocol | PROFINET IO with media redundancy protocol (MRP) + Modbus TCP + OPC UA + MQTT (including Sparkplug B support) · Modbus max PDI: 33 times / sec · OPC UA max PDI update rate: 20 times / sec · MQTT max PDI update rate: 10 times / sec |
| Transfer rate | 10/100 Mbps |
| Number/Type | 8 x IO-Link Class A (X1 - X8) · Configurable as: · Max. 8 IO-Link and 8 digital inputs · Max. 16 digital inputs · Max. 8 digital inputs and 8 digital outputs · kısa devre korumalı |
| Sensor supply | Port 1: max. 1.6 A Via L+ (pin 1) · Port 3: max. 1 A via L+ (pin 1) · Ports 2 and 4 – 8: max. 500 m A per port via L+ (pin 1) |
| Output current | max. 200 m A Per port via C/Q (pin 4) |
| Directive 2014/30/EU | EN 61000-6-2 , EN 61000-6-4 |
| Koruma sınıfı | EN 60529 |
| Fieldbus standard | Type 1 according to IEC 61131-2, EN 61131-9 |
| Electrical safety | CSA C22.2 No. 61010-1-12 · UL 61010-1, IEC 61010-2-201 |
| Emitted interference | EN 61000-6-4, FCC Part 15 Subpart B, ICES-001, AS/NZS CISPR 11 |
| Noise immunity | EN 61000-6-2 , EN 61131-2 , EN 61131-9 |
| Shock resistance | EN 60068-2-27 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 2000 m |
| Shock and impact resistance | 15g, 11ms, half-sine |
| Bağlantı | Power Supply M12, L-coded · Fieldbus M12, D-coded · Inputs/Outputs M12, A-coded |
| Gövde | Molded Polyamide 66 |
| Ağırlık | 454 g |
| Sıkma torku, bağlama vidaları | 8 Nm |
| Sıkma torku, Kablo gland | 0.6 Nm |
| Yükseklik | 212 mm |
| Genişlik | 65 mm |
| Uzunluk | 29.8 mm |
| Yapı tipi | Field Gövde |
