Pepperl+Fuchs
IO-Link

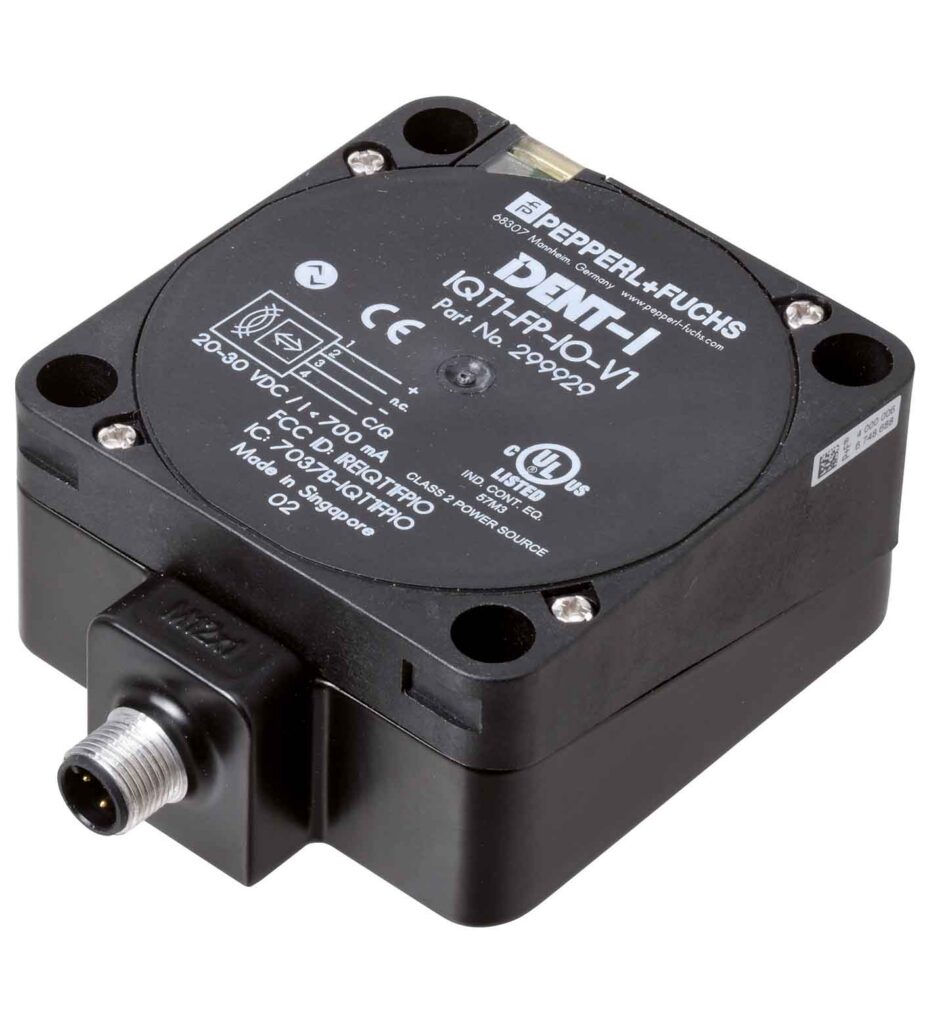

IQT1-FP-IO-V1
| Operating frequency | 13.56 MHz |
|---|---|
| Transfer rate | 26 k Bit/s |
| Read distance | 0 ... 130 mm |
| Write distance | 0 ... 130 mm |
| Genişlik | max. 100 mm |
RFID read/write device
- Operating frequency 13.56 MHz
- IO-Link interface
- Conforms to ISO 15693
- Suitable for FRAM transponder
- LEDs as Fonksiyon göstergesis
- Bağlantı via V1 (M12 x 1) plug Bağlantı
- Koruma sınıfı IP67
- For Bağlantı to IO-Link master
HF RFID read/write device with IO-Link in accordance with ISO 15693
IQT1-FP-IO-V1
| Operating frequency | 13.56 MHz |
|---|---|
| Transfer rate | 26 k Bit/s |
| Read distance | 0 ... 130 mm |
| Write distance | 0 ... 130 mm |
| Genişlik | max. 100 mm |
| MTBF | 140 a (Operation at +40 °C) |
| LED kırmızı/yeşil | yeşil: power on · Flashing yeşil: IO-Link communication · Flashing kırmızı/yeşil: IO-Link communication interrupted |
| LED mavi/sarı | mavi: Write/read attempt performed · sarı: Read/write tag detected |
| Rated Çalışma gerilimi | 20 ... 30 V DC , ripple 10 %SS |
| Boşta besleme akımı | ≤ 70 m A (at 24 V DC) |
| Power consumption | ≤ 2 W |
| Interface type | IO-Link |
| IO-Link revision | 1.1 |
| Process data | Input 32 Byte · Output 32 Byte |
| Vendor ID | 1 (0x0001) |
| Device ID | 4194561 (0x400101) |
| Data transfer rate | COM3 (230.4 kbits/s) |
| Min. cycle time | 4 ms |
| SIO mode support | yok |
| Compatible master port type | Class A · Class B |
| Directive 2014/53/EU | EN 301489-1 · EN 301489-3 · EN 300330 · EN 62368-1 · EN 50364 |
| Directive 2011/65/EU (Ro HS) | IEC/EN 63000 |
| Koruma sınıfı | EN 60529 |
| Communication interface | IEC 61131-9 / IO-Link V1.1.2 |
| RFID | ISO/IEC 15693-2 · ISO/IEC 15693-3 · ISO/IEC 18000-3 |
| UL onayı | E87056 · c ULus Listed, Sınıf 2 güç kaynağı, Type 1 enclosure |
| FCC approval | This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: · (1) This device may not cause harmful interference, and · (2) This device must accept any interference received, including interference that may cause undesired operation. · Caution: · Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. |
| IC approval | This device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions: · (1) this device may not cause interference, and · (2) this device must accept any interference, including interference that may cause undesired operation of the device. · · Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : · (1) l'appareil ne doit pas produire de brouillage, et · (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. |
| MIC approval | AC-21098 |
| Radio approval | USA: FCC IREIQT1FPIO · Canada: 7037A-IQT1FPIO |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Bağlantı | connector M12 x 1 |
| Gövde | PBT |
| Base | diecast aluminum |
| Encapsulation compound | CY 221/HY 2966 |
| Distance between two heads | ≥ 150 mm |
| Ağırlık | yak. 380 g |
| Yükseklik | 40 mm |
| Uzunluk | 108.5 mm |
