Pepperl+Fuchs
Pozisyonlama Sistemleri
PGV-CC25-00001-00001-SET
| Start marker number | 1 |
|---|---|
| Number | 1 |
| Uzunluk | 1 m per control code number |
| Genişlik | 25 mm (1 row version) |
| Operating temperature | -40 ... 100 °C (-40 ... 212 °F) |

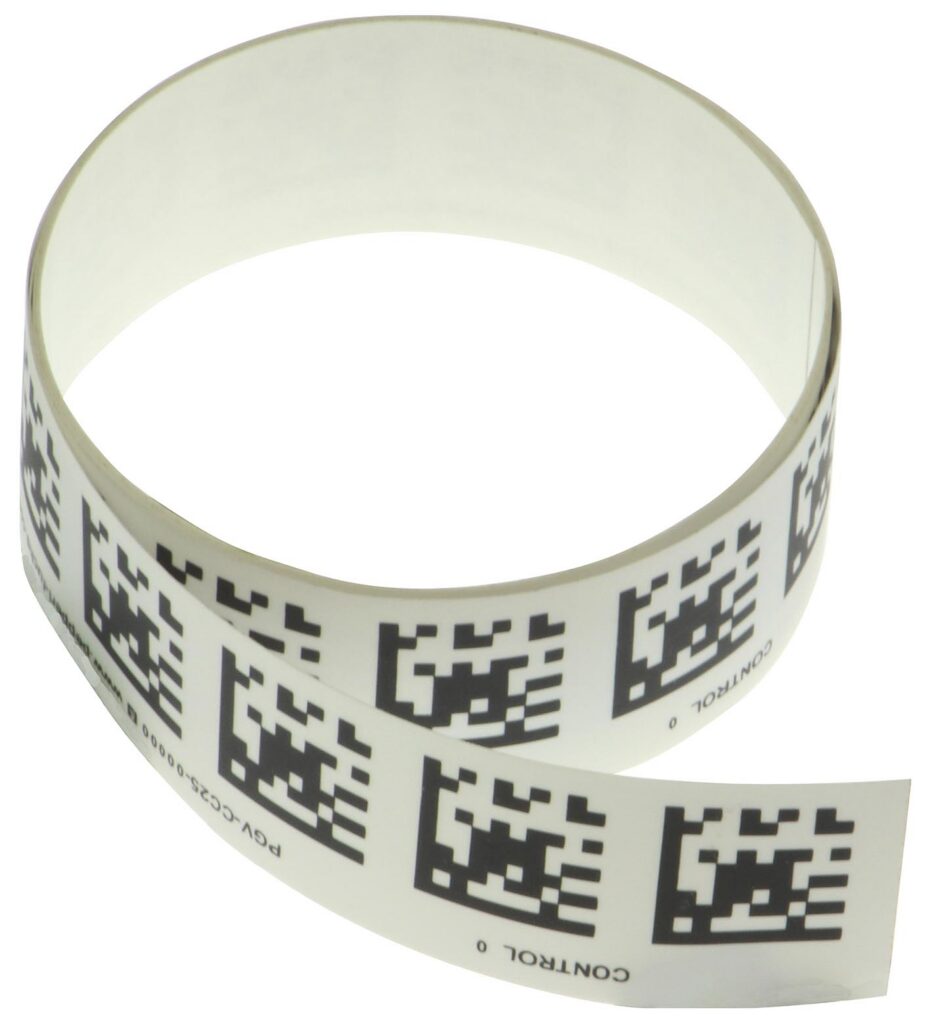

Control code tape
- High chemical resistance
- Low weight
- Self-adhesive mounting
- High temperature resistance
- High mechanical stability
Control code tape for PGV System, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, High mechanical stability
PGV-CC25-00001-00001-SET
| Start marker number | 1 |
|---|---|
| Number | 1 |
| Uzunluk | 1 m per control code number |
| Genişlik | 25 mm (1 row version) |
| Operating temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Montaj temperature | 10 ... 40 °C (50 ... 104 °F) |
| Environmental resistance | UV radiation · Humidity · Salt spray (150 h / 5%) |
| Chemical resistance | Oils · Grease · Fuels · Aliphatic solvents · Weak acids |
| Malzeme thickness | 150 µm |
| Malzeme | polyester laminate |
| Surface | polyester , matte |
| Ağırlık | 6.3 g / m |
| Tensile strength | ≥ 150 N |
| Storage | Maximum 2 years under normal storage conditions. |
| Adhesive | Acrylate-based adhesive ; curing 72 h |
| Adhesive strength | Average values (FTM2) · Aluminum : 24 N / 25 mm · High grade stainless steel : 25 N / 25 mm · ABS : 22 N / 25 mm · PP : 18 N / 25 mm · HD-PE : 12 N / 25 mm · LD-PE : 12 N / 25 mm |
