Pepperl+Fuchs
Pozisyonlama Sistemleri

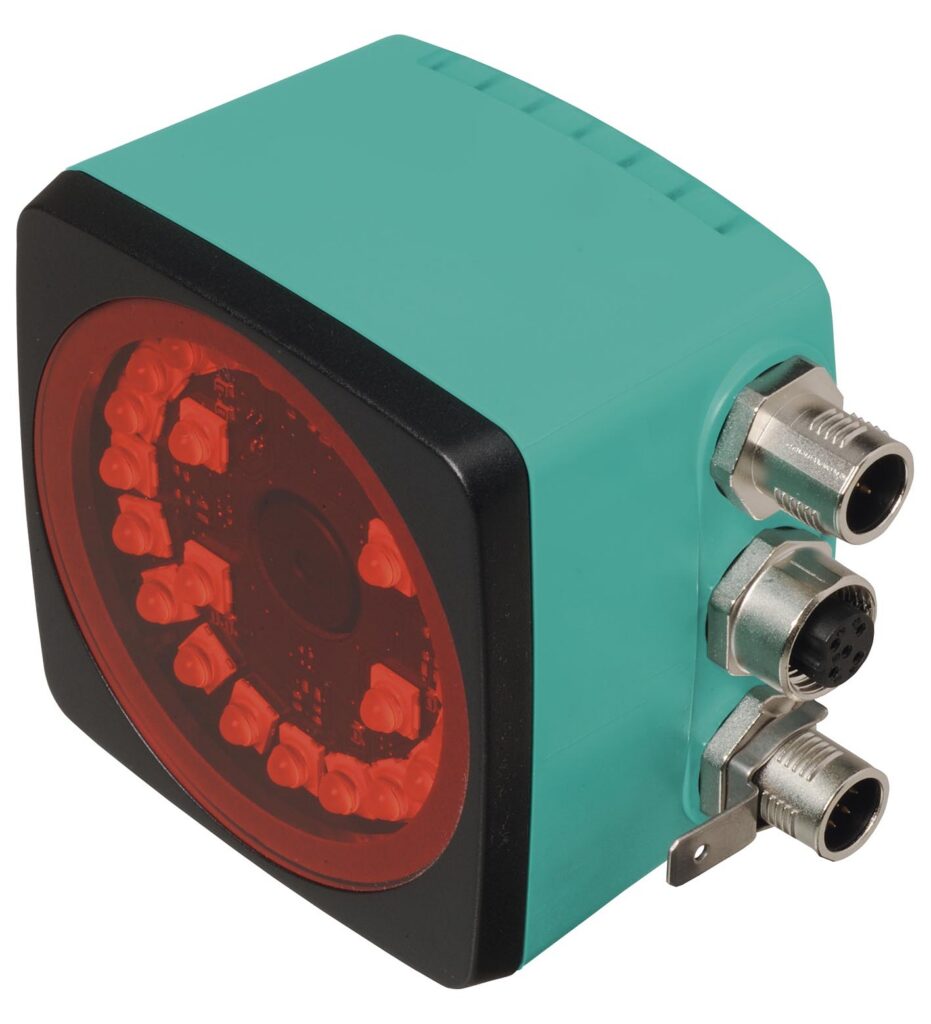

PCV100-F200-B6-V15B-6011
| [{"label" | "Passage speed","value":"≤ 6 m/s"},{"label":"Measuring Uzunluk","value":"max. 10000 m"},{"label":"Işık tipi","value":"Integrated LED lightning (kırmızı)"},{"label":"Scan rate","value":"40 s-1"},{"label":"Read distance","value":"100 mm"},{"label":"Reading field","value":"60 mm x 35 mm"},{"label":"Ortam ışığı limiti","value":"100000 Lux"},{"label":"Type","value":"CMOS , Global shutter"},{"label":"Clock pulse frequency","value":"600 MHz"},{"label":"Speed of computation","value":"4800 MIPS"},{"label":"Digital resolution","value":"32 Bit"},{"label":"MTTFd","value":"102 a"},{"label":"Görev süresi (TM)","value":"20 a"},{"label":"Tanı kapsamı (DC)","value":"0 %"},{"label":"LED indication","value":"7 LEDs (communication, alignment aid, status information)"},{"label":"Çalışma gerilimi","value":"15 ... 30 V DC , PELV"},{"label":"Boşta besleme akımı","value":"max. 400 m A"},{"label":"Power consumption","value":"6 W"},{"label":"Interface type","value":"PROFIBUS DP V0"},{"label":"Protocol","value":"PROFIBUS DP acc. to EN 50170"},{"label":"Transfer rate","value":"9.6; 19.2; 93.75; 187.5; 500; 1500 k Bit/s · 3; 6; 12 Mbit/s self-synchronizing"},{"label":"Input type","value":"1 funtion input · 0-level: -UBor unwired · 1-level: +8 V ... +UB , programmable"},{"label":"Input impedance","value":"≥ 27 kΩ"},{"label":"Çıkış tipi","value":"1 to 3 switch outputs , PNP , programmable , kısa devre korumalı"},{"label":"Anahtarlama gerilimi","value":"Çalışma gerilimi"},{"label":"Anahtarlama akımı","value":"150 m A each output"},{"label":"Photobiological safety","value":"exempt group according to EN 62471:2008"},{"label":"Emitted interference","value":"EN 61000-6-4:2007+A1:2011"},{"label":"Noise immunity","value":"EN 61000-6-2:2005"},{"label":"Shock resistance","value":"EN 60068-2-27:2009"},{"label":"Vibration resistance","value":"EN 60068-2-6:2008"},{"label":"CE conformity","value":"CE"},{"label":"UKCA conformity","value":"UKCA"},{"label":"UL onayı","value":"c ULus Listed, General Purpose, Sınıf 2 güç kaynağı, Type 1 enclosure"},{"label":"CCC onayı","value":"CCC onayı / marking not required for products rated ≤36 V"},{"label":"Operating temperature","value":"0 ... 60 °C (32 ... 140 °F) , -20 ... 60 °C (-4 ... 140 °F) (non-condensing; prevent icing on the lens!)"},{"label":"Storage temperature","value":"-20 ... 85 °C (-4 ... 185 °F)"},{"label":"Relative humidity","value":"90 % , non-condensing"},{"label":"Bağlantı tipi","value":"8-pin, M12x1 connector, standard (supply+IO) · 5-pin, M12x1 socket, B-coded (Bus Out) · 5-pin, M12x1 connector, B-coded (Bus In)"},{"label":"Koruma sınıfı","value":"IP67"},{"label":"Gövde","value":"PC/ABS"},{"label":"Ağırlık","value":"yak. 200 g"},{"label":"Yükseklik","value":"70 mm"},{"label":"Genişlik","value":"70 mm"},{"label":"Depth","value":"50 mm"},{"label":"X resolution (protocol)","value":"1 mm"},{"label":"Y resolution (protocol)","value":"1 mm"},{"label":"Code tape orientation","value":"0 °"},{"label":"Address","value":"0"},{"label":""No Position" X value","value":"0"},{"label":""No Position" Y value","value":"0"},{"label":""No Position" speed value","value":"127"},{"label":"Overspeed threshold (protocol)","value":"12.5 m/s"},{"label":"X value in case of error","value":"Error number"},{"label":"Y value in case of error","value":"Error number"},{"label":"Speed value in case of error","value":"Error number"},{"label":"Code tape Genişlik","value":"dual-row"},{"label":"X positon offset","value":"0 mm"},{"label":"Function input/output","value":"inactive"}] |
|---|
Optical reading head
- Non-contact positioning on Data Matrix code tape
- Mechanically rugged: no wearing parts, long operating life, maintenance-free
- High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines.
- Travel ranges en fazla 10 km, in X and Y direction
- PROFIBUS interface
Read head for incident light positioning system, Non-contact positioning on Data Matrix code tape, Mechanically rugged: no wearing parts, long operating life, maintenance-free, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Travel ranges en fazla 10 km, in X and Y direction, PROFIBUS interface
PCV100-F200-B6-V15B-6011
| [{"label" | "Passage speed","value":"≤ 6 m/s"},{"label":"Measuring Uzunluk","value":"max. 10000 m"},{"label":"Işık tipi","value":"Integrated LED lightning (kırmızı)"},{"label":"Scan rate","value":"40 s-1"},{"label":"Read distance","value":"100 mm"},{"label":"Reading field","value":"60 mm x 35 mm"},{"label":"Ortam ışığı limiti","value":"100000 Lux"},{"label":"Type","value":"CMOS , Global shutter"},{"label":"Clock pulse frequency","value":"600 MHz"},{"label":"Speed of computation","value":"4800 MIPS"},{"label":"Digital resolution","value":"32 Bit"},{"label":"MTTFd","value":"102 a"},{"label":"Görev süresi (TM)","value":"20 a"},{"label":"Tanı kapsamı (DC)","value":"0 %"},{"label":"LED indication","value":"7 LEDs (communication, alignment aid, status information)"},{"label":"Çalışma gerilimi","value":"15 ... 30 V DC , PELV"},{"label":"Boşta besleme akımı","value":"max. 400 m A"},{"label":"Power consumption","value":"6 W"},{"label":"Interface type","value":"PROFIBUS DP V0"},{"label":"Protocol","value":"PROFIBUS DP acc. to EN 50170"},{"label":"Transfer rate","value":"9.6; 19.2; 93.75; 187.5; 500; 1500 k Bit/s · 3; 6; 12 Mbit/s self-synchronizing"},{"label":"Input type","value":"1 funtion input · 0-level: -UBor unwired · 1-level: +8 V ... +UB , programmable"},{"label":"Input impedance","value":"≥ 27 kΩ"},{"label":"Çıkış tipi","value":"1 to 3 switch outputs , PNP , programmable , kısa devre korumalı"},{"label":"Anahtarlama gerilimi","value":"Çalışma gerilimi"},{"label":"Anahtarlama akımı","value":"150 m A each output"},{"label":"Photobiological safety","value":"exempt group according to EN 62471:2008"},{"label":"Emitted interference","value":"EN 61000-6-4:2007+A1:2011"},{"label":"Noise immunity","value":"EN 61000-6-2:2005"},{"label":"Shock resistance","value":"EN 60068-2-27:2009"},{"label":"Vibration resistance","value":"EN 60068-2-6:2008"},{"label":"CE conformity","value":"CE"},{"label":"UKCA conformity","value":"UKCA"},{"label":"UL onayı","value":"c ULus Listed, General Purpose, Sınıf 2 güç kaynağı, Type 1 enclosure"},{"label":"CCC onayı","value":"CCC onayı / marking not required for products rated ≤36 V"},{"label":"Operating temperature","value":"0 ... 60 °C (32 ... 140 °F) , -20 ... 60 °C (-4 ... 140 °F) (non-condensing; prevent icing on the lens!)"},{"label":"Storage temperature","value":"-20 ... 85 °C (-4 ... 185 °F)"},{"label":"Relative humidity","value":"90 % , non-condensing"},{"label":"Bağlantı tipi","value":"8-pin, M12x1 connector, standard (supply+IO) · 5-pin, M12x1 socket, B-coded (Bus Out) · 5-pin, M12x1 connector, B-coded (Bus In)"},{"label":"Koruma sınıfı","value":"IP67"},{"label":"Gövde","value":"PC/ABS"},{"label":"Ağırlık","value":"yak. 200 g"},{"label":"Yükseklik","value":"70 mm"},{"label":"Genişlik","value":"70 mm"},{"label":"Depth","value":"50 mm"},{"label":"X resolution (protocol)","value":"1 mm"},{"label":"Y resolution (protocol)","value":"1 mm"},{"label":"Code tape orientation","value":"0 °"},{"label":"Address","value":"0"},{"label":""No Position" X value","value":"0"},{"label":""No Position" Y value","value":"0"},{"label":""No Position" speed value","value":"127"},{"label":"Overspeed threshold (protocol)","value":"12.5 m/s"},{"label":"X value in case of error","value":"Error number"},{"label":"Y value in case of error","value":"Error number"},{"label":"Speed value in case of error","value":"Error number"},{"label":"Code tape Genişlik","value":"dual-row"},{"label":"X positon offset","value":"0 mm"},{"label":"Function input/output","value":"inactive"}] |
|---|
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
